PTFE Coated Fiberglass Fabric

PTFE-coated fiberglass fabric for industrial release, heat-sealing separation and equipment lining. Choose double-smooth non-adhesive PGF-S or adhesive-backed PGF-A with a release liner.

  • PTFE release surface helps reduce sticking in heat sealing and lamination
  • PGF-S double-smooth fabric for removable release sheets and covers
  • PGF-A adhesive-backed fabric with a protective release liner for fixed lining
  • 23 standard dimensional options, with thickness and width matched by SKU

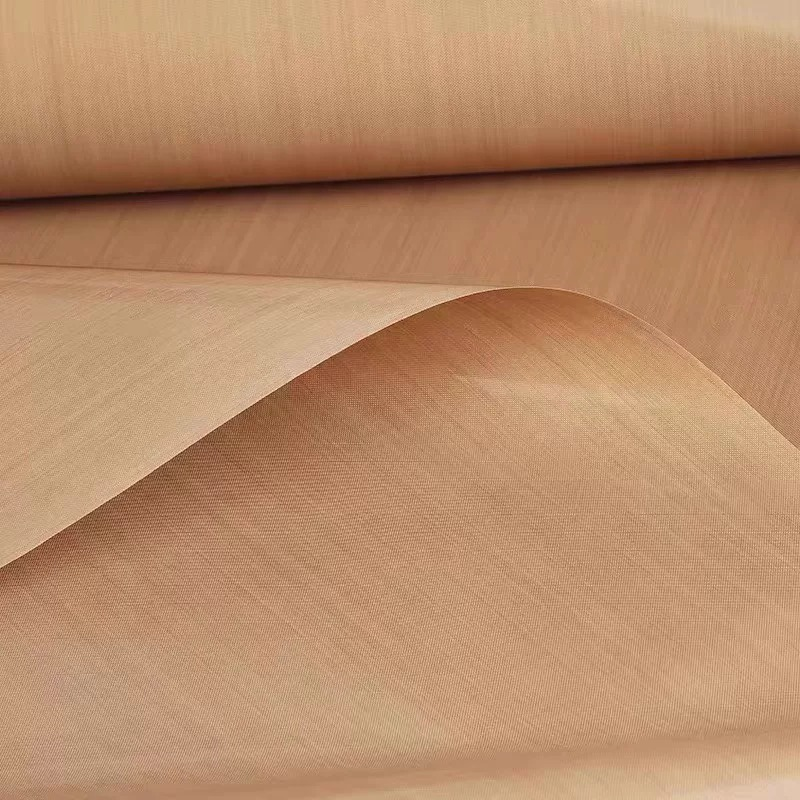

  • Flexible woven construction for cutting, handling and surface cleaning
Request a Quote -> Custom Size ->
Product Overview

PTFE coated fiberglass fabric Supplier

A flexible woven fiberglass base with a PTFE working surface that helps reduce sticking during heat sealing, lamination and industrial processing. PGF-S has smooth release faces on both sides for removable sheets and separation layers. PGF-A has an adhesive backing with a protective release liner for fixed equipment coverings. Select the construction and exact dimensions below, then confirm operating temperature, pressure, contact material and supply format for your application.

Technical Specifications

Product Parameters

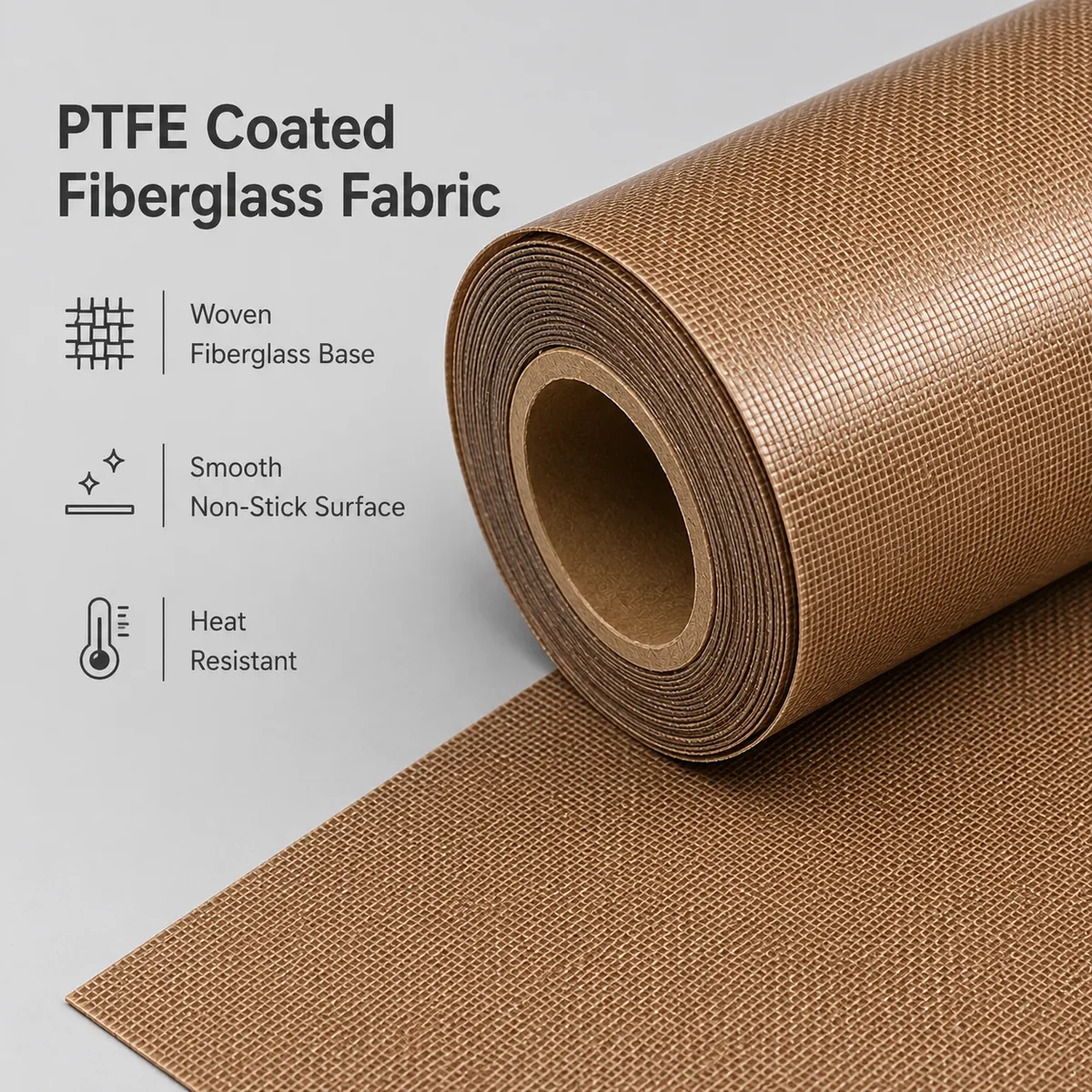

Material Woven fiberglass fabric with PTFE coating
Model Series PGF-S: double-smooth, non-adhesive; PGF-A: adhesive-backed with release liner; PGF-C: custom dimensions
PGF-S Nominal Thickness 0.08, 0.13, 0.15, 0.18, 0.25, 0.35, 0.38, 0.55 and 1.00 mm
PGF-A Nominal Thickness 0.13, 0.18, 0.25, 0.30 and 0.38 mm; confirm whether the stated thickness includes the adhesive
Width Options PGF-S: 1000 or 1250 mm; PGF-A: 1000, 1250 or 1500 mm by listed SKU. Confirm the 1500 mm width before order.
Standard Cut Length 1000 mm for each listed dimensional SKU; roll lengths and custom cuts quoted separately
Working Surface PGF-S: smooth PTFE release faces on both sides. PGF-A: PTFE working face with adhesive on the back.

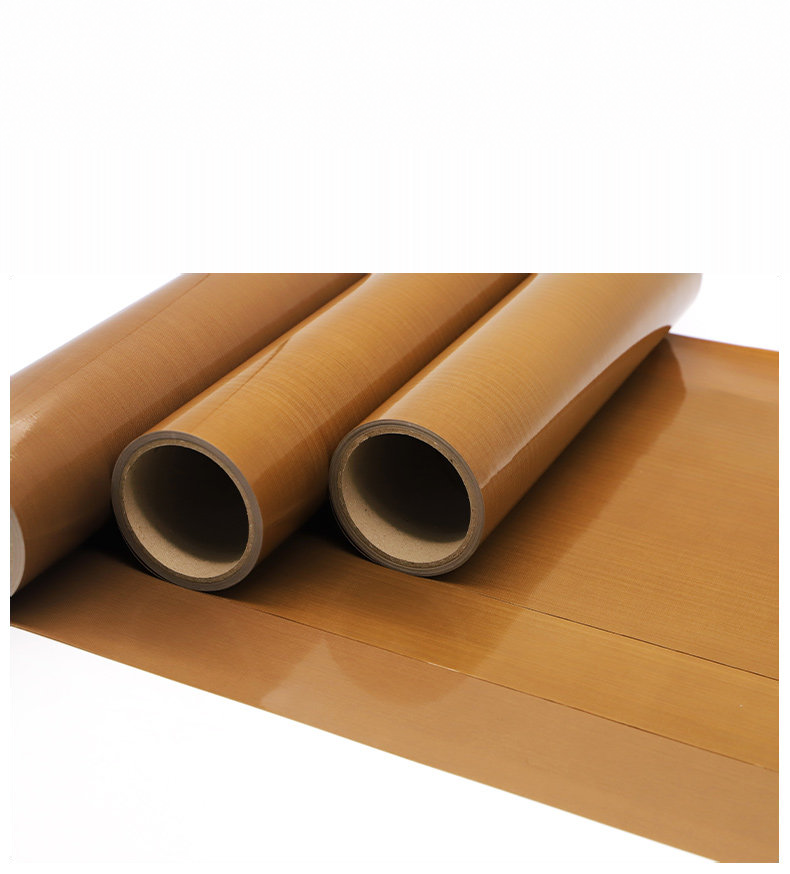

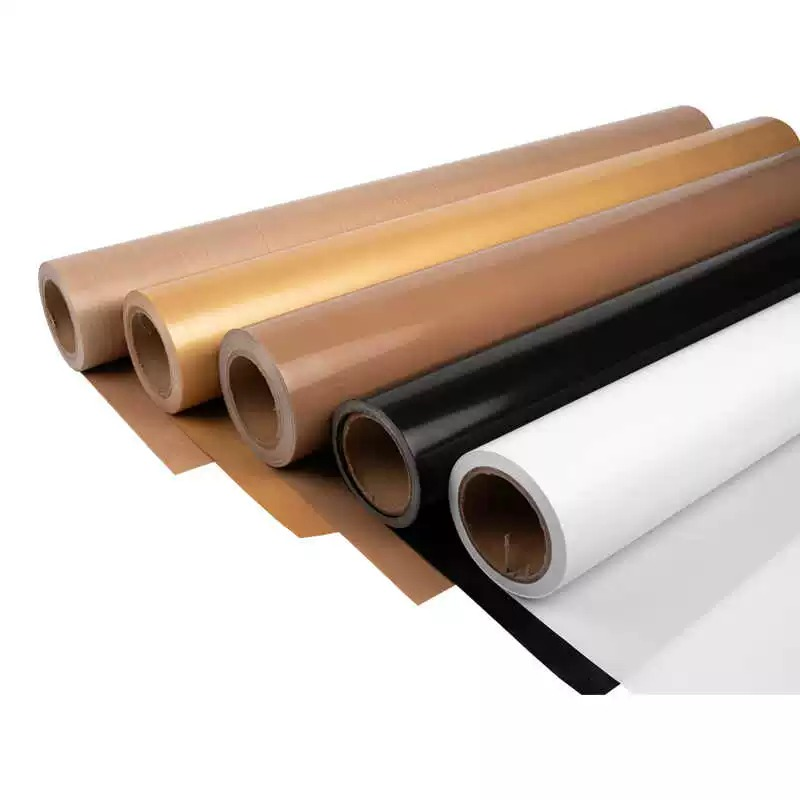

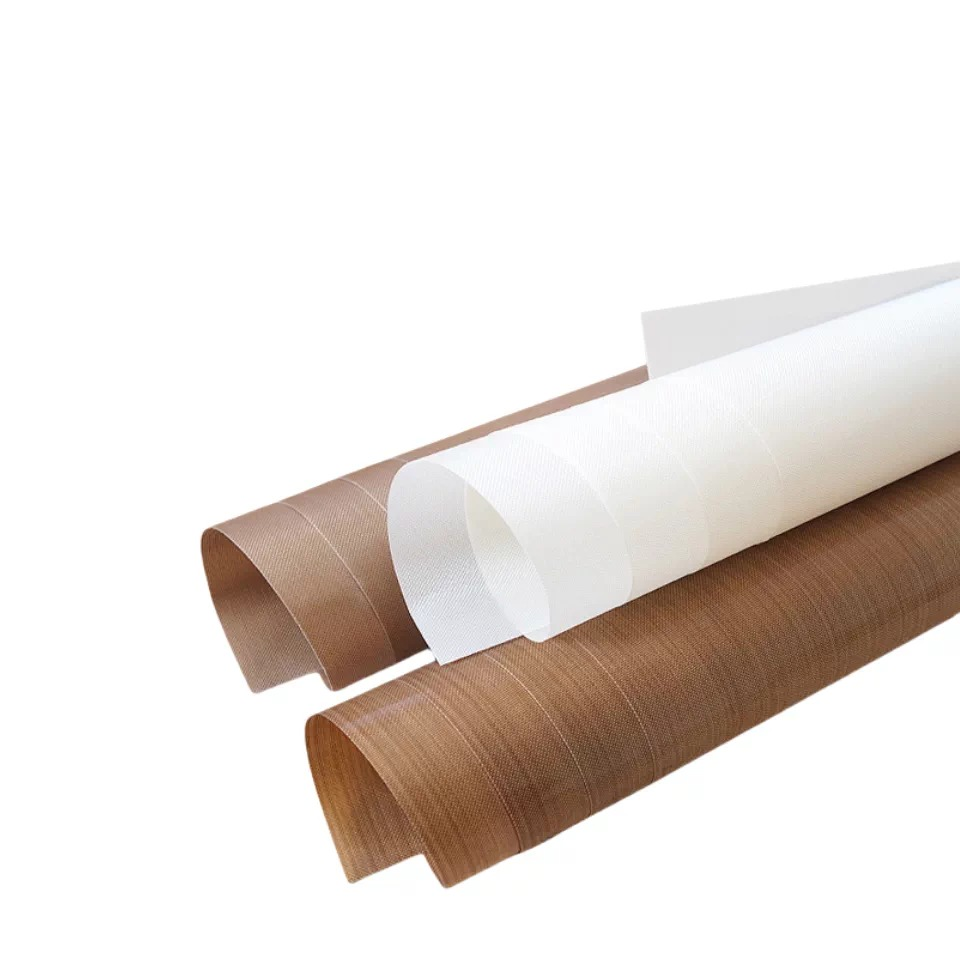

Color Selection Brown, black and white are shown in the photographs; confirm color availability for the selected SKU.
Adhesive Selection Adhesive type and thickness are confirmed for the selected PGF-A construction and working conditions.
Working Temperature Confirm the operating range for the selected fabric construction and adhesive. Provide continuous or intermittent temperature, pressure and contact material.

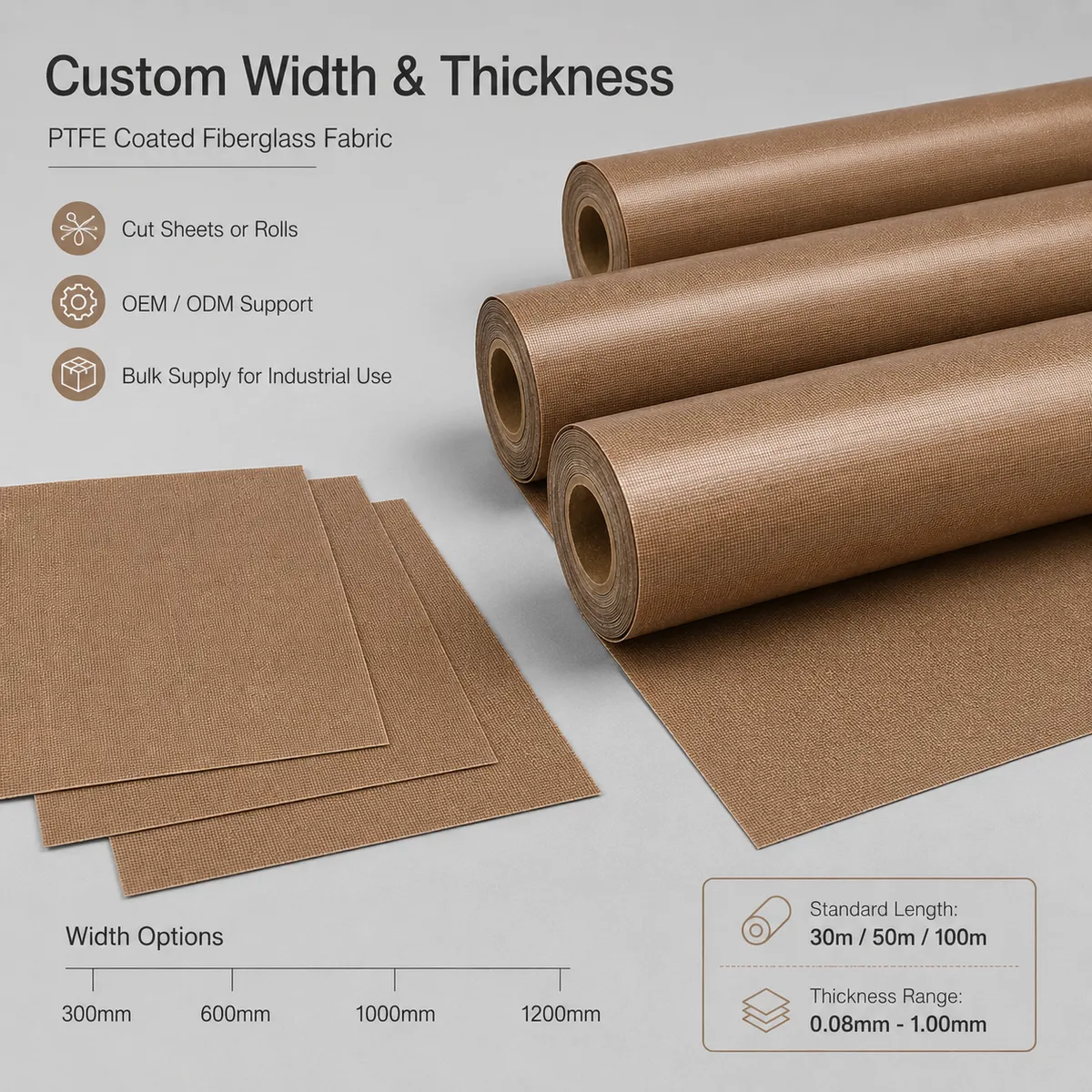

Supply Format Listed 1 m cut lengths; custom sheets, slit widths and roll lengths by quotation
MOQ Confirmed by specification, supply format and order quantity
Packaging Rolls or cut sheets packed to protect the PTFE working surface. Core, packing quantity and shipping format are confirmed with the order.
Models & Available Formats

PGF-S & PGF-A Standard Specifications

Choose from 14 double-smooth non-adhesive specifications and 9 adhesive-backed specifications. Every listed size is a 1 m cut length; custom dimensions and longer rolls are quoted separately.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
PGF-S-T080-W1000-L1000 0.08 mm nominal thickness × 1000 mm width × 1000 mm length; double-smooth, non-adhesive PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-S-T080-W1250-L1000 0.08 mm nominal thickness × 1250 mm width × 1000 mm length; double-smooth, non-adhesive PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-S-T130-W1000-L1000 0.13 mm nominal thickness × 1000 mm width × 1000 mm length; double-smooth, non-adhesive PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-S-T130-W1250-L1000 0.13 mm nominal thickness × 1250 mm width × 1000 mm length; double-smooth, non-adhesive PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-S-T150-W1000-L1000 0.15 mm nominal thickness × 1000 mm width × 1000 mm length; double-smooth, non-adhesive PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-S-T150-W1250-L1000 0.15 mm nominal thickness × 1250 mm width × 1000 mm length; double-smooth, non-adhesive PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-S-T180-W1000-L1000 0.18 mm nominal thickness × 1000 mm width × 1000 mm length; double-smooth, non-adhesive PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-S-T180-W1250-L1000 0.18 mm nominal thickness × 1250 mm width × 1000 mm length; double-smooth, non-adhesive PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-S-T250-W1000-L1000 0.25 mm nominal thickness × 1000 mm width × 1000 mm length; double-smooth, non-adhesive PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-S-T250-W1250-L1000 0.25 mm nominal thickness × 1250 mm width × 1000 mm length; double-smooth, non-adhesive PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-S-T350-W1000-L1000 0.35 mm nominal thickness × 1000 mm width × 1000 mm length; double-smooth, non-adhesive PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-S-T380-W1000-L1000 0.38 mm nominal thickness × 1000 mm width × 1000 mm length; double-smooth, non-adhesive PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-S-T550-W1000-L1000 0.55 mm nominal thickness × 1000 mm width × 1000 mm length; double-smooth, non-adhesive PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-S-T1000-W1000-L1000 1.00 mm nominal thickness × 1000 mm width × 1000 mm length; double-smooth, non-adhesive PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-A-T130-W1000-L1000 0.13 mm nominal thickness × 1000 mm width × 1000 mm length; adhesive-backed with release liner PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-A-T130-W1250-L1000 0.13 mm nominal thickness × 1250 mm width × 1000 mm length; adhesive-backed with release liner PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-A-T180-W1000-L1000 0.18 mm nominal thickness × 1000 mm width × 1000 mm length; adhesive-backed with release liner PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-A-T180-W1250-L1000 0.18 mm nominal thickness × 1250 mm width × 1000 mm length; adhesive-backed with release liner PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-A-T180-W1500-L1000 0.18 mm nominal thickness × 1500 mm width* × 1000 mm length; adhesive-backed with release liner PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-A-T250-W1000-L1000 0.25 mm nominal thickness × 1000 mm width × 1000 mm length; adhesive-backed with release liner PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-A-T250-W1250-L1000 0.25 mm nominal thickness × 1250 mm width × 1000 mm length; adhesive-backed with release liner PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-A-T300-W1000-L1000 0.30 mm nominal thickness × 1000 mm width × 1000 mm length; adhesive-backed with release liner PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-A-T380-W1000-L1000 0.38 mm nominal thickness × 1000 mm width × 1000 mm length; adhesive-backed with release liner PTFE-coated fiberglass fabric 1 m cut length / quote by length Request a Quote
PGF-CUSTOM Custom thickness, width, length or cut outline; specify non-adhesive or adhesive-backed construction PTFE-coated fiberglass fabric Custom cut / slit / roll Request a Quote

Note: *Confirm the 1500 mm width before order. For PGF-A, confirm the adhesive type and whether the nominal thickness includes the adhesive layer. Color, dimensional tolerances, roll length, price, MOQ and delivery schedule are agreed for the selected specification.

Send specification for quotation ->
Applications

Typical Applications

  • Laminating and composite pressing: PGF-S removable release sheets and separation layers

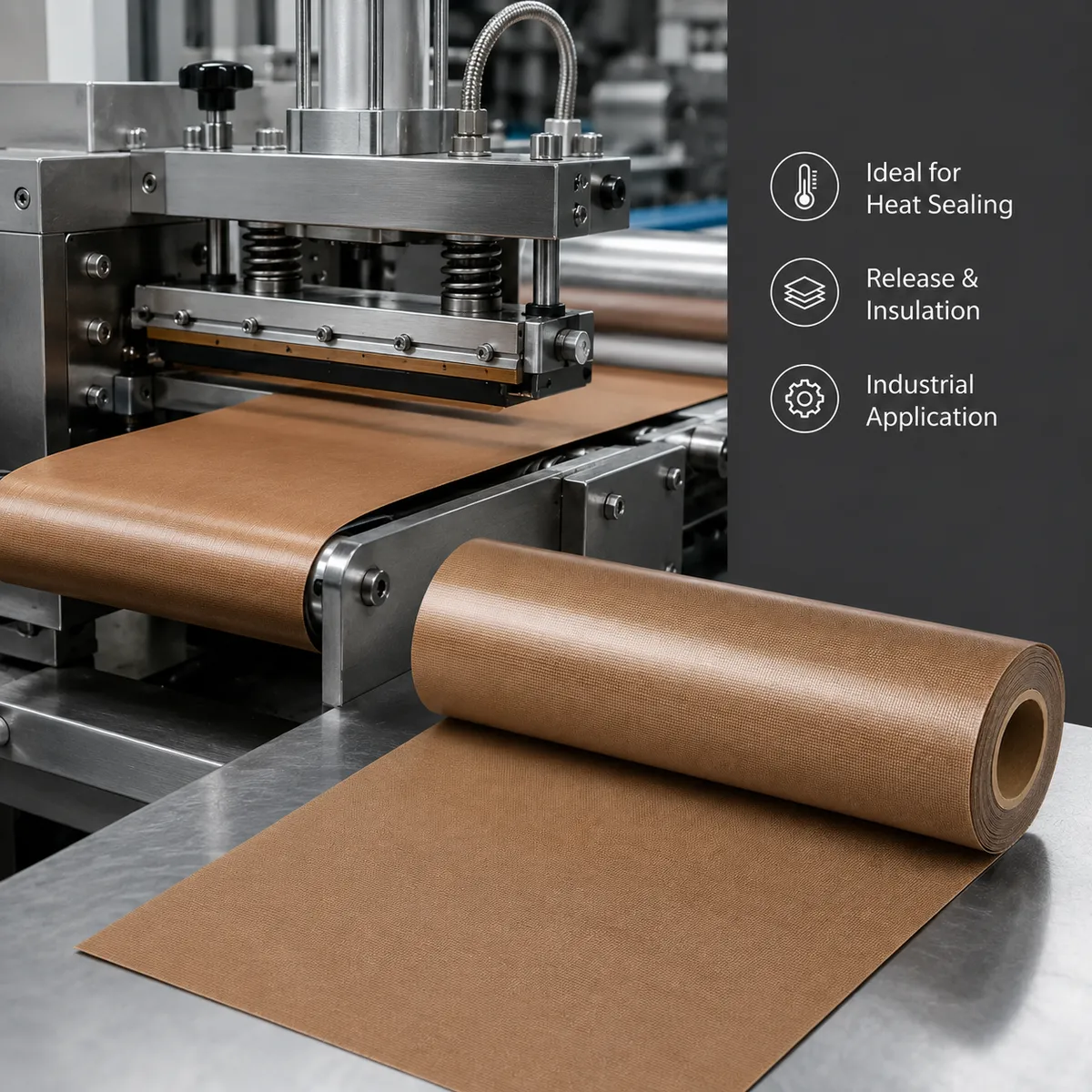

  • Packaging heat sealers: PGF-S replaceable separation sheets or PGF-A fixed non-stick coverings
  • Equipment tables, rollers and guide surfaces: PGF-A adhesive-backed lining with adhesive conditions confirmed
  • Heated workstations and drying equipment: PGF-S removable liners sized to the work area
  • Textile transfer printing and rubber processing: PGF-S release layers selected for the contact material and pressing conditions
Related Applications

Related Applications

View All Applications ->
PTFE vs Silicone Coated Fiberglass Fabric
Customization Options

PTFE Coated Fiberglass Fabric Ordering Options

Send Requirement ->

Send the PGF-S or PGF-A SKU, target dimensions, quantity and supply format. For custom cuts or rolls, include the outline or required roll length and working conditions.

  • Construction PGF-S removable double-smooth fabric or PGF-A adhesive-backed lining with release liner
  • Dimensions Listed 1000 mm cut lengths; specify thickness, width, custom length or cut outline
  • Working conditions Contact material, operating temperature, continuous or intermittent cycle, pressure and installation surface
  • Color and adhesive Confirm color for the chosen specification; PGF-A requires adhesive and total-thickness agreement
  • Supply and packing Cut sheets, slit formats or roll lengths; packing and dimensional tolerances agreed with the order
FAQ

Frequently Asked Questions

What is the difference between PGF-S and PGF-A?

PGF-S is double-smooth non-adhesive fabric for removable release sheets and separation layers. PGF-A has adhesive on the back and a protective release liner for fixed lining. Double-smooth describes the surface finish and does not mean adhesive on both sides.

What standard sizes are listed?

There are 14 PGF-S and 9 PGF-A dimensional options, all listed at 1000 mm cut length. Thickness and width combinations are shown individually in the SKU table. Custom cuts, slit widths and roll lengths are quoted separately.

Is the adhesive included in the PGF-A thickness?

The listed values are nominal thicknesses. Confirm the base-fabric thickness, adhesive thickness and total thickness measurement with the selected construction before order.

What working temperature should I specify?

Provide the continuous or intermittent process temperature, contact material, pressure and operating cycle. The working range is confirmed for the selected fabric construction; PGF-A also requires adhesive suitability to be checked.

Can every SKU be supplied in all the pictured colors?

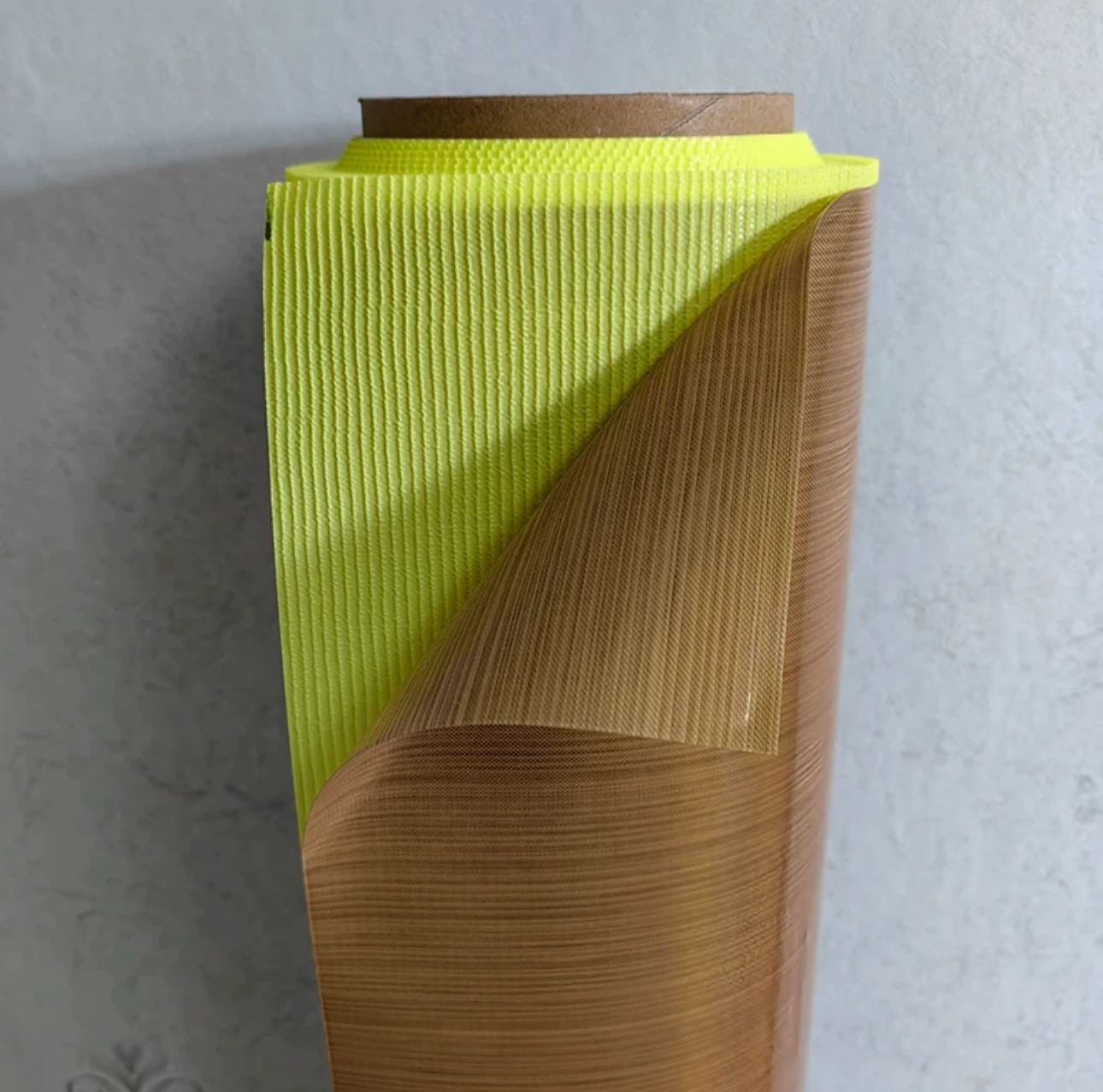

The photographs show brown, black and white materials, but color availability is confirmed for each selected construction and size. The yellow layer on PGF-A is a protective release liner, not a fabric color option.

What should I send for a quotation?

Send the SKU or required thickness, width, length or cut outline, construction, quantity and supply format. Include the contact material, temperature, pressure and installation method. Add color, adhesive and dimensional tolerance requirements where relevant.
