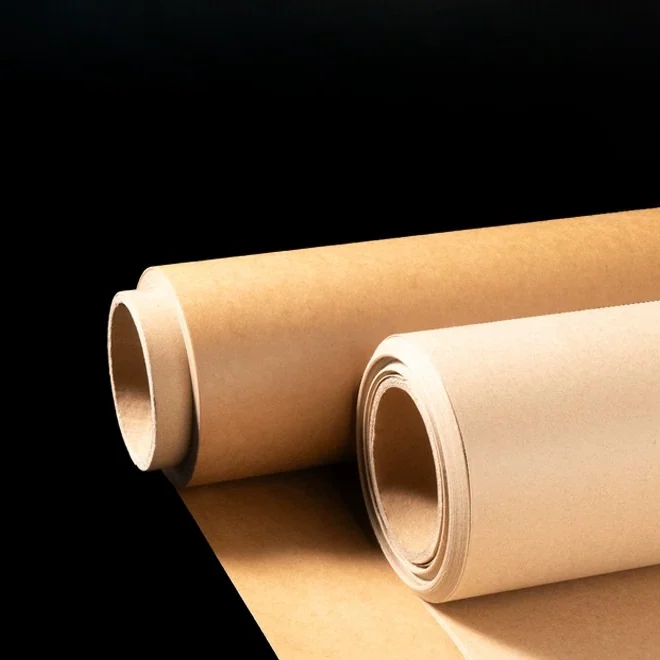

Yellow Electrical Insulation Paper Sheets

Yellow electrical insulation paper in laminated and unlaminated sheet formats for transformer barriers and converted insulating pads.

  • Yellow electrical paper
  • Laminated and plain variants
  • 0.1–0.5 mm listed gauges
Request a Quote -> Custom Size ->
Product Overview

Yellow Electrical Insulation Paper Sheets Supplier

The yellow paper format provides a visible separation layer in electrical assemblies. Laminated and plain variants remain distinct choices. Match the original construction and thickness, then define the cut dimensions and overlap around metal supports so the liner fits without reducing conductor clearance.

Technical Specifications

Product Parameters

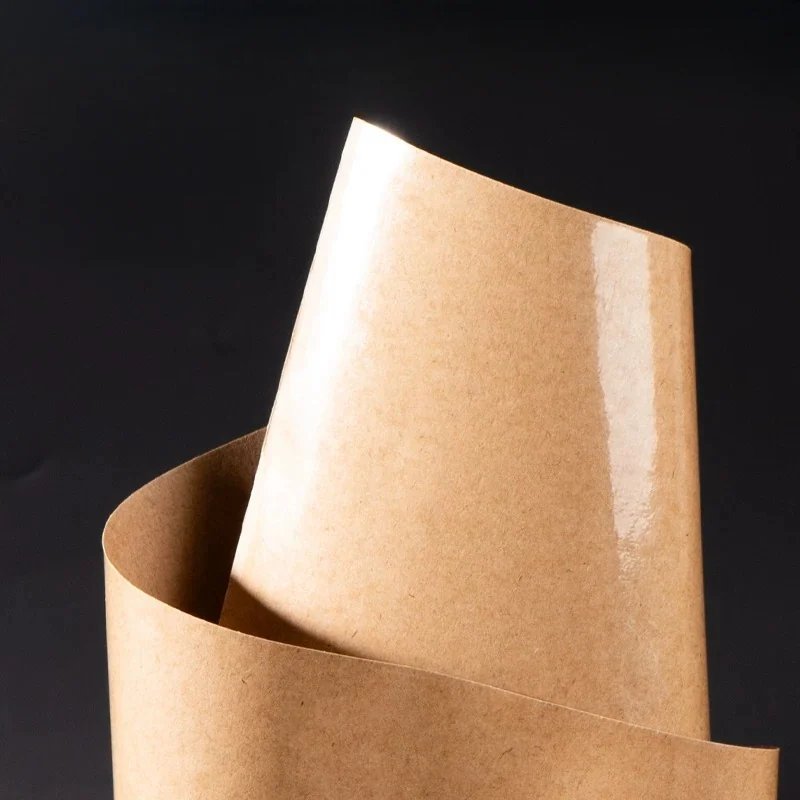

Material and construction Yellow cellulose electrical paper
Standard formats Film-laminated; 0.5 mm × 1 m width × 1 m length; Film-laminated; 0.4 mm × 1 m width × 1 m length; Film-laminated; 0.3 mm × 1 m width × 1 m length; 10 listed formats
Ordering model HT-084
Price Request a Quote
Construction options Yellow electrical paper; Laminated and plain variants; 0.1–0.5 mm listed gauges
MOQ Quoted by the selected supply unit and quantity

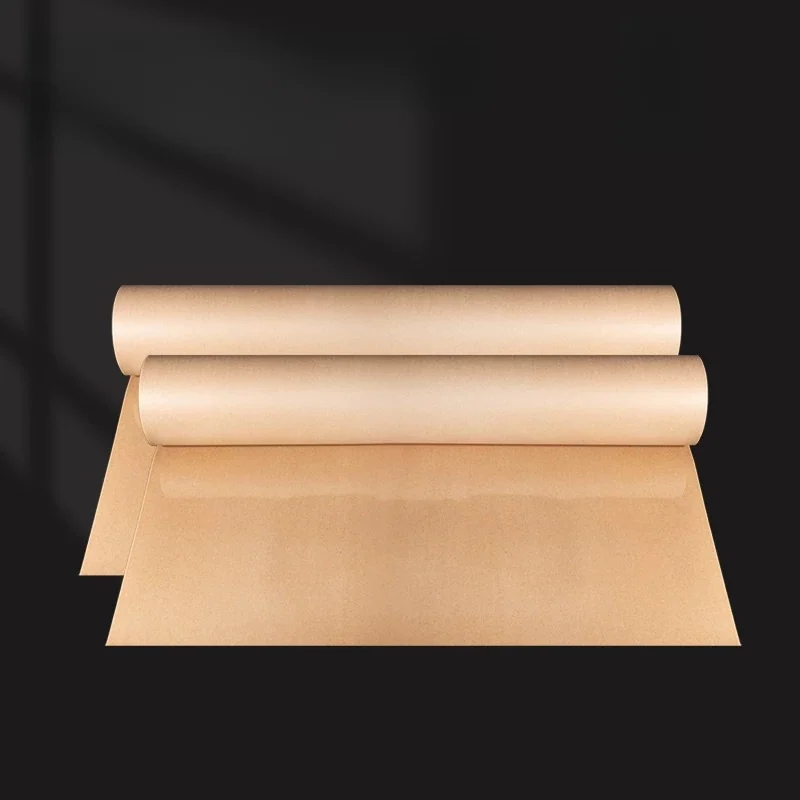

Packaging Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-084-P002 Film-laminated; 0.5 mm × 1 m width × 1 m length Yellow cellulose electrical paper Roll / cut length Request a Quote
HT-084-P003 Film-laminated; 0.4 mm × 1 m width × 1 m length Yellow cellulose electrical paper Roll / cut length Request a Quote
HT-084-P004 Film-laminated; 0.3 mm × 1 m width × 1 m length Yellow cellulose electrical paper Roll / cut length Request a Quote
HT-084-P005 Film-laminated; 0.25 mm × 1 m width × 1 m length Yellow cellulose electrical paper Roll / cut length Request a Quote
HT-084-P006 Film-laminated; 0.2 mm × 1 m width × 1 m length Yellow cellulose electrical paper Roll / cut length Request a Quote
HT-084-P007 Film-laminated; 0.15 mm × 1 m width × 1 m length Yellow cellulose electrical paper Roll / cut length Request a Quote
HT-084-P008 Unlaminated; 0.1 mm Thickness × 1 m width × 1 m length Yellow cellulose electrical paper Roll / cut length Request a Quote
HT-084-P009 Unlaminated; 0.2 mm Thickness × 1 m width × 1 m length Yellow cellulose electrical paper Roll / cut length Request a Quote
HT-084-P010 Unlaminated; 0.3 mm Thickness × 1 m width × 1 m length Yellow cellulose electrical paper Roll / cut length Request a Quote
HT-084-P011 Unlaminated; 0.5 mm Thickness × 1 m width × 1 m length Yellow cellulose electrical paper Roll / cut length Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Transformer insulating pads
  • Motor barriers
  • Converted electrical liners
Customization Options

Yellow Electrical Insulation Paper Sheets Ordering Options

Send Requirement ->

For Yellow Electrical Insulation Paper Sheets, specify finished thickness, width, cut outline and the required quantity.

  • Dimensions and construction Specify finished thickness, width, cut outline and the required quantity.
  • Material Yellow cellulose electrical paper
  • Supply and packing Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
FAQ

Frequently Asked Questions

Which laminated and unlaminated yellow-paper gauges are listed?

Film-laminated entries list 0.15, 0.2, 0.25, 0.3, 0.4 and 0.5 mm thicknesses. Unlaminated entries list 0.1, 0.2, 0.3 and 0.5 mm. All entries state 1 m width × 1 m length.

Can I identify yellow insulation paper by thickness alone?

No. Some gauges, such as 0.2, 0.3 and 0.5 mm, occur in both film-laminated and unlaminated entries. Include the face construction as well as the gauge when selecting a SKU.

What material is used for Yellow Electrical Insulation Paper Sheets?

The specified material is yellow cellulose electrical paper.

What should I include in a quotation request?

For model HT-084, send the selected SKU and order quantity. Include yellow paper gauge, film-laminated or unlaminated construction and sheet quantity. Pricing is by quotation for the selected specification and quantity.
