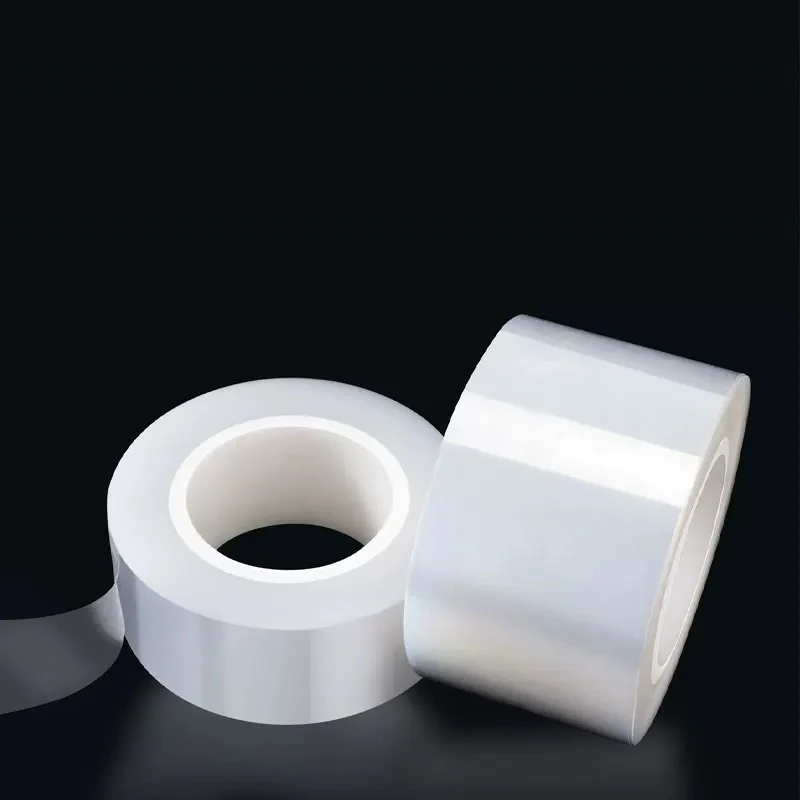

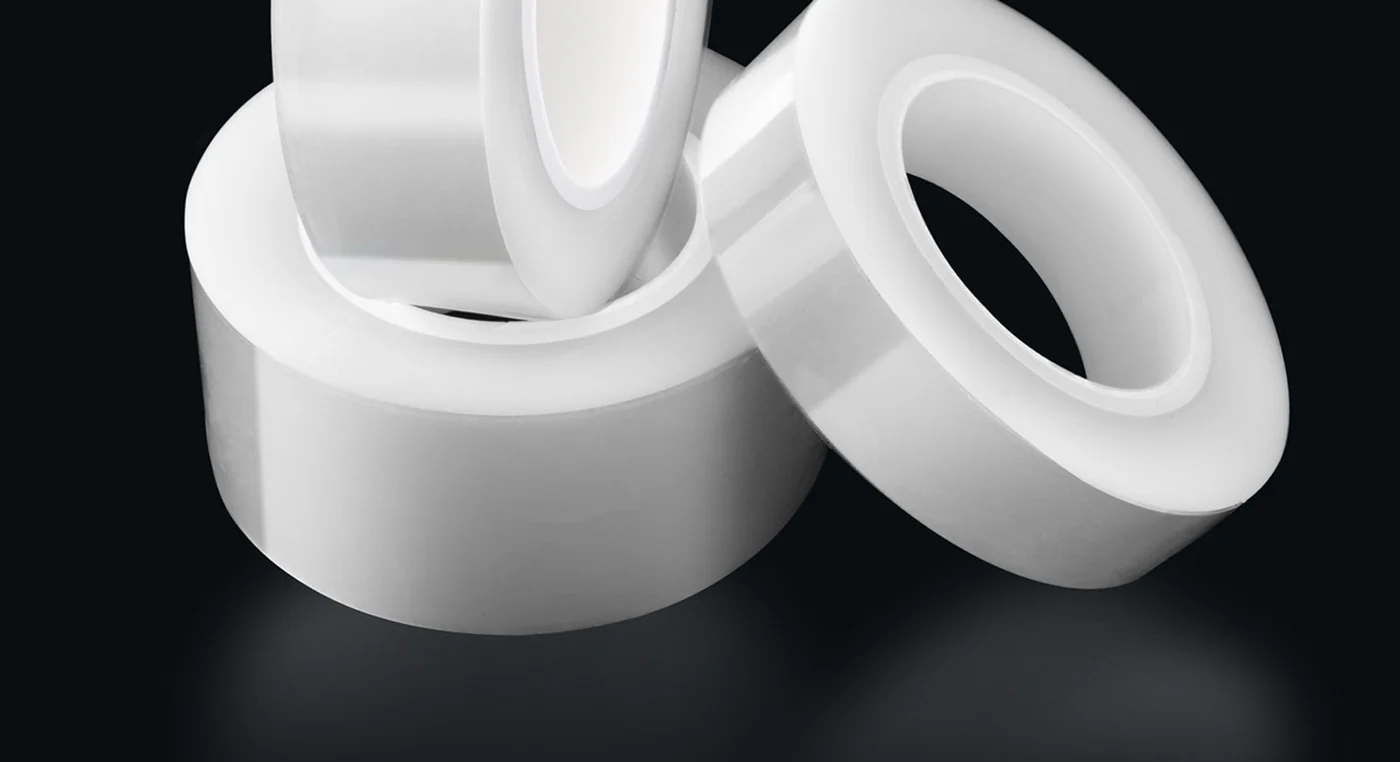

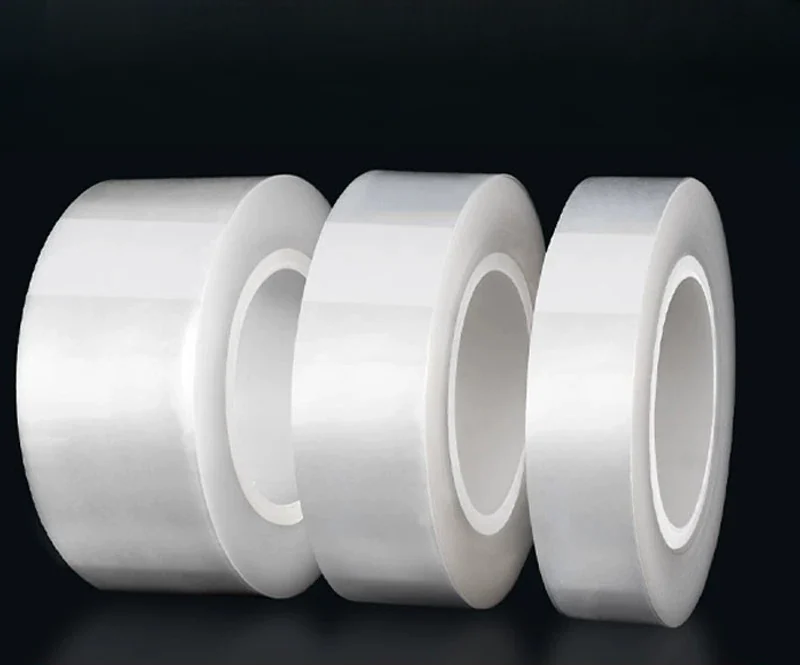

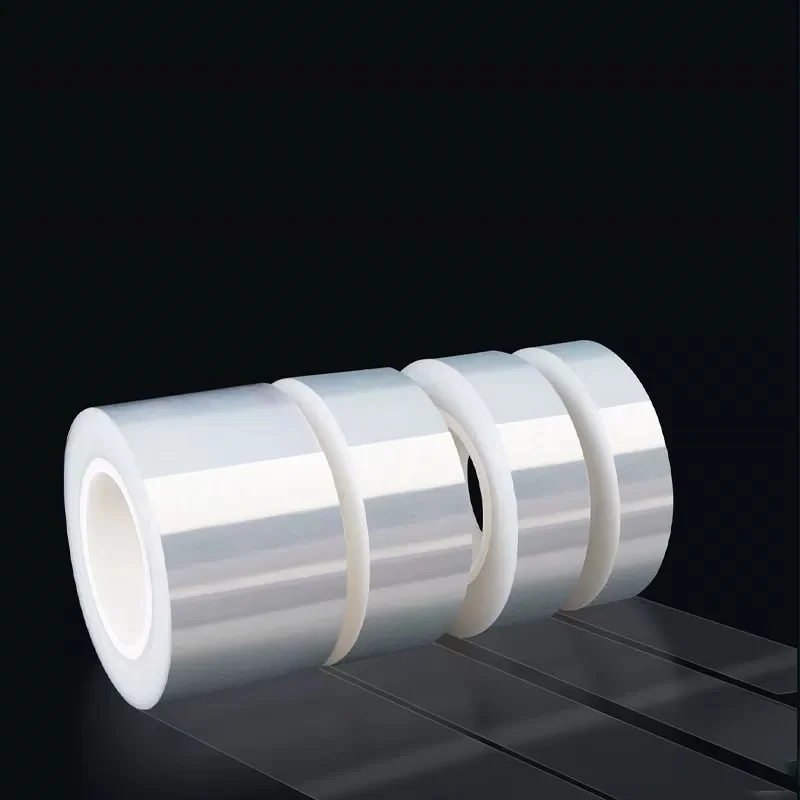

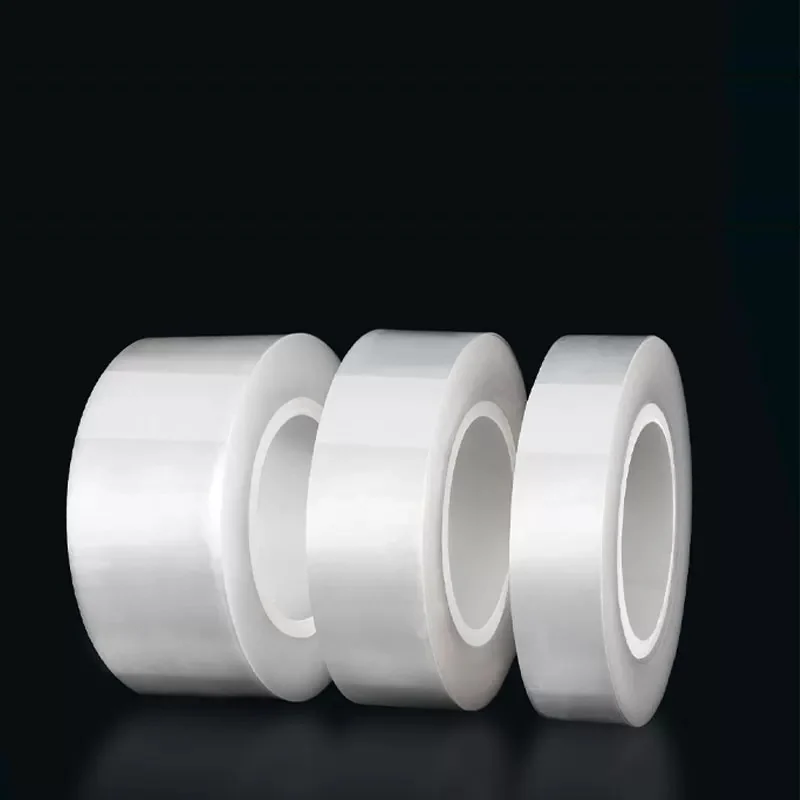

FEP Hot Melt Bonding Film

FEP bonding film in narrow rolls and 300 mm-wide formats for fluoropolymer lamination and thermally bonded assemblies.

  • 0.03–0.20 mm listed formats
  • Narrow continuous bonding rolls
  • Non-adhesive thermoplastic film
Request a Quote -> Custom Size ->
Product Overview

FEP Hot Melt Bonding Film Supplier

FEP is melt-processable, making this film useful as a bonding layer where a conventional pressure-sensitive adhesive is unsuitable. Film thickness controls the amount of bonding material. The assembly process must bring both interfaces into contact and establish a suitable heat, pressure and cooling cycle.

Technical Specifications

Product Parameters

Material and construction FEP fluoropolymer film
Standard formats 0.15 mm thickness × 300 mm × 1 m; 0.2 mm thickness × 300 mm × 1 m; 0.15 mm thickness × 300 mm × 5 m; 23 listed formats
Ordering model HT-006
Price Request a Quote
Construction options 0.03–0.20 mm listed formats; Narrow continuous bonding rolls; Non-adhesive thermoplastic film
MOQ Quoted by the selected supply unit and quantity
Packaging Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-006-002 0.15 mm thickness × 300 mm × 1 m FEP fluoropolymer film Roll / cut length Request a Quote
HT-006-003 0.2 mm thickness × 300 mm × 1 m FEP fluoropolymer film Roll / cut length Request a Quote
HT-006-004 0.15 mm thickness × 300 mm × 5 m FEP fluoropolymer film Roll / cut length Request a Quote
HT-006-005 0.2 mm thickness × 300 mm × 5 m FEP fluoropolymer film Roll / cut length Request a Quote
HT-006-006 0.03 mm × 300 mm × 10 m FEP fluoropolymer film Roll / cut length Request a Quote
HT-006-007 0.05 mm × 300 mm × 10 m FEP fluoropolymer film Roll / cut length Request a Quote
HT-006-008 0.08 mm × 300 mm × 10 m FEP fluoropolymer film Roll / cut length Request a Quote
HT-006-009 0.1 mm × 300 mm × 10 m FEP fluoropolymer film Roll / cut length Request a Quote
HT-006-010 0.2 mm thickness × 300 mm × 10 m FEP fluoropolymer film Roll / cut length Request a Quote
HT-006-011 0.15 mm thickness × 300 mm × 10 m FEP fluoropolymer film Roll / cut length Request a Quote
HT-006-012 0.03 mm × 30 mm × 500 m 1 roll FEP fluoropolymer film Roll / cut length Request a Quote
HT-006-013 0.03 mm × 40 mm × 500 m 1 roll FEP fluoropolymer film Roll / cut length Request a Quote
HT-006-014 0.03 mm × 50 mm × 500 m 1 roll FEP fluoropolymer film Roll / cut length Request a Quote
HT-006-015 0.03 mm × 60 mm × 500 m 1 roll FEP fluoropolymer film Roll / cut length Request a Quote
HT-006-016 0.05 mm × 40 mm × 100 m 1 roll FEP fluoropolymer film Roll / cut length Request a Quote
HT-006-017 0.05 mm × 50 mm × 100 m 1 roll FEP fluoropolymer film Roll / cut length Request a Quote
HT-006-018 0.05 mm × 60 mm × 100 m 1 roll FEP fluoropolymer film Roll / cut length Request a Quote
HT-006-019 0.08 mm × 40 mm × 100 m 1 roll FEP fluoropolymer film Roll / cut length Request a Quote
HT-006-020 0.08 mm × 50 mm × 100 m 1 roll FEP fluoropolymer film Roll / cut length Request a Quote
HT-006-021 0.08 mm × 60 mm × 100 m 1 roll FEP fluoropolymer film Roll / cut length Request a Quote
HT-006-022 0.08 mm × 80 mm × 100 m 1 roll FEP fluoropolymer film Roll / cut length Request a Quote
HT-006-023 0.1 mm × 40 mm × 100 m 1 roll FEP fluoropolymer film Roll / cut length Request a Quote
HT-006-024 0.1 mm × 50 mm × 100 m 1 roll FEP fluoropolymer film Roll / cut length Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Fluoropolymer laminates
  • Thermal bonding trials
  • Insulating composite assemblies
Customization Options

FEP Hot Melt Bonding Film Ordering Options

Send Requirement ->

For FEP Hot Melt Bonding Film, specify finished thickness, width, cut outline and the required quantity.

  • Dimensions and construction Specify finished thickness, width, cut outline and the required quantity.
  • Material FEP fluoropolymer film
  • Supply and packing Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
FAQ

Frequently Asked Questions

Which FEP bonding-film widths and lengths are listed?

The table includes 300 mm-wide film in several thicknesses and 1, 5 or 10 m lengths. Narrow roll entries include 0.03 mm film in 30, 40, 50 and 60 mm widths at 500 m, plus selected 100 m formats. Check the individual width, thickness and length combination.

Is this FEP film supplied with an adhesive backing?

The construction is identified as non-adhesive thermoplastic FEP film. An adhesive backing is not listed. The parameters give film dimensions, rather than a specified bonding temperature, pressure or processing cycle.

What material is used for FEP Hot Melt Bonding Film?

The specified material is FEP fluoropolymer film.

What should I include in a quotation request?

For model HT-006, send the selected SKU and order quantity. Include film thickness, width, length and selected roll format. Pricing is by quotation for the selected specification and quantity.
