Seamless PTFE Band Sealer Belts

Seamless 0.2 mm × 15 mm PTFE belts in multiple circumferences for continuous band sealer heating zones.

  • Seamless loop construction
  • 0.2 mm nominal thickness
  • 15 mm sealing-zone width
Request a Quote -> Custom Size ->
Product Overview

Seamless PTFE Band Sealer Belts Supplier

A seamless loop avoids a discrete lap joint traveling repeatedly through the sealing path. The listed belts share width and thickness but differ in circumference. Measure the old loop without stretching it and inspect the tensioner so the new belt tracks centrally through the heated zone.

Technical Specifications

Product Parameters

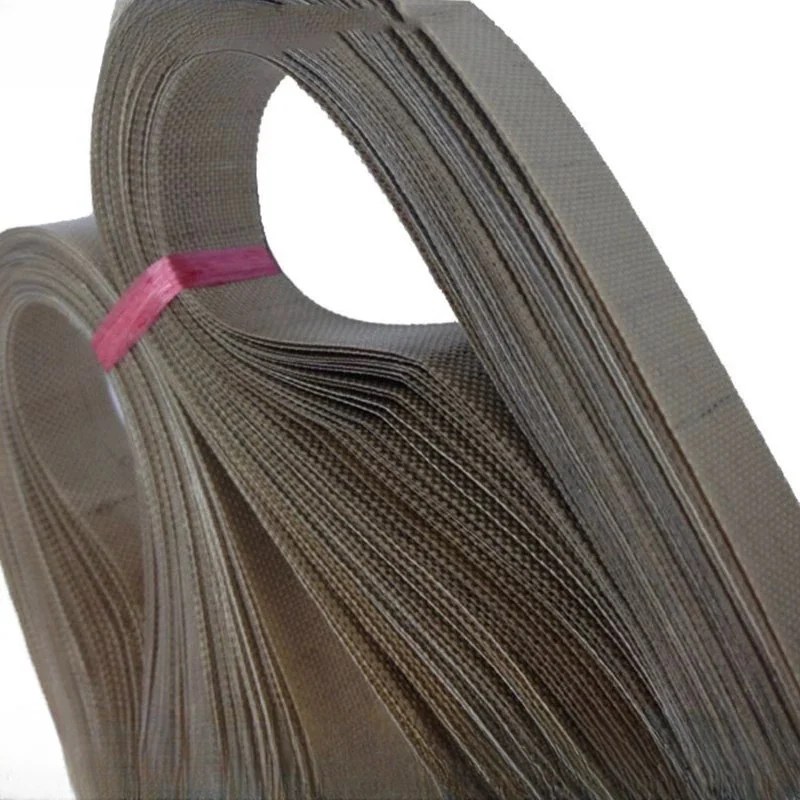

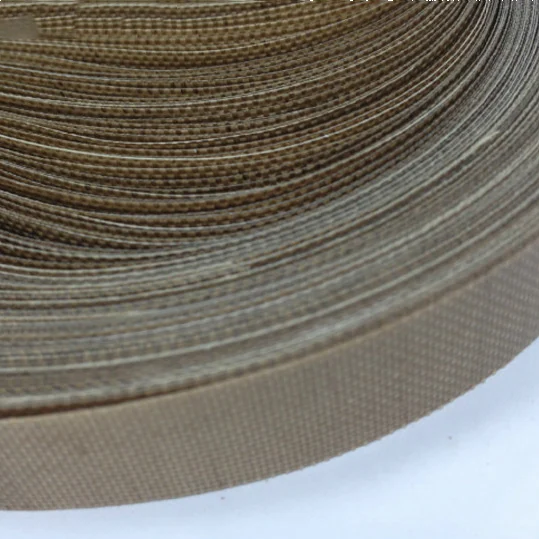

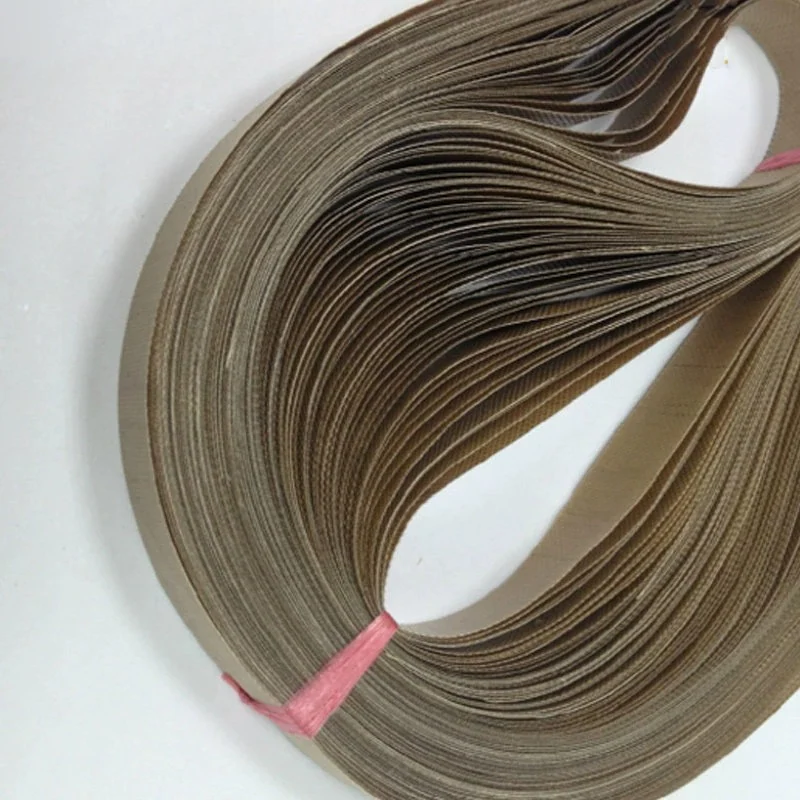

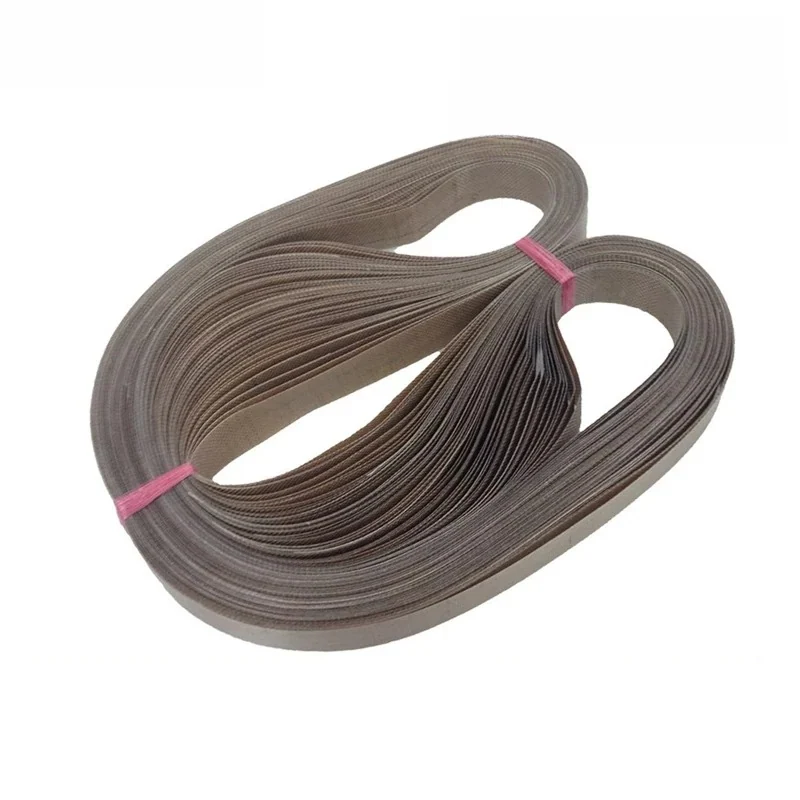

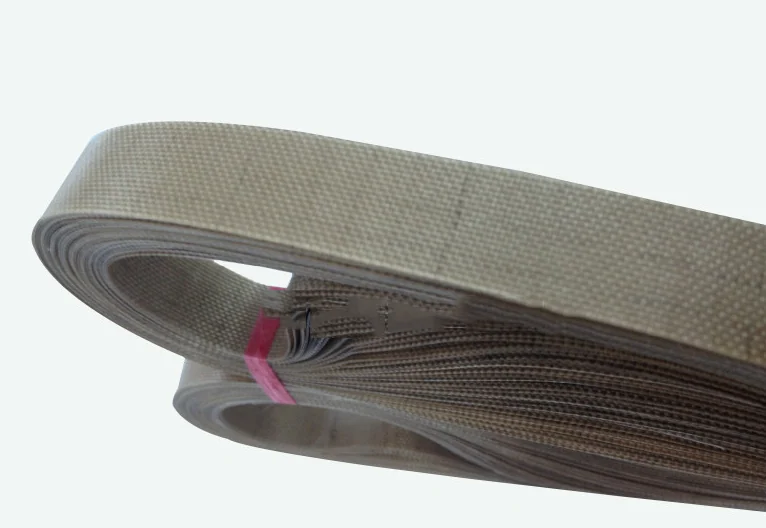

Material and construction PTFE-coated fiberglass endless belt
Standard formats 0.2 mm × 15 mm × 1366 mm; 0.2 mm × 15 mm × 1360 mm; 0.2 mm × 15 mm × 1210 mm; 9 listed formats
Ordering model HT-033
Price Request a Quote
Construction options Seamless loop construction; 0.2 mm nominal thickness; 15 mm sealing-zone width
MOQ Quoted by the selected supply unit and quantity
Packaging Coils or matched sets protected against sharp bends and packed in cartons.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-033-P001 0.2 mm × 15 mm × 1366 mm PTFE-coated fiberglass endless belt Belt / matched set Request a Quote
HT-033-P002 0.2 mm × 15 mm × 1360 mm PTFE-coated fiberglass endless belt Belt / matched set Request a Quote
HT-033-P003 0.2 mm × 15 mm × 1210 mm PTFE-coated fiberglass endless belt Belt / matched set Request a Quote
HT-033-P004 0.2 mm × 15 mm × 1170 mm PTFE-coated fiberglass endless belt Belt / matched set Request a Quote
HT-033-P005 0.2 mm × 15 mm × 1120 mm PTFE-coated fiberglass endless belt Belt / matched set Request a Quote
HT-033-P006 0.2 mm × 15 mm × 1010 mm PTFE-coated fiberglass endless belt Belt / matched set Request a Quote
HT-033-P007 0.2 mm × 15 mm × 810 mm PTFE-coated fiberglass endless belt Belt / matched set Request a Quote
HT-033-P008 0.2 mm × 15 mm × 770 mm PTFE-coated fiberglass endless belt Belt / matched set Request a Quote
HT-033-P009 0.2 mm × 15 mm × 750 mm PTFE-coated fiberglass endless belt Belt / matched set Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Continuous sealing machines
  • Joint-free belt replacement
  • Packaging line maintenance
Customization Options

Seamless PTFE Band Sealer Belts Ordering Options

Send Requirement ->

For Seamless PTFE Band Sealer Belts, specify width, circumference, joint and machine layout.

  • Dimensions and construction Specify width, circumference, joint and machine layout.
  • Material PTFE-coated fiberglass endless belt
  • Supply and packing Coils or matched sets protected against sharp bends and packed in cartons.
FAQ

Frequently Asked Questions

What dimensions are listed for seamless PTFE band-sealer belts?

All nine entries state 0.2 mm thickness and 15 mm width. The listed loop lengths are 750, 770, 810, 1010, 1120, 1170, 1210, 1360 and 1366 mm. Choose the exact loop length, including the distinction between 1360 and 1366 mm.

Is a joined belt construction listed for these band-sealer belts?

The material is described as a PTFE-coated fiberglass endless belt, with seamless loop construction. A separate joined construction is not identified in this parameter file.

What material is used for Seamless PTFE Band Sealer Belts?

The specified material is PTFE-coated fiberglass endless belt.

What should I include in a quotation request?

For model HT-033, send the selected SKU and order quantity. Include 0.2 mm thickness, 15 mm width and selected loop length. Pricing is by quotation for the selected specification and quantity.
