Round Flat Ceramic Spacer Washers Supplier

White round flat ceramic spacer washers for cable protection, wire insulation, and electrical spacing applications. Typical use includes Cable bundle protection, Wire routing insulation, Electrical equipment spacing. Solid engineering material with a machined, cut or sintered industrial profile. Clean-cut or lightly chamfered edges; fragile ceramic parts use protective separation during packing. Recommended operating range: High-temperature applications; exact working temperature depends on ceramic grade and operating conditions.

Technical Specifications

Product Parameters

Material	Ceramic
Temperature Range	High-temperature applications; exact working temperature depends on ceramic grade and operating conditions.

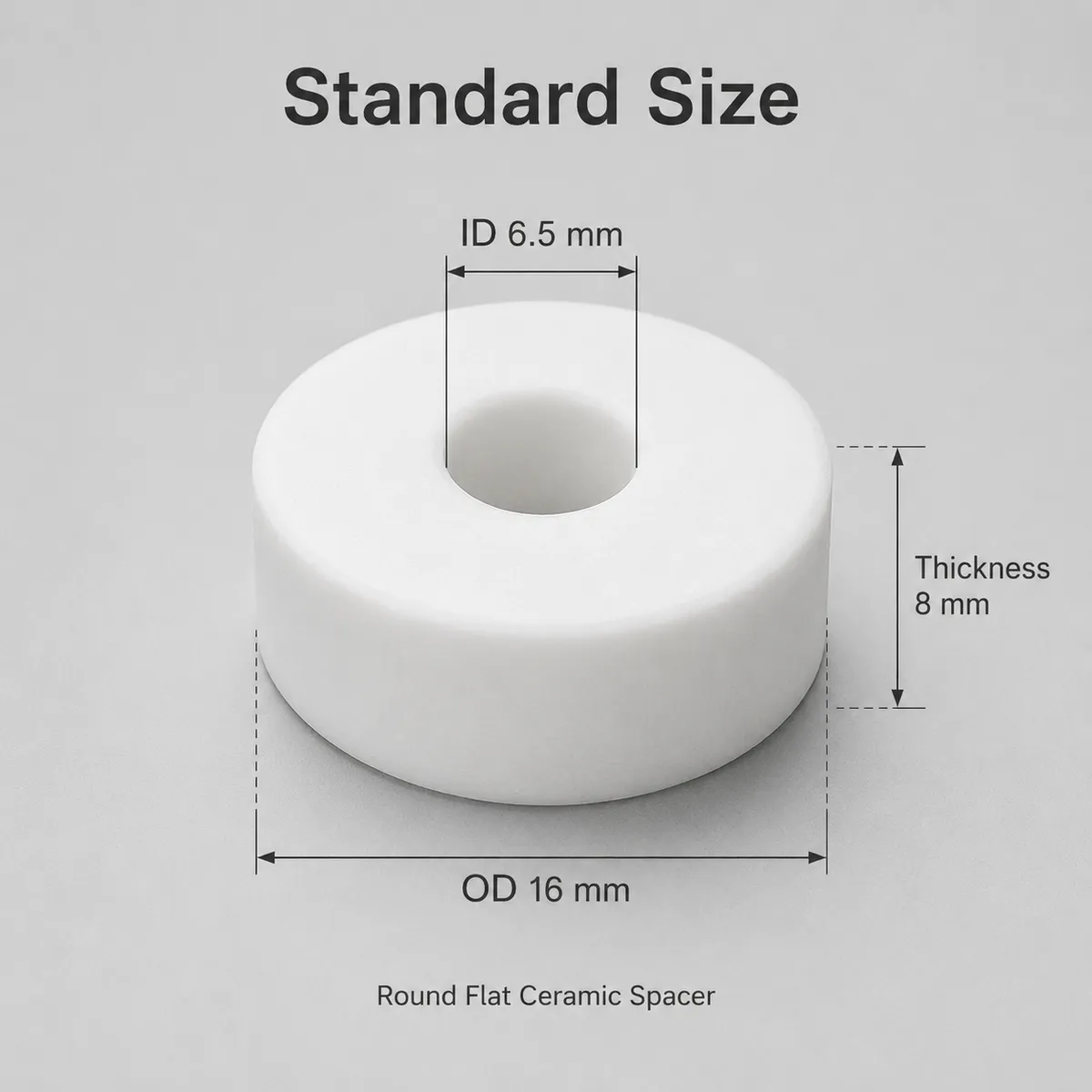

Size Options	Standard: ID 6.5 mm x OD 16 mm x thickness 8 mm; custom ID, OD, and thickness available on request.
Color Options	White
Lead Time	Standard stock items can usually be prepared quickly; custom sizes are quoted after specification confirmation.
Customization	Custom size, tolerance, pack quantity, bulk packaging, and private-label packaging on request.
MOQ	MOQ depends on size, tolerance, and packaging requirements.
Packaging	Carton packing, bulk packing or export packing can be discussed by order requirement.

Purchasing and Engineering Notes

Round Flat Ceramic Spacer Washers Procurement Details

Applicable sizes and tolerance	Standard: ID 6.5 mm x OD 16 mm x thickness 8 mm; custom ID, OD, and thickness available on request.. Typical cut or machined tolerance: +/-0.2 mm; tighter drawing tolerances are available for suitable dimensions.
Structure, surface and edge	Solid engineering material with a machined, cut or sintered industrial profile. Clean-cut or lightly chamfered edges; fragile ceramic parts use protective separation during packing.
Reinforcement	Fiberglass reinforcement: not used; strength is provided by the sintered ceramic body.
Material selection	Ceramic provides higher heat and electrical-insulation performance than engineering plastics, but requires impact-protective handling.
Recommended use temperature	High-temperature applications; exact working temperature depends on ceramic grade and operating conditions.
Packing and carton reference	Labeled polybags; 500-1,000 pcs per foam-lined carton
Standard MOQ	100 pcs
Custom MOQ	1,000 pcs
Sample policy	USD 15-25 plus freight for standard-size samples
Production cycle	Stock: 3-7 days; custom pressing: 15-25 days
Available test and inspection files	Material declaration, dimensional inspection record, batch traceability label and packing list.
Typical purchasing teams	Electrical-equipment makers, process-equipment OEMs, maintenance teams and technical distributors.

Ready Stock & Standard Sizes

Available Stock Specifications

The following specifications are available for quotation. MOQ and lead time are listed by standard size and custom requirement.

Request Stock Quote

SKU / Model	Size	Available Specification	Material	MOQ	Lead Time	Quotation Note
CFW-6.5-16-8-WH-15	ID 6.5 mm x OD 16 mm x thickness 8 mm	Round flat ceramic spacer washer, 15 pcs per pack	Ceramic	MOQ depends on size, tolerance, and packaging requirements.	Standard stock items can usually be prepared quickly; custom sizes are quoted after specification confirmation.	Standard stock option for cable protection, wire routing, and insulating spacer use

Note: MOQ and lead time are based on the listed size, order quantity and packing requirement.

Send specification for quotation ->

Applications

Typical Applications

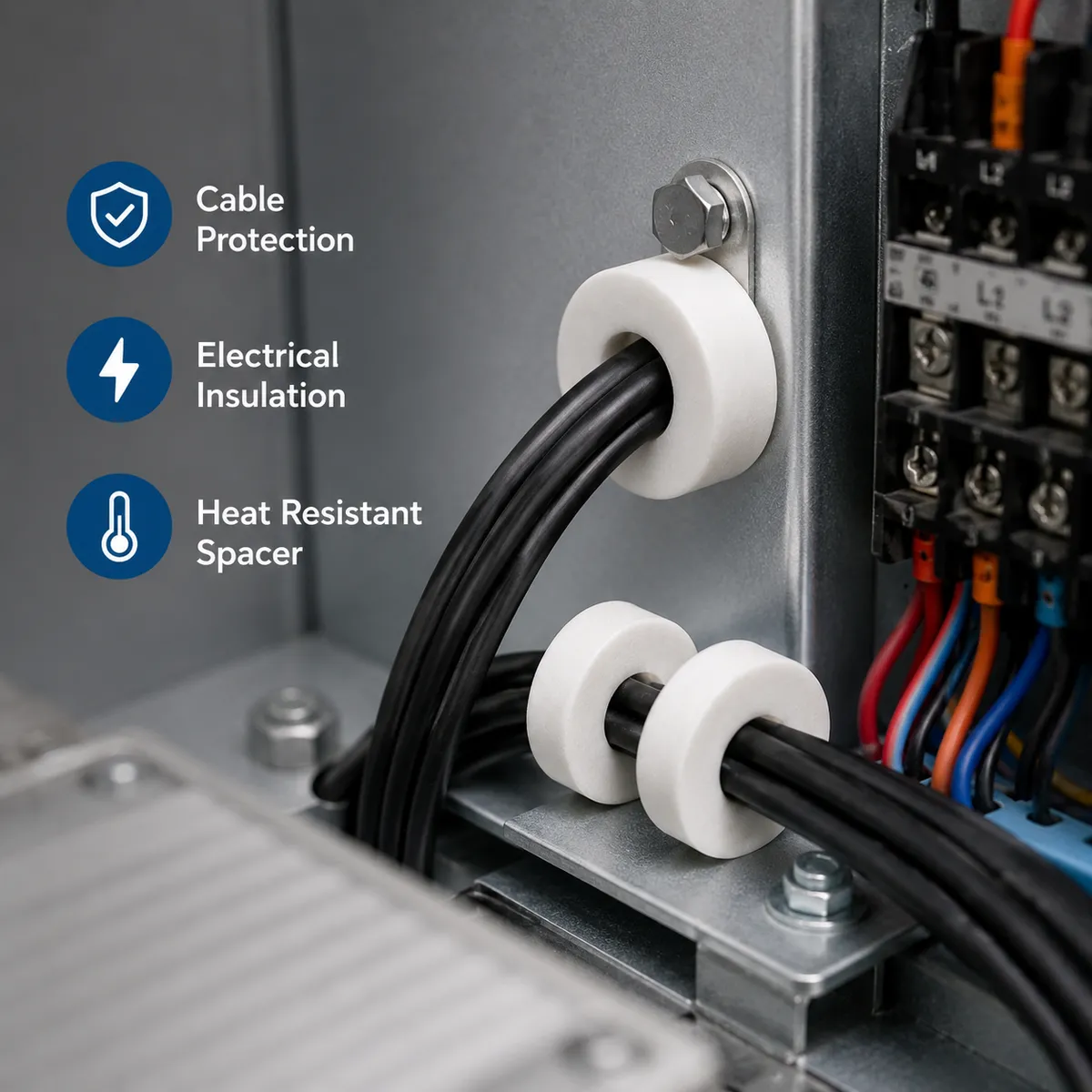

Cable bundle protection
Wire routing insulation
Electrical equipment spacing
Insulating spacer for assemblies
High-temperature component separation

Customization Options

Size / Material / Color / Packaging / Logo

Send Requirement ->

Custom programme: Custom size, tolerance, pack quantity, bulk packaging, and private-label packaging on request.. Size and tolerance reference: Standard: ID 6.5 mm x OD 16 mm x thickness 8 mm; custom ID, OD, and thickness available on request.. Typical cut or machined tolerance: +/-0.2 mm; tighter drawing tolerances are available for suitable dimensions. Packing and production reference: Labeled polybags; 500-1,000 pcs per foam-lined carton Stock: 3-7 days; custom pressing: 15-25 days

Size Standard: ID 6.5 mm x OD 16 mm x thickness 8 mm, custom ID, OD, and thickness available on request.
Material Ceramic
Color White
Packaging Carton packing, bulk packing or export packing can be discussed by order requirement.
Logo Logo, label or buyer mark can be discussed by order requirement

FAQ

Frequently Asked Questions

Can you supply this ceramic washer in the standard 6.5 x 16 x 8 mm size?

Yes. The standard option is ID 6.5 mm x OD 16 mm x 8 mm thickness in white ceramic.

Can the inner diameter, outer diameter, or thickness be customized?

Yes. Custom dimensions can be quoted after confirming drawings, tolerance requirements, and order quantity.

Is this product suitable for electrical cable protection?

It is designed for insulation spacer and cable protection applications. Please confirm the operating environment before bulk purchase.

What information is needed for a bulk quotation?

Please provide size, quantity, application, packaging requirement, and any tolerance or drawing requirements.

What are the standard and custom order quantities for Round Flat Ceramic Spacer Washers?

Standard MOQ: 100 pcs. Custom MOQ: 1,000 pcs. Stock: 3-7 days; custom pressing: 15-25 days.

What packing and technical files can be supplied with Round Flat Ceramic Spacer Washers?

Labeled polybags; 500-1,000 pcs per foam-lined carton Available files include: Material declaration, dimensional inspection record, batch traceability label and packing list.
