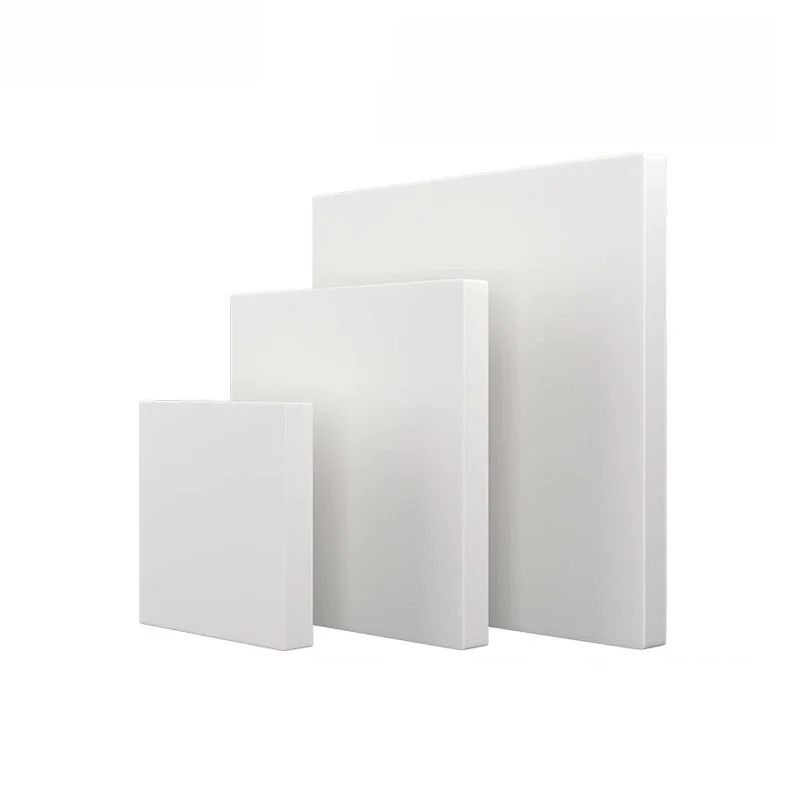

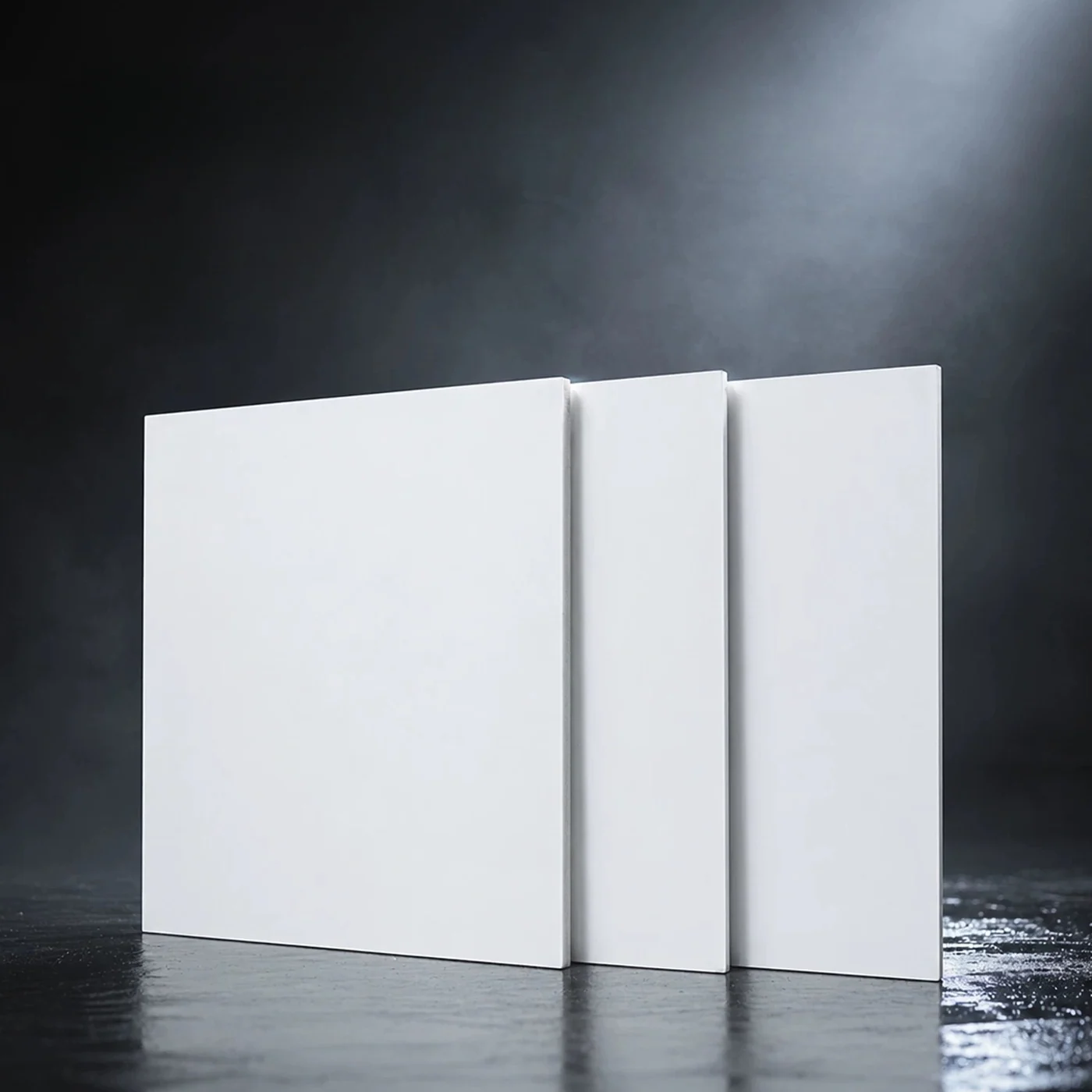

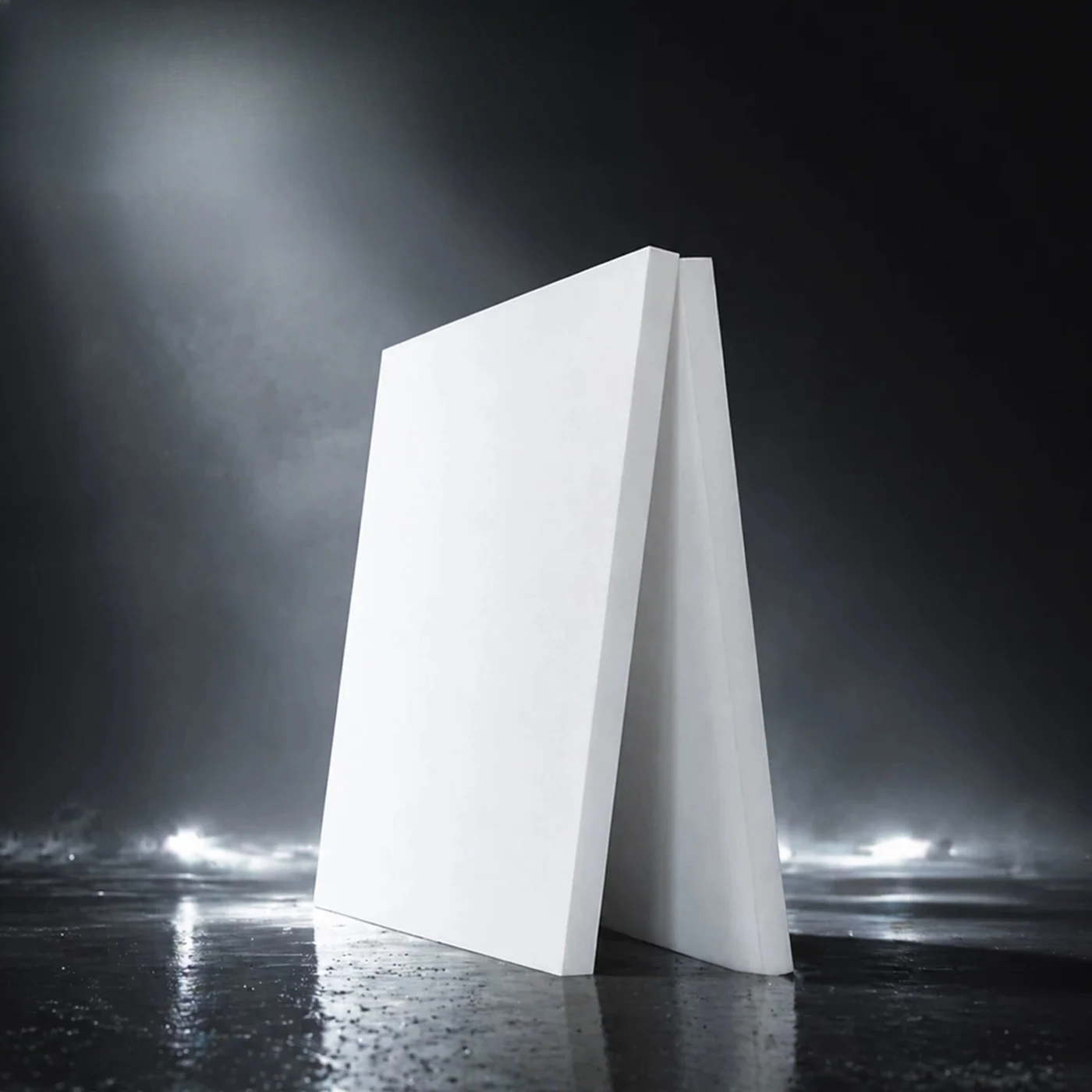

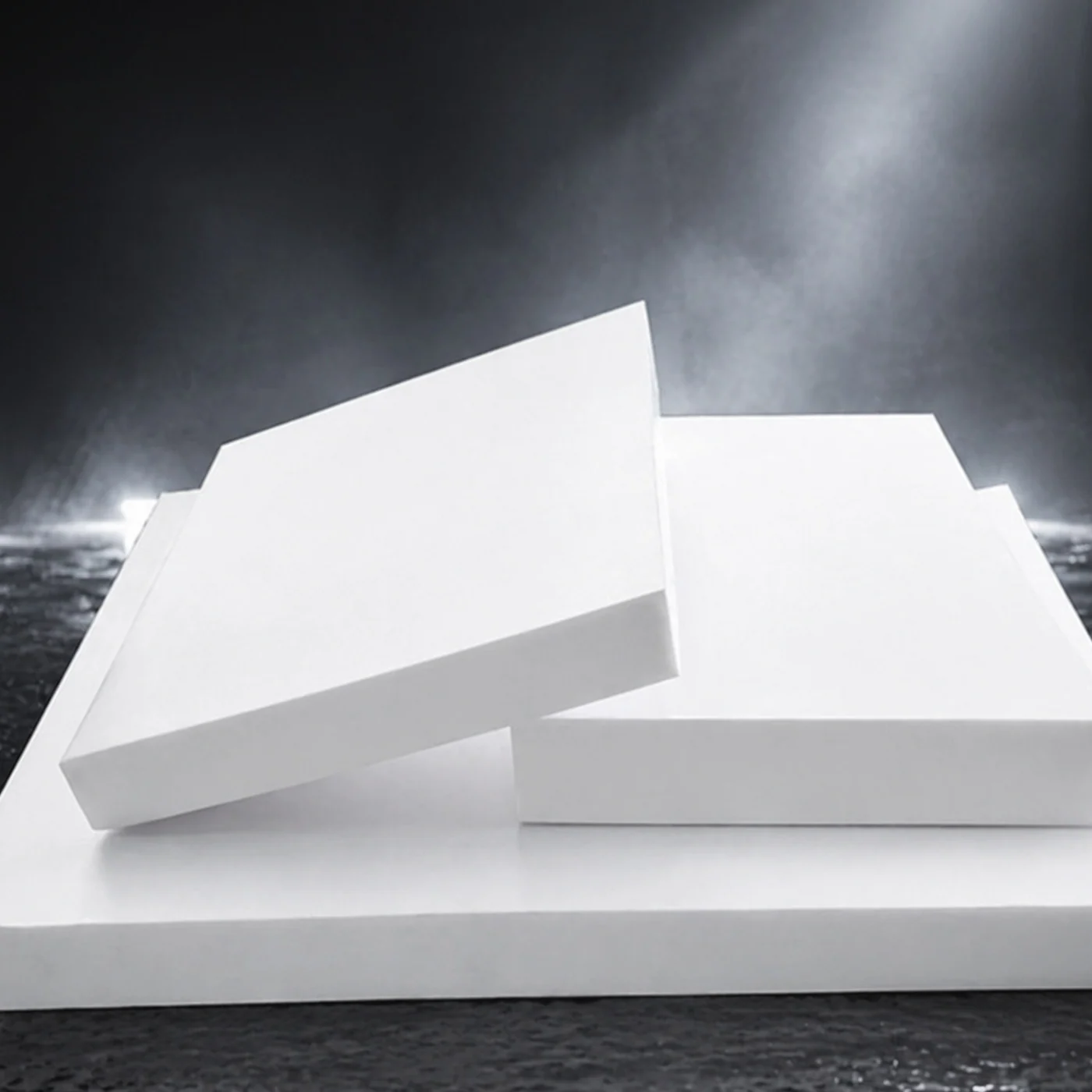

PTFE Sheet and Plate Blanks

PTFE sheet and plate blanks in thin liners and thick machining formats for gaskets, sliding faces and chemical-facing parts.

  • Thin film through thick plate options
  • Square and wide sheet formats
  • Cut blanks for conversion
Request a Quote -> Custom Size ->
Product Overview

PTFE Sheet and Plate Blanks Supplier

Thin stock conforms to flat liners and cut gaskets; thick plate supplies material for machined components. Choose the blank thickness with machining allowance where faces will be finished. PTFE deforms under sustained load, so a spacer or bearing design must account for the contact pressure and support area.

Technical Specifications

Product Parameters

Material and construction PTFE fluoropolymer
Standard formats 1 m × 1 m × 0.1 mm; 1 m × 1 m × 0.2 mm; 1 m × 1 m × 0.3 mm; 49 listed formats
Ordering model HT-025
Price Request a Quote
Construction options Thin film through thick plate options; Square and wide sheet formats; Cut blanks for conversion
MOQ Quoted by the selected supply unit and quantity
Packaging Cut pieces protected from deformation and packed in cartons.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-025-001 1 m × 1 m × 0.1 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-002 1 m × 1 m × 0.2 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-003 1 m × 1 m × 0.3 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-004 1 m × 1 m × 0.5 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-005 1 m × 1 m × 0.8 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-006 1 m × 1 m × 1 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-007 1 m × 1 m × 1.5 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-008 1 m × 1 m × 3 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-009 1 m × 1 m × 4 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-010 1 m × 1 m × 5 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-011 1 m × 1 m × 6 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-012 1 m × 1 m × 8 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-013 1 m × 1 m × 10 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-014 1 m × 1 m × 12 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-015 1 m × 1 m × 15 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-016 1 m × 1 m × 20 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-017 500 mm × 500 mm × 0.3 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-018 500 mm × 500 mm × 0.5 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-019 500 mm × 500 mm × 1 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-020 500 mm × 500 mm × 1.5 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-021 500 mm × 500 mm × 2 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-022 500 mm × 500 mm × 3 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-023 500 mm × 500 mm × 4 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-024 500 mm × 500 mm × 5 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-025 500 mm × 500 mm × 6 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-026 500 mm × 500 mm × 8 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-027 500 mm × 500 mm × 10 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-028 500 mm × 500 mm × 15 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-029 500 mm × 500 mm × 20 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-030 500 mm × 500 mm × 25 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-031 500 mm × 500 mm × 30 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-032 500 mm × 500 mm × 35 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-033 500 mm × 500 mm × 40 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-034 500 mm × 500 mm × 45 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-035 500 mm × 500 mm × 50 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-036 500 mm × 500 mm × 60 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-037 600 mm × 600 mm × 3 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-038 600 mm × 600 mm × 5 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-039 600 mm × 600 mm × 8 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-040 600 mm × 600 mm × 10 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-041 600 mm × 600 mm × 15 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-042 600 mm × 600 mm × 20 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-043 600 mm × 600 mm × 30 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-044 1.2 m width × 1 m × 2 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-045 1.2 m width × 1 m × 3 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-046 1.2 m width × 1 m × 5 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-047 1.5 m width × 1 m × 2 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-048 1.5 m width × 1 m × 3 mm PTFE fluoropolymer Sheet / cut blank Request a Quote
HT-025-049 1.5 m width × 1 m × 5 mm PTFE fluoropolymer Sheet / cut blank Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

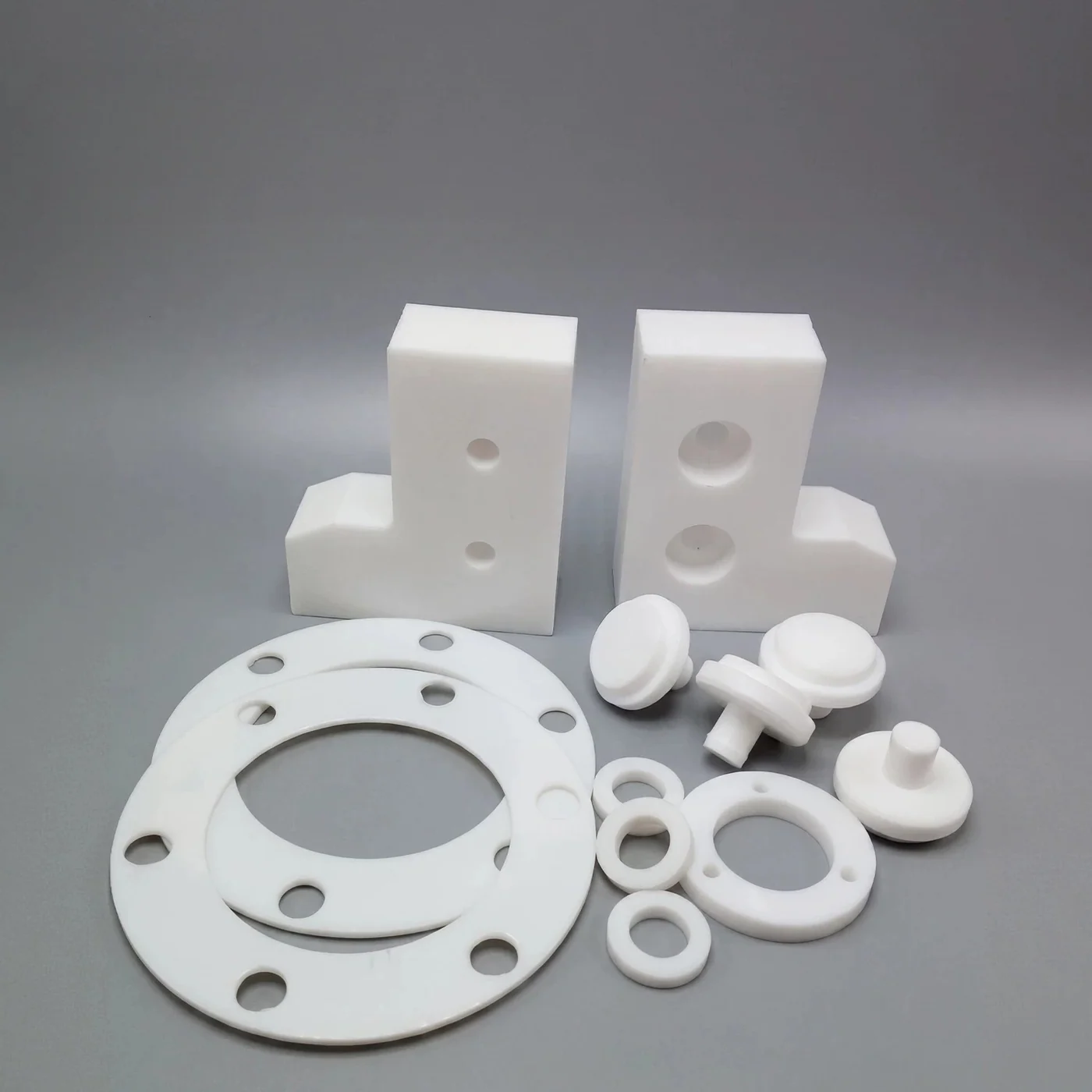

  • Machined chemical-facing parts
  • Flat gasket blanks
  • Low-friction sliding liners
Customization Options

PTFE Sheet and Plate Blanks Ordering Options

Send Requirement ->

For PTFE Sheet and Plate Blanks, specify finished thickness, width, cut outline and the required quantity.

  • Dimensions and construction Specify finished thickness, width, cut outline and the required quantity.
  • Material PTFE fluoropolymer
  • Supply and packing Cut pieces protected from deformation and packed in cartons.
FAQ

Frequently Asked Questions

Which blank dimensions are listed for PTFE sheets and plates?

The table includes 1 m × 1 m, 500 mm × 500 mm and 600 mm × 600 mm blanks in selected gauges, plus 1.2 m-wide and 1.5 m-wide sheets at 1 m length. The thickness options differ by blank size.

Does the 0.1–60 mm thickness spread apply to every PTFE blank size?

No. The 0.1 mm entry is a 1 m × 1 m format, while the 60 mm entry is a 500 mm × 500 mm blank. Use the table to match thickness with a listed outline rather than combining the smallest and largest values freely.

What material is used for PTFE Sheet and Plate Blanks?

The specified material is PTFE fluoropolymer.

What should I include in a quotation request?

For model HT-025, send the selected SKU and order quantity. Include PTFE thickness, blank width and length or required cut outline. Pricing is by quotation for the selected specification and quantity.
