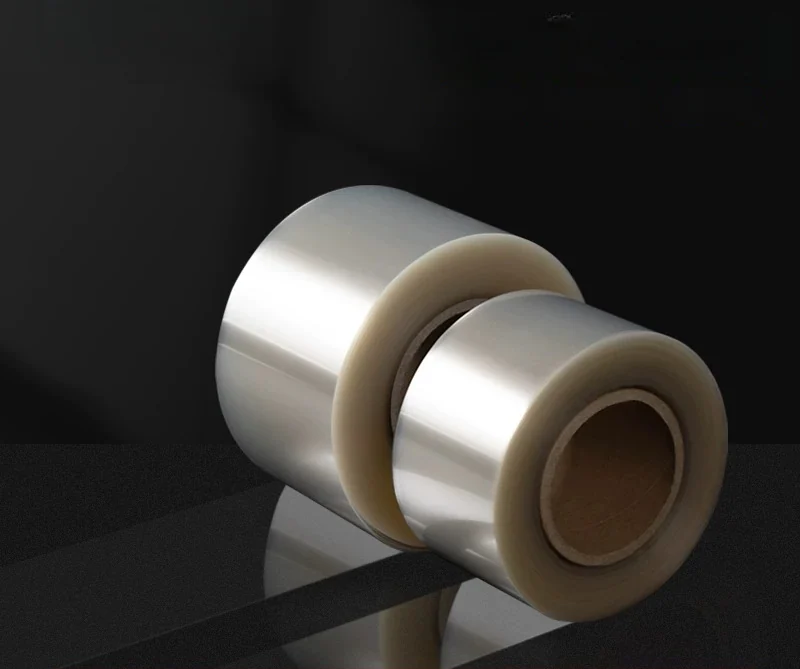

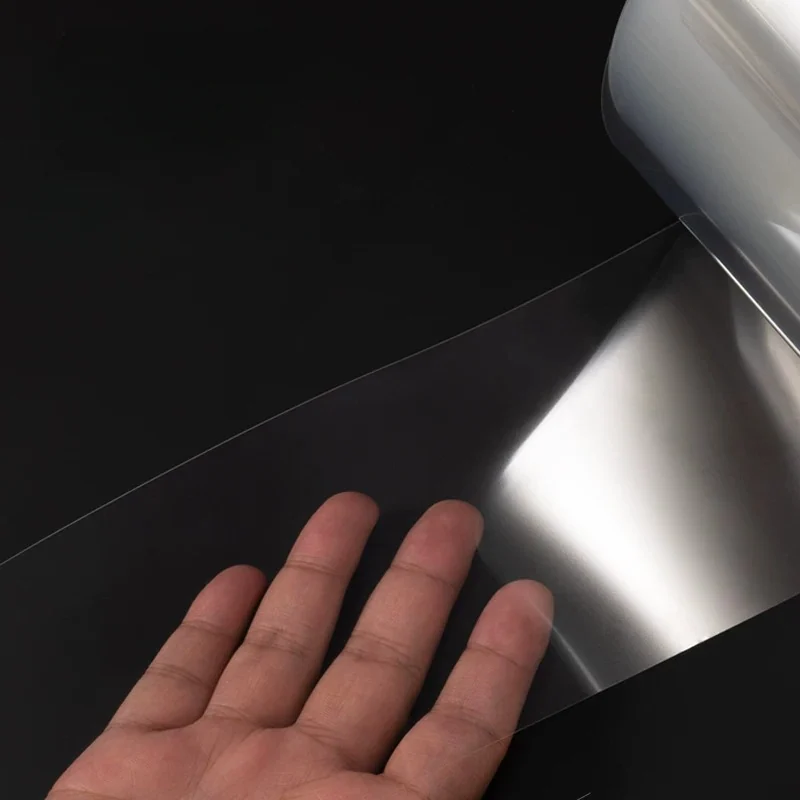

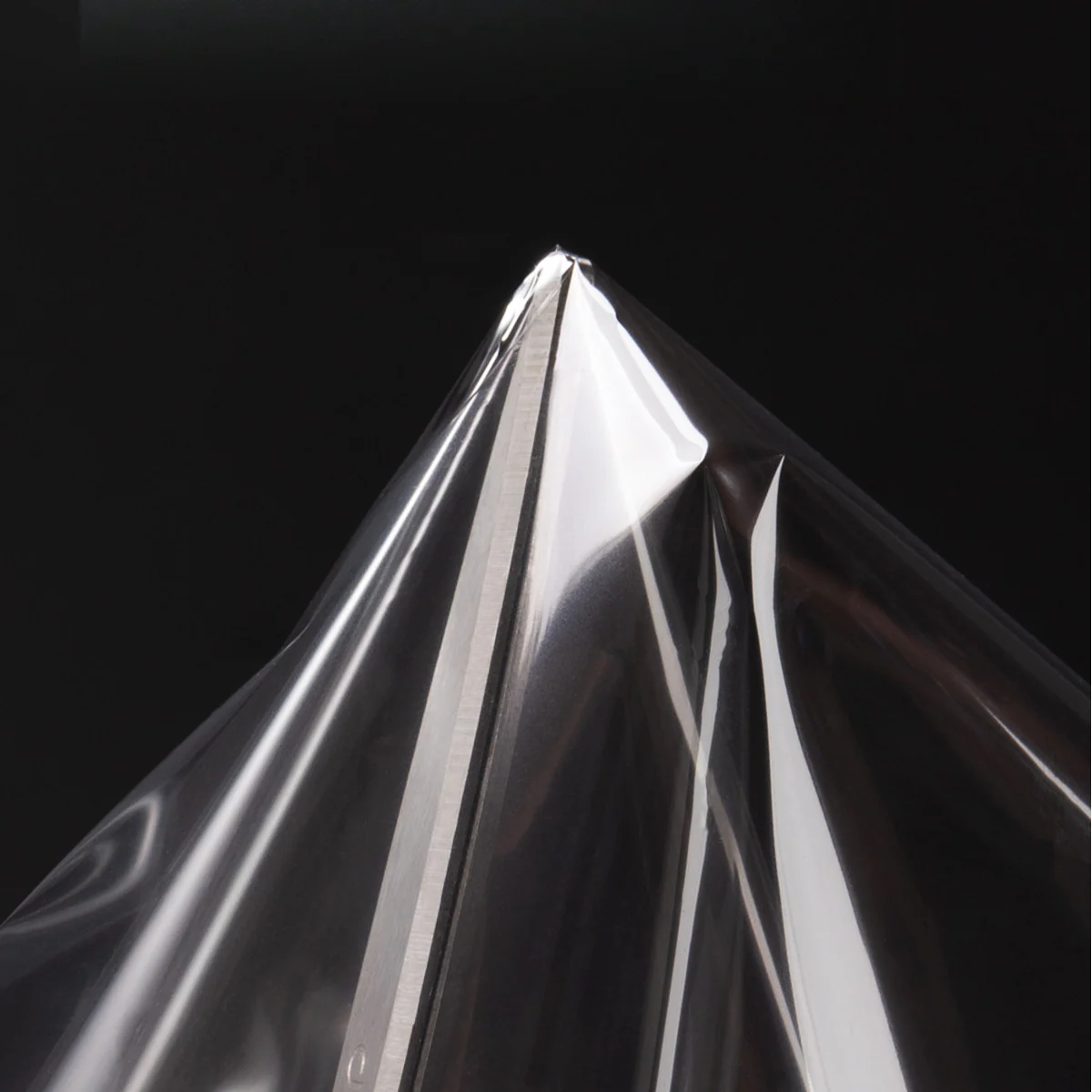

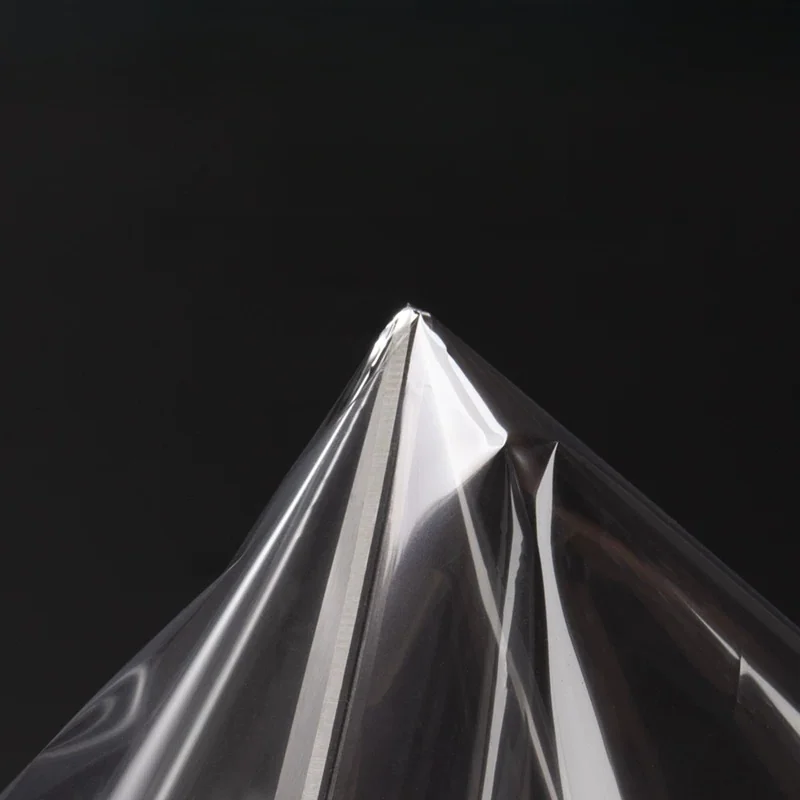

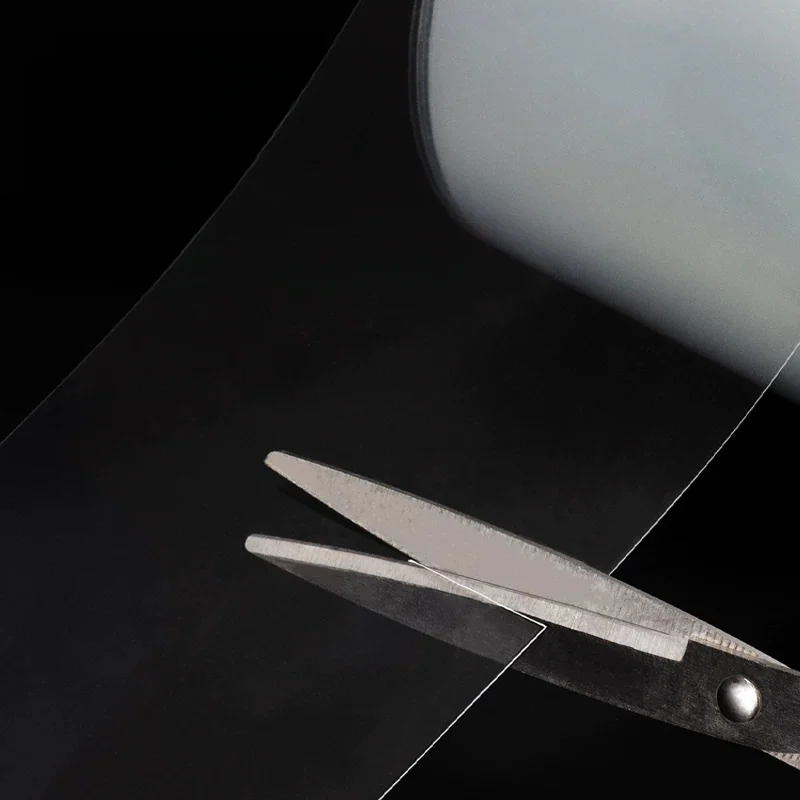

Clear PET Thin Insulation Film Rolls

Clear thin PET film rolls for electrical separators, protective layers and precision conversion into transparent parts.

  • Clear continuous film
  • Thin separator formats
  • Roll stock for precision cutting
Request a Quote -> Custom Size ->
Product Overview

Clear PET Thin Insulation Film Rolls Supplier

The clear polyester web supports visual inspection through the material while providing a continuous separator. Thin grades suit compact assemblies; heavier film gives more handling stiffness. Specify thickness and web width for conversion, and keep the surface clean where the finished part must retain optical clarity.

Technical Specifications

Product Parameters

Material and construction Clear PET polyester film
Standard formats 0.0125 mm thickness; 0.025 mm thickness; 0.05 mm thickness; 8 listed formats
Ordering model HT-057
Price Request a Quote
Construction options Clear continuous film; Thin separator formats; Roll stock for precision cutting
MOQ Quoted by the selected supply unit and quantity
Packaging Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
Models & Available Formats

Available Stock Specifications

The following reference formats and drawing-based configurations are available for quotation. Specify the finished dimensions and quantity in your inquiry.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-057-REF01 0.0125 mm thickness Clear PET polyester film Roll / cut length Request a Quote
HT-057-REF02 0.025 mm thickness Clear PET polyester film Roll / cut length Request a Quote
HT-057-REF03 0.05 mm thickness Clear PET polyester film Roll / cut length Request a Quote
HT-057-REF04 0.10 mm thickness Clear PET polyester film Roll / cut length Request a Quote
HT-057-REF05 0.125 mm thickness Clear PET polyester film Roll / cut length Request a Quote
HT-057-REF06 0.188 mm thickness Clear PET polyester film Roll / cut length Request a Quote
HT-057-REF07 0.25 mm thickness Clear PET polyester film Roll / cut length Request a Quote
HT-057-REF08 0.5 mm thickness Clear PET polyester film Roll / cut length Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Electrical film separators
  • Transparent protection inserts
  • Converted polyester parts
Customization Options

Clear PET Thin Insulation Film Rolls Ordering Options

Send Requirement ->

For Clear PET Thin Insulation Film Rolls, specify finished thickness, width, cut outline and the required quantity.

  • Dimensions and construction Specify finished thickness, width, cut outline and the required quantity.
  • Material Clear PET polyester film
  • Supply and packing Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
FAQ

Frequently Asked Questions

Which thicknesses are listed for clear thin PET film?

The eight listed gauges are 0.0125, 0.025, 0.05, 0.10, 0.125, 0.188, 0.25 and 0.5 mm. These entries give thickness only, so include the required roll width and supply length.

Are fixed roll widths or lengths stated for every clear PET gauge?

No. The parameters describe clear continuous film and roll stock for precision cutting, but the reference entries do not give width or length. Those dimensions need to be confirmed with the chosen thickness.

What material is used for Clear PET Thin Insulation Film Rolls?

The specified material is clear PET polyester film.

What should I include in a quotation request?

For model HT-057, send the selected SKU and order quantity. Include clear PET thickness, roll width and supply length. Pricing is by quotation for the selected specification and quantity.
