Impulse Sealer Replacement Service Packs

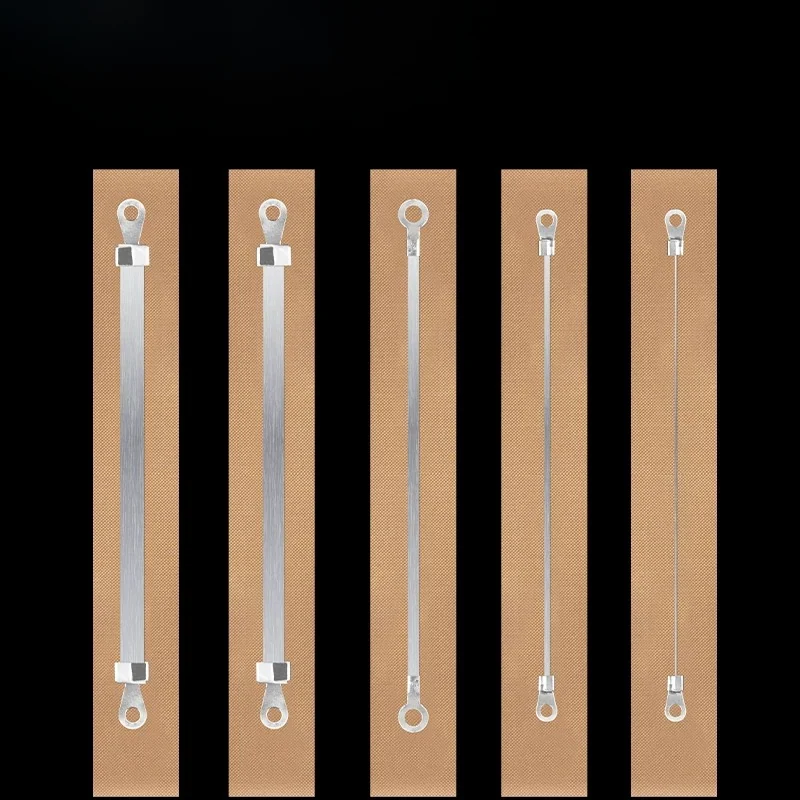

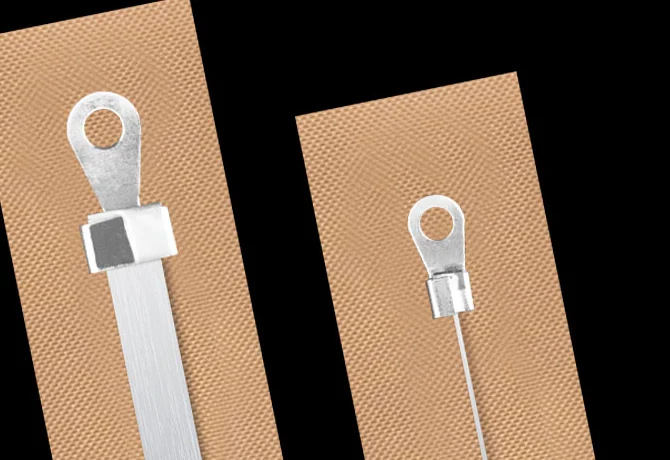

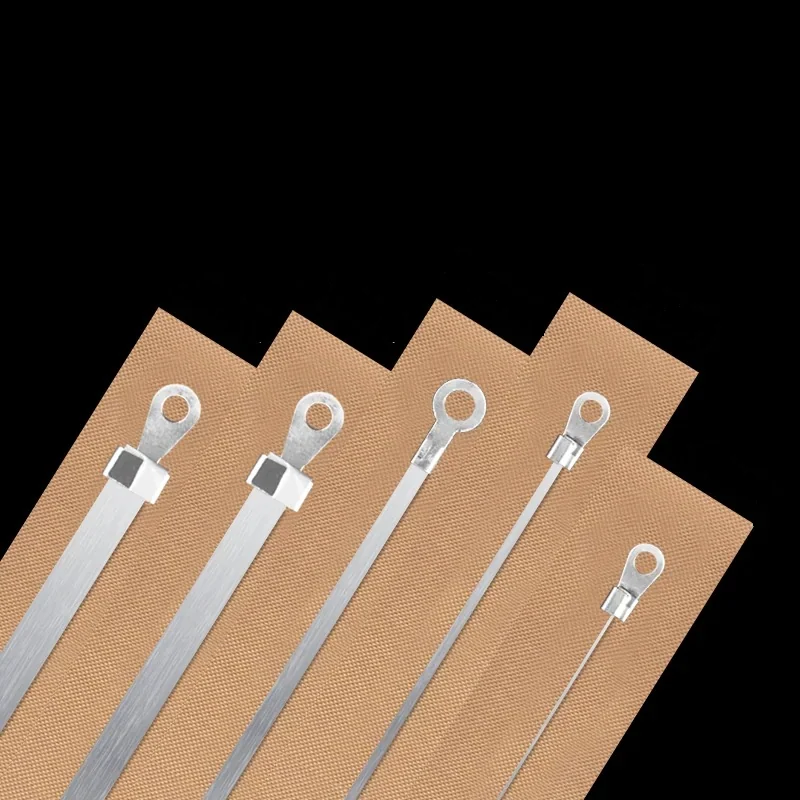

Replacement service packs for 200-, 300- and 400-size hand sealers, including heating wires and separate insulating-cloth packs.

  • Element and cloth service options
  • Separate ten-piece cloth packs
  • Model-specific strip lengths
Request a Quote -> Custom Size ->
Product Overview

Impulse Sealer Replacement Service Packs Supplier

These packs support routine jaw maintenance rather than a complete machine replacement. Match the element's terminal geometry and the insulating strip's coverage. Separate cloth packs are useful when a service team changes the release layer more often than the heating element.

Technical Specifications

Product Parameters

Material and construction Heating elements and PTFE-coated insulating cloth
Standard formats 200 model; length 24 CM 0.6 mm Cutting wire + PTFE cloth; 200 model; length 24 CM 2 mm Sealing strip + PTFE cloth; 200 model; length 24 CM 3 mm Sealing strip + PTFE cloth; 18 listed formats
Ordering model HT-030
Price Request a Quote
Construction options Element and cloth service options; Separate ten-piece cloth packs; Model-specific strip lengths
MOQ Quoted by the selected supply unit and quantity
Packaging Cut pieces protected from deformation and packed in cartons.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-030-001 200 model; length 24 CM 0.6 mm Cutting wire + PTFE cloth Heating elements and PTFE-coated insulating cloth Pack / cut part Request a Quote
HT-030-002 200 model; length 24 CM 2 mm Sealing strip + PTFE cloth Heating elements and PTFE-coated insulating cloth Pack / cut part Request a Quote
HT-030-003 200 model; length 24 CM 3 mm Sealing strip + PTFE cloth Heating elements and PTFE-coated insulating cloth Pack / cut part Request a Quote
HT-030-004 200 model; length 24 CM 5 mm Sealing strip + PTFE cloth Heating elements and PTFE-coated insulating cloth Pack / cut part Request a Quote
HT-030-005 200 model; length 24 CM 8 mm Sealing strip + PTFE cloth Heating elements and PTFE-coated insulating cloth Pack / cut part Request a Quote
HT-030-006 300 model; length 34 CM 0.6 mm Cutting wire + PTFE cloth Heating elements and PTFE-coated insulating cloth Pack / cut part Request a Quote
HT-030-007 300 model; length 34 CM 2 mm Sealing strip + PTFE cloth Heating elements and PTFE-coated insulating cloth Pack / cut part Request a Quote
HT-030-008 300 model; length 34 CM 3 mm Sealing strip + PTFE cloth Heating elements and PTFE-coated insulating cloth Pack / cut part Request a Quote
HT-030-009 300 model; length 34 CM 5 mm Sealing strip + PTFE cloth Heating elements and PTFE-coated insulating cloth Pack / cut part Request a Quote
HT-030-010 300 model; length 34 CM 8 mm Sealing strip + PTFE cloth Heating elements and PTFE-coated insulating cloth Pack / cut part Request a Quote
HT-030-011 400 model; length 45.5 CM 0.6 mm Cutting wire + PTFE cloth Heating elements and PTFE-coated insulating cloth Pack / cut part Request a Quote
HT-030-012 400 model; length 45.5 CM 2 mm Sealing strip + PTFE cloth Heating elements and PTFE-coated insulating cloth Pack / cut part Request a Quote
HT-030-013 400 model; length 45.5 CM 3 mm Sealing strip + PTFE cloth Heating elements and PTFE-coated insulating cloth Pack / cut part Request a Quote
HT-030-014 400 model; length 45.5 CM 5 mm Sealing strip + PTFE cloth Heating elements and PTFE-coated insulating cloth Pack / cut part Request a Quote
HT-030-015 400 model; length 45.5 CM 8 mm Sealing strip + PTFE cloth Heating elements and PTFE-coated insulating cloth Pack / cut part Request a Quote
HT-030-016 200 model; PTFE cloth 10 pads 22 × 3.5 cm Heating elements and PTFE-coated insulating cloth Listed pack Request a Quote
HT-030-017 300 model; PTFE cloth 10 pads 32 × 3.5 cm Heating elements and PTFE-coated insulating cloth Listed pack Request a Quote
HT-030-018 400 model; PTFE cloth 10 pads 44 × 3.5 cm Heating elements and PTFE-coated insulating cloth Listed pack Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Hand sealer servicing
  • Packaging workshop spares
  • Planned jaw maintenance
Customization Options

Impulse Sealer Replacement Service Packs Ordering Options

Send Requirement ->

For Impulse Sealer Replacement Service Packs, specify finished thickness, width, cut outline and the required quantity.

  • Dimensions and construction Specify finished thickness, width, cut outline and the required quantity.
  • Material Heating elements and PTFE-coated insulating cloth
  • Supply and packing Cut pieces protected from deformation and packed in cartons.
FAQ

Frequently Asked Questions

Which service-pack lengths match the listed impulse-sealer model groups?

Element-and-cloth entries use 24 cm elements for the 200 model, 34 cm for the 300 model and 45.5 cm for the 400 model. Flat sealing-strip widths of 2, 3, 5 and 8 mm and 0.6 mm cutting-wire entries are listed separately.

Can I request PTFE cloth without a heating element?

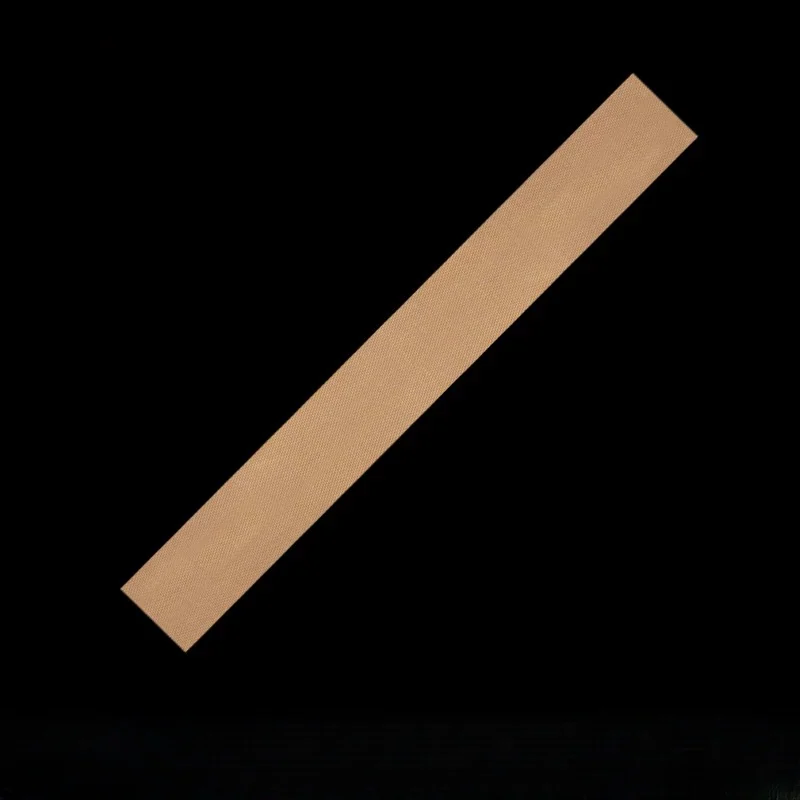

Yes. Separate ten-pad cloth packs are listed at 22 × 3.5 cm for the 200 model, 32 × 3.5 cm for the 300 model and 44 × 3.5 cm for the 400 model. Choose a cloth-only entry rather than an element-and-cloth entry.

What material is used for Impulse Sealer Replacement Service Packs?

The specified material is heating elements and PTFE-coated insulating cloth.

What should I include in a quotation request?

For model HT-030, send the selected SKU and order quantity. Include model group, element-and-cloth or cloth-only pack, element dimensions and pack quantity. Pricing is by quotation for the selected specification and quantity.
