Impulse Sealer Heating Element and Strip Kits

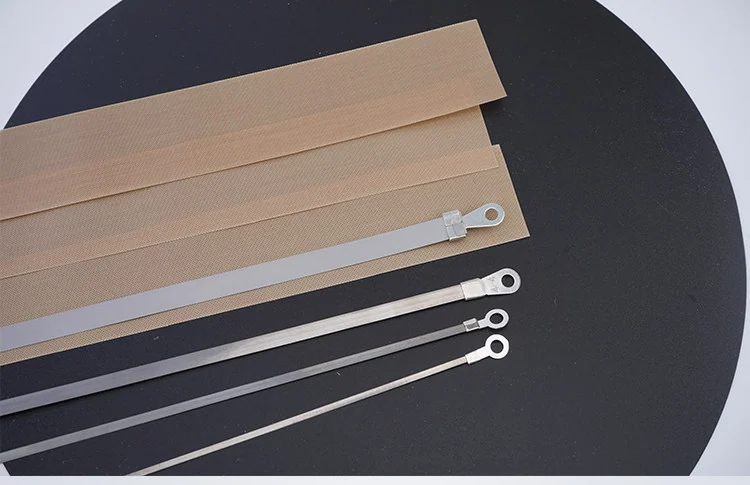

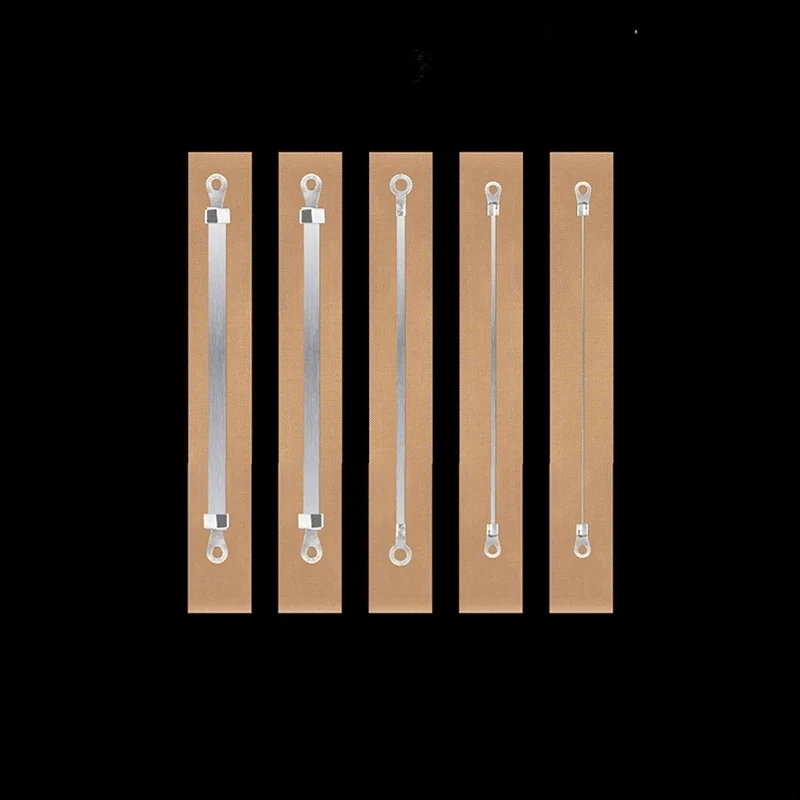

Flat heating elements and round cutting wires with insulating cloth for 200-, 300- and 400-size impulse sealers.

  • Flat-strip width options
  • Round cutting wire formats
  • Insulating cloth included in listed kits
Request a Quote -> Custom Size ->
Product Overview

Impulse Sealer Heating Element and Strip Kits Supplier

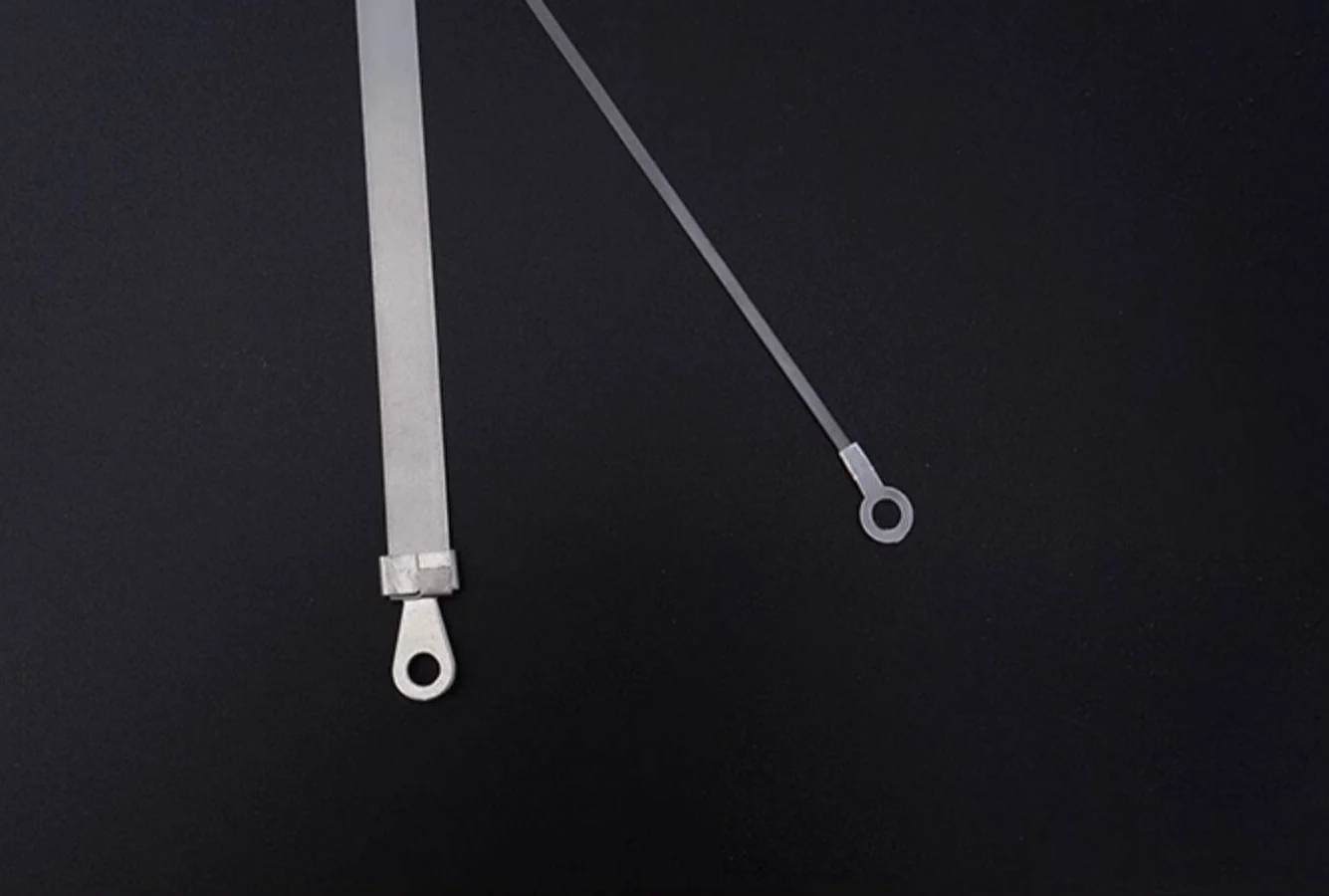

Flat elements make a wider fused seam; round wires are used where cutting is part of the operation. Terminal spacing and actual element length determine fit more reliably than a model number alone. Install the insulating cloth flat and keep the heating element aligned across the jaw.

Technical Specifications

Product Parameters

Material and construction Resistance heating strip with PTFE insulating cloth
Standard formats 200 model; 2 mm Flat strip × 24 cm + Insulating cloth; 200 model; 3 mm Flat strip × 24 cm + Insulating cloth; 200 model; 5 mm Flat strip × 24 cm + Insulating cloth; 15 listed formats
Ordering model HT-028
Price Request a Quote
Construction options Flat-strip width options; Round cutting wire formats; Insulating cloth included in listed kits
MOQ Quoted by the selected supply unit and quantity
Packaging Cut pieces protected from deformation and packed in cartons.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-028-001 200 model; 2 mm Flat strip × 24 cm + Insulating cloth Resistance heating strip with PTFE insulating cloth Pack / cut part Request a Quote
HT-028-002 200 model; 3 mm Flat strip × 24 cm + Insulating cloth Resistance heating strip with PTFE insulating cloth Pack / cut part Request a Quote
HT-028-003 200 model; 5 mm Flat strip × 24 cm + Insulating cloth Resistance heating strip with PTFE insulating cloth Pack / cut part Request a Quote
HT-028-004 200 model; 8 mm Flat strip × 24 cm + Insulating cloth Resistance heating strip with PTFE insulating cloth Pack / cut part Request a Quote
HT-028-005 200 model; 0.6 mm Cutting Round wire × 24 cm + Insulating cloth Resistance heating strip with PTFE insulating cloth Pack / cut part Request a Quote
HT-028-006 300 model; 2 mm Flat strip × 34 cm + Insulating cloth Resistance heating strip with PTFE insulating cloth Pack / cut part Request a Quote
HT-028-007 300 model; 3 mm Flat strip × 34 cm + Insulating cloth Resistance heating strip with PTFE insulating cloth Pack / cut part Request a Quote
HT-028-008 300 model; 5 mm Single-seal; Flat strip × 34 cm + Insulating cloth Resistance heating strip with PTFE insulating cloth Pack / cut part Request a Quote
HT-028-009 300 model; 8 mm Flat strip × 34 cm + Insulating cloth Resistance heating strip with PTFE insulating cloth Pack / cut part Request a Quote
HT-028-010 300 model; 0.6 mm Cutting Round wire × 34 cm + Insulating cloth Resistance heating strip with PTFE insulating cloth Pack / cut part Request a Quote
HT-028-011 400 model; 2 mm Flat strip × 45.5 cm + Insulating cloth Resistance heating strip with PTFE insulating cloth Pack / cut part Request a Quote
HT-028-012 400 model; 3 mm Flat strip × 45.5 cm + Insulating cloth Resistance heating strip with PTFE insulating cloth Pack / cut part Request a Quote
HT-028-013 400 model; 5 mm Heating strip 45.5 cm with insulating cloth Resistance heating strip with PTFE insulating cloth Pack / cut part Request a Quote
HT-028-014 400 model; 8 mm Heating strip 45.5 cm with insulating cloth Resistance heating strip with PTFE insulating cloth Pack / cut part Request a Quote
HT-028-015 400 model; 0.6 mm Cutting Round wire × 45.5 cm + Insulating cloth Resistance heating strip with PTFE insulating cloth Pack / cut part Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

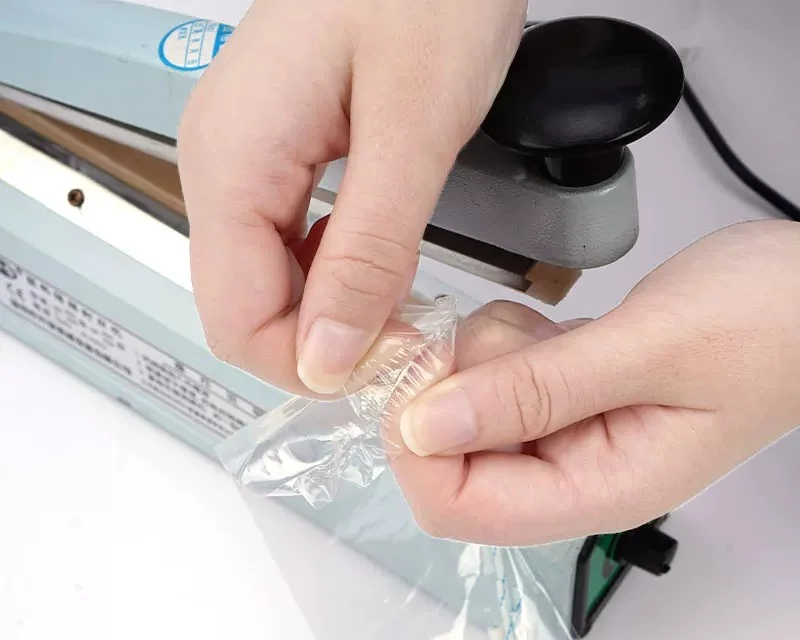

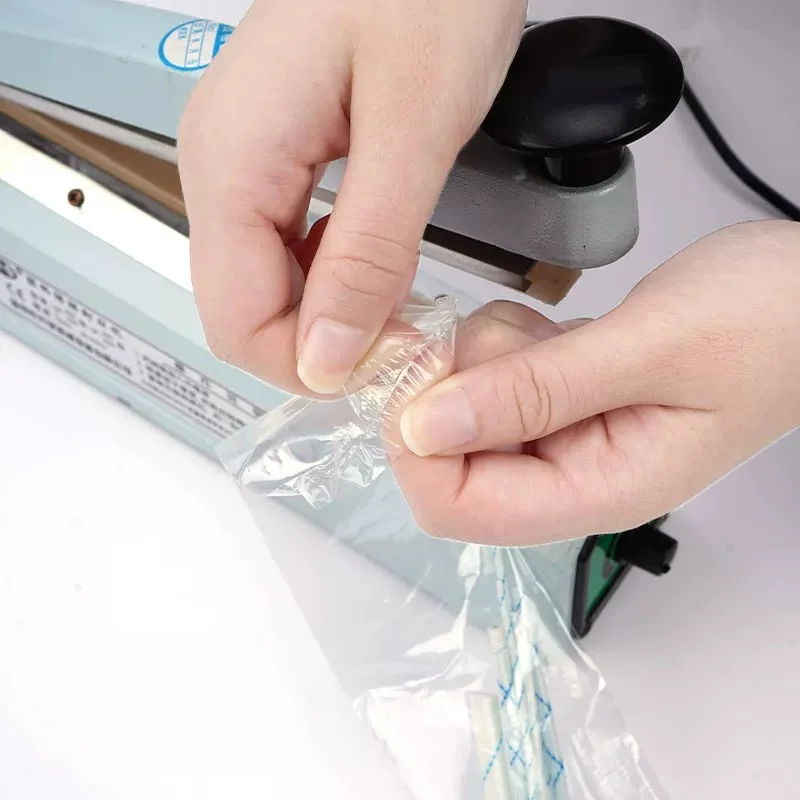

  • Impulse sealer repairs
  • Bag sealing stations
  • Film cutting maintenance
Customization Options

Impulse Sealer Heating Element and Strip Kits Ordering Options

Send Requirement ->

For Impulse Sealer Heating Element and Strip Kits, specify finished thickness, width, cut outline and the required quantity.

  • Dimensions and construction Specify finished thickness, width, cut outline and the required quantity.
  • Material Resistance heating strip with PTFE insulating cloth
  • Supply and packing Cut pieces protected from deformation and packed in cartons.
FAQ

Frequently Asked Questions

Which model and element lengths are listed for the heating-strip kits?

The listed 200-model kits use 24 cm elements, 300-model kits use 34 cm elements, and 400-model kits use 45.5 cm elements. Each description includes insulating cloth. Select the model and actual element length together.

Are flat sealing strips and round cutting wires separate kit options?

Yes. Flat strips are listed in 2, 3, 5 and 8 mm widths, while the cutting-wire entries specify 0.6 mm round wire. These are separate entries within each model group; identify the required strip or wire construction.

What material is used for Impulse Sealer Heating Element and Strip Kits?

The specified material is resistance heating strip with PTFE insulating cloth.

What should I include in a quotation request?

For model HT-028, send the selected SKU and order quantity. Include 200, 300 or 400 model, element length and flat-strip width or round-wire diameter. Pricing is by quotation for the selected specification and quantity.
