C-Glass Woven Reinforcement Fabric

C-glass woven fabric in 0.13–0.6 mm formats for reinforcement layers, industrial wrapping and equipment insulation assemblies.

  • C-glass woven construction
  • 1000 and 1250 mm listed widths
  • Fine through heavy fabric gauges
Request a Quote -> Custom Size ->
Product Overview

C-Glass Woven Reinforcement Fabric Supplier

This medium-alkali glass weave is distinct from E-glass electrical fabric. Thickness and roll width determine the laminate build and cutting layout. For resin reinforcement, choose a weave that wets out and conforms to the part; for electrical work, choose the glass type within the insulation-system design.

Technical Specifications

Product Parameters

Material and construction Medium-alkali C-glass fiber yarn
Standard formats 0.13 mm/1 m width; 0.13 mm/1.25 m width; 0.14 mm/1 m width; 14 listed formats
Ordering model HT-019
Price Request a Quote
Construction options C-glass woven construction; 1000 and 1250 mm listed widths; Fine through heavy fabric gauges
MOQ Quoted by the selected supply unit and quantity

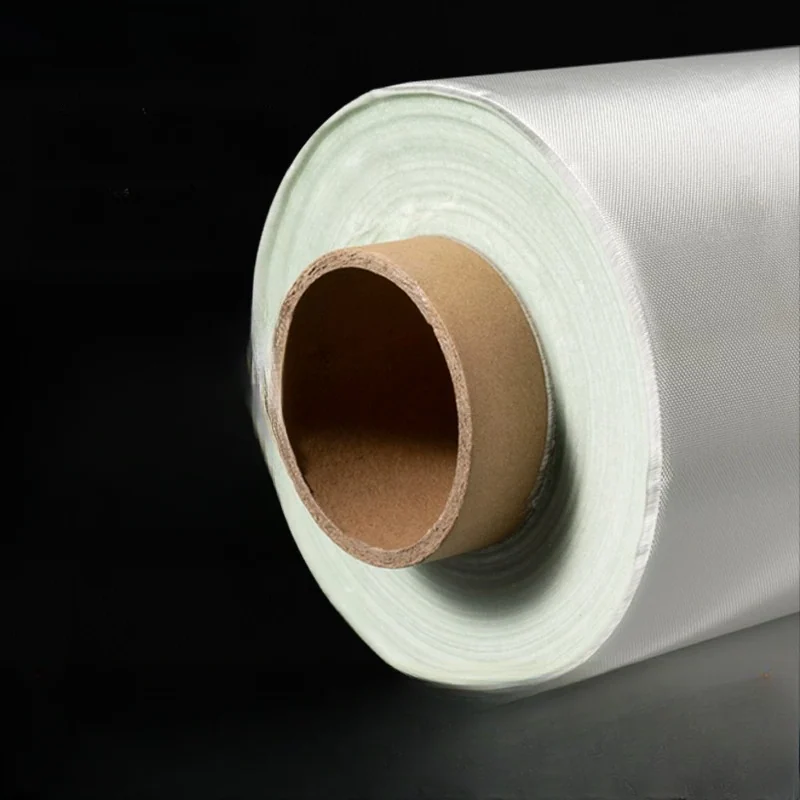

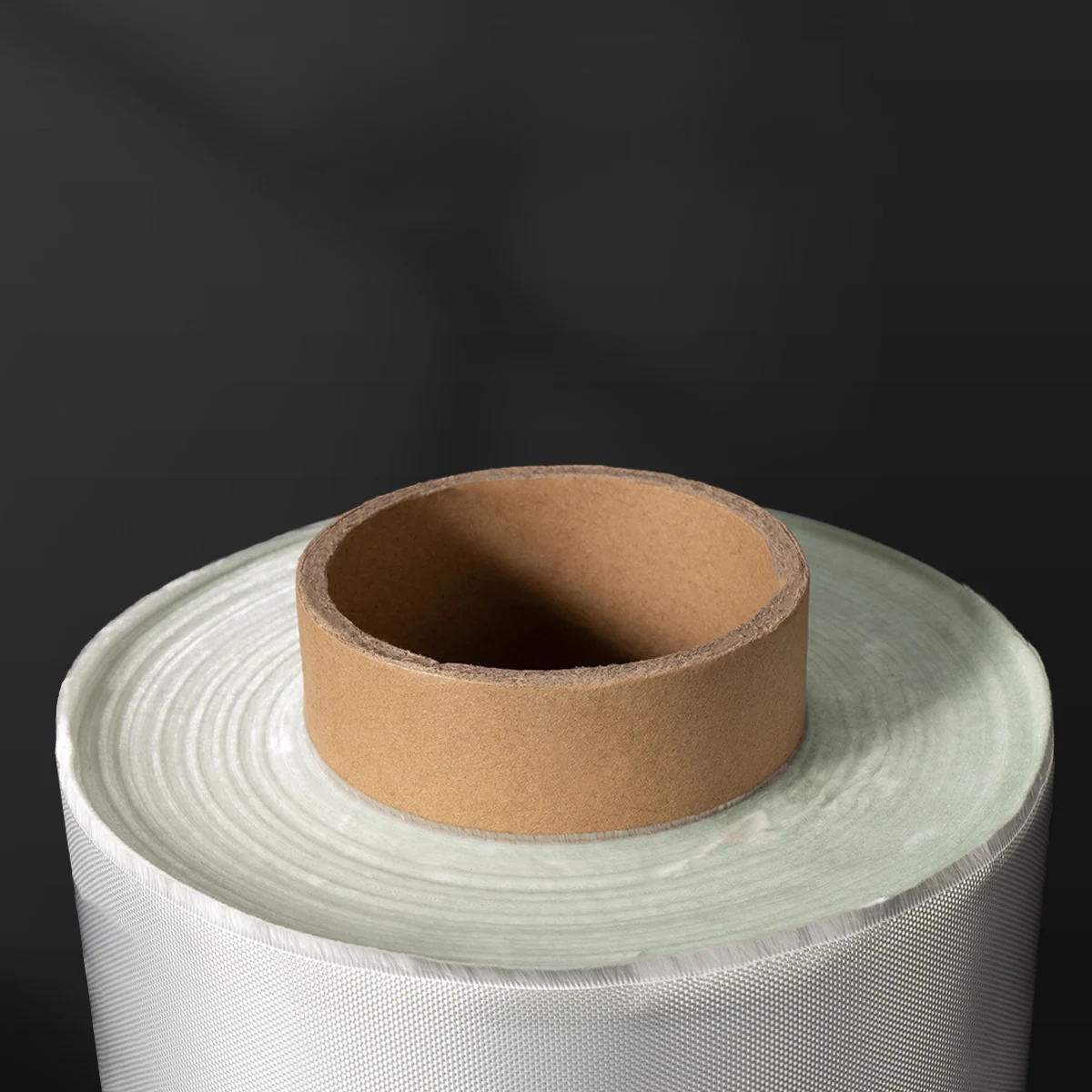

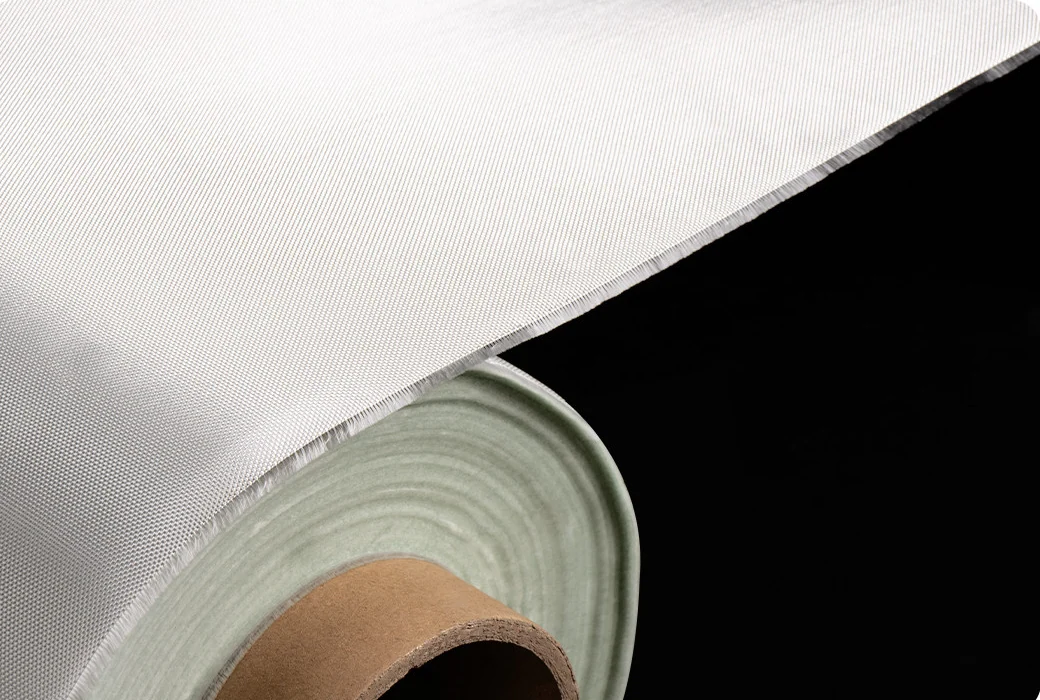

Packaging Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-019-P001 0.13 mm/1 m width Medium-alkali C-glass fiber yarn Roll / cut length Request a Quote
HT-019-P002 0.13 mm/1.25 m width Medium-alkali C-glass fiber yarn Roll / cut length Request a Quote
HT-019-P003 0.14 mm/1 m width Medium-alkali C-glass fiber yarn Roll / cut length Request a Quote
HT-019-P004 0.15 mm/1 m width Medium-alkali C-glass fiber yarn Roll / cut length Request a Quote
HT-019-P005 0.15 mm/1.25 m width Medium-alkali C-glass fiber yarn Roll / cut length Request a Quote
HT-019-P006 0.2 mm/1 m width Medium-alkali C-glass fiber yarn Roll / cut length Request a Quote
HT-019-P007 0.2 mm/1.25 m width Medium-alkali C-glass fiber yarn Roll / cut length Request a Quote
HT-019-P008 0.22 mm/1 m width Medium-alkali C-glass fiber yarn Roll / cut length Request a Quote
HT-019-P009 0.26 mm/1 m width Medium-alkali C-glass fiber yarn Roll / cut length Request a Quote
HT-019-P010 0.26 mm/1.25 m width Medium-alkali C-glass fiber yarn Roll / cut length Request a Quote
HT-019-P011 0.3 mm/1 m width Medium-alkali C-glass fiber yarn Roll / cut length Request a Quote
HT-019-P012 0.4 mm/1 m width Medium-alkali C-glass fiber yarn Roll / cut length Request a Quote
HT-019-P013 0.5 mm/1 m width Medium-alkali C-glass fiber yarn Roll / cut length Request a Quote
HT-019-P014 0.6 mm/1 m width Medium-alkali C-glass fiber yarn Roll / cut length Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Composite reinforcement
  • Industrial insulation wraps
  • Equipment protective layers
Customization Options

C-Glass Woven Reinforcement Fabric Ordering Options

Send Requirement ->

For C-Glass Woven Reinforcement Fabric, specify finished thickness, width, cut outline and the required quantity.

  • Dimensions and construction Specify finished thickness, width, cut outline and the required quantity.
  • Material Medium-alkali C-glass fiber yarn
  • Supply and packing Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
FAQ

Frequently Asked Questions

Which widths and thicknesses are listed for C-glass reinforcement fabric?

The table lists selected gauges from 0.13 to 0.6 mm at 1 m width. Separate 1.25 m-wide entries are listed at 0.13, 0.15, 0.2 and 0.26 mm thickness. Wider supply is not listed for every gauge.

Is the listed reinforcement fabric C-glass or E-glass?

This product is specified as medium-alkali C-glass fiber yarn with woven construction. E-glass is not the material named for these entries; retain the C-glass designation in the quotation request.

What material is used for C-Glass Woven Reinforcement Fabric?

The specified material is medium-alkali C-glass fiber yarn.

What should I include in a quotation request?

For model HT-019, send the selected SKU and order quantity. Include C-glass thickness, width and cut length. Pricing is by quotation for the selected specification and quantity.
