Adhesive Fish Paper Battery Insulation Pads

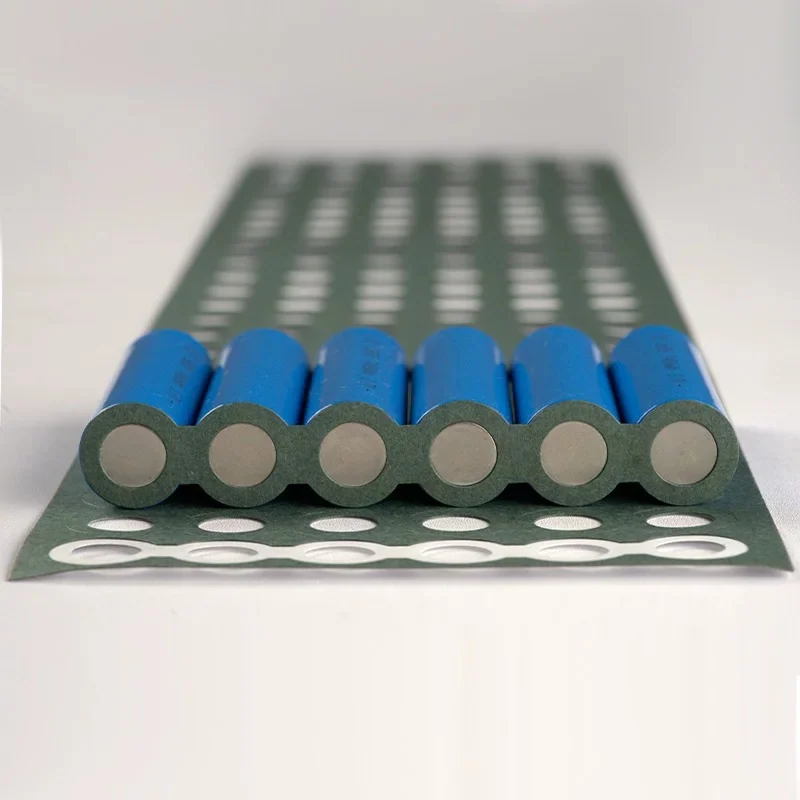

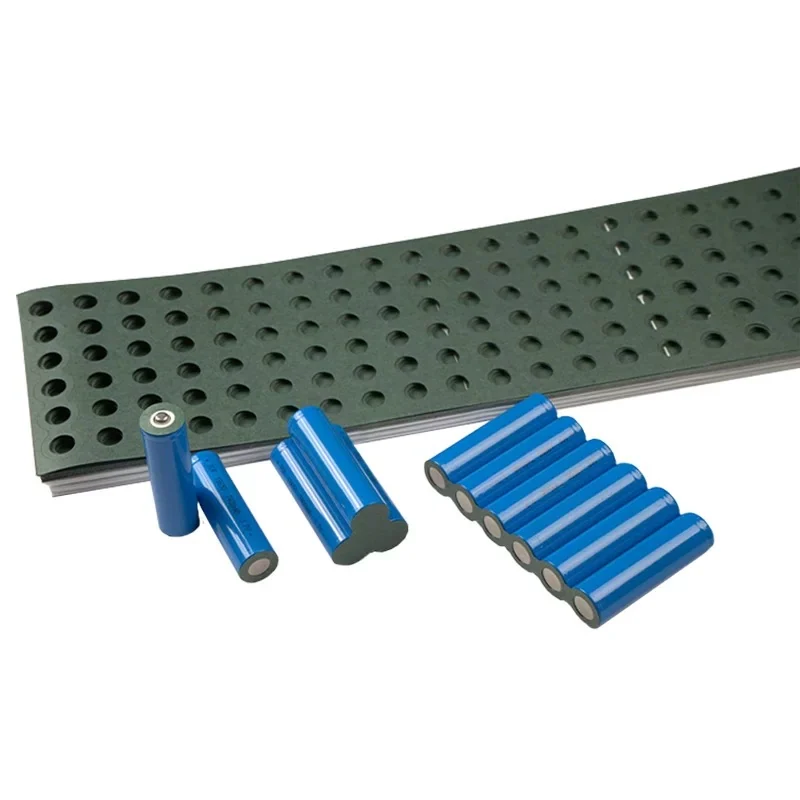

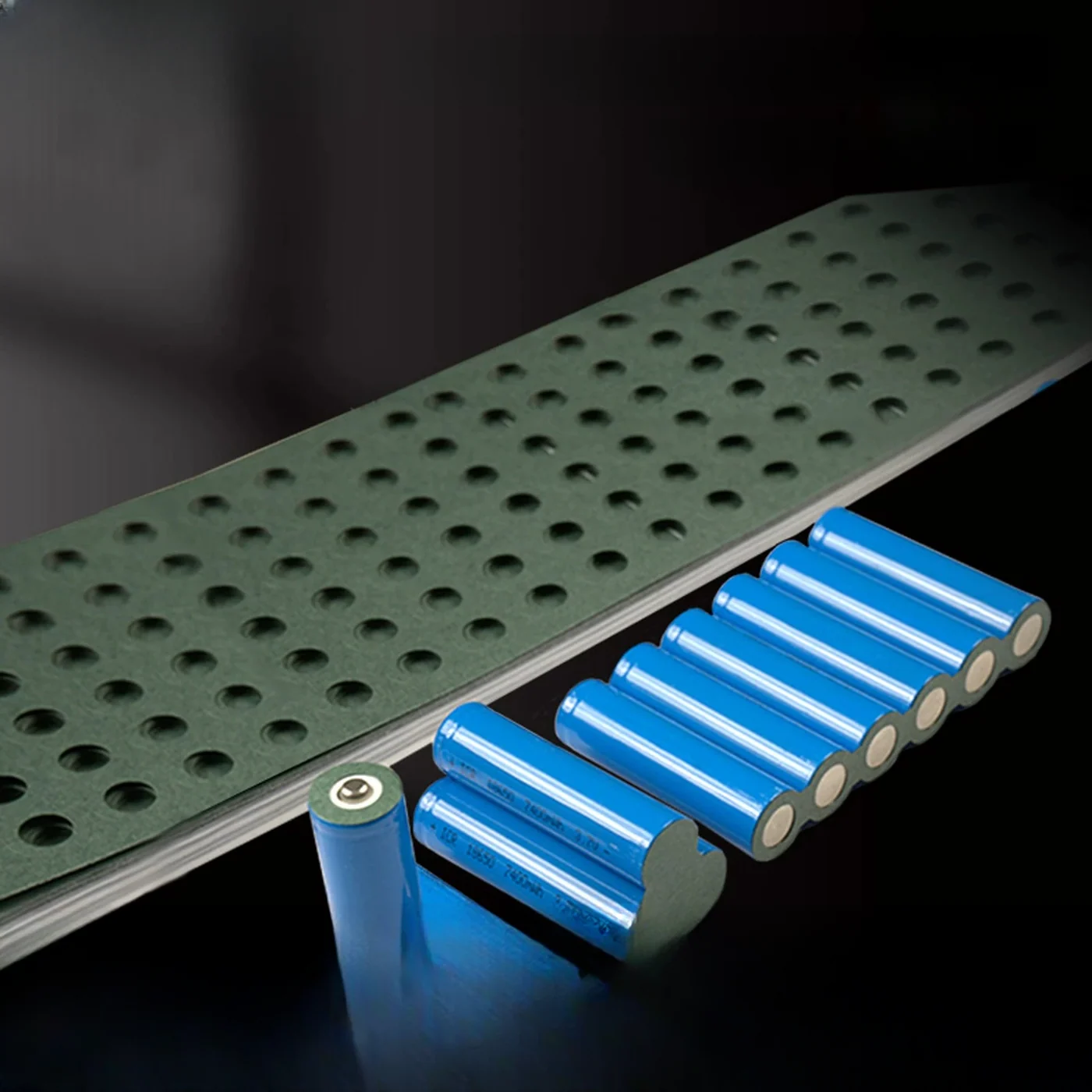

Fish paper insulation rings and solid pads for 18650 cell tops and multicell battery assembly layouts.

  • Cell-top rings and solid pads
  • Single and multicell layouts
  • Adhesive-backed positioning
Request a Quote -> Custom Size ->
Product Overview

Adhesive Fish Paper Battery Insulation Pads Supplier

These die-cut barriers separate exposed cell ends from adjacent conductive parts. Ring apertures and multicell pitch must match the pack layout; a cell size alone does not define every pad. Specify the exact outline and the covered conductive surfaces, especially where a pad spans several cells.

Technical Specifications

Product Parameters

Material and construction Adhesive-backed electrical fish paper
Standard formats Single-cell ring pads; 100 pads; one cell per pad; Five-cell linked layout, three rows; 30 solid pads; Two-cell solid pads; 50 pads; 9 listed formats
Ordering model HT-074
Price Request a Quote
Construction options Cell-top rings and solid pads; Single and multicell layouts; Adhesive-backed positioning
MOQ Quoted by the selected supply unit and quantity
Packaging Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price

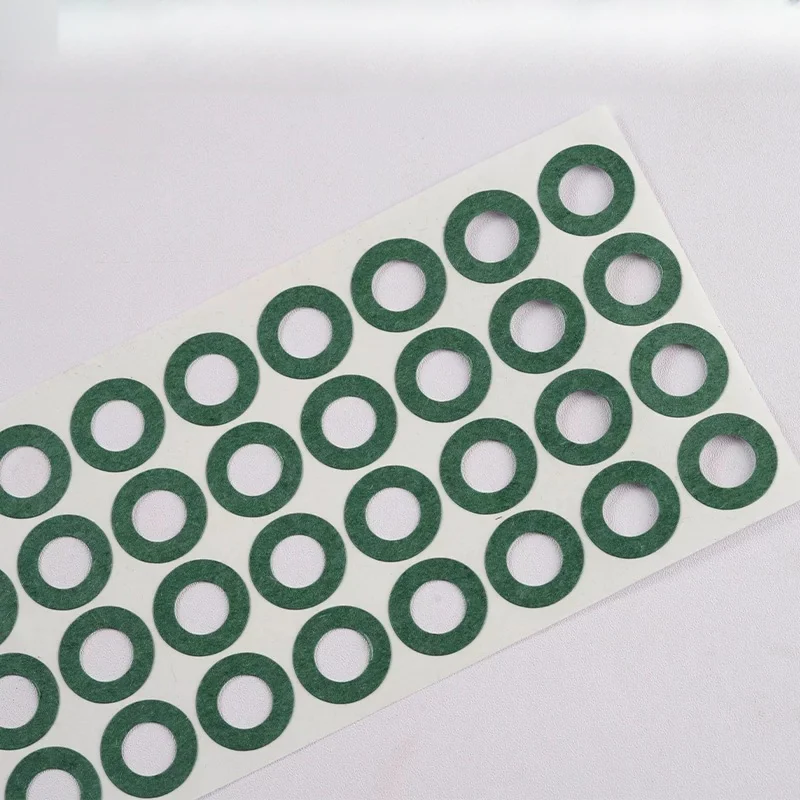

HT-074-001 Single-cell ring pads; 100 pads; one cell per pad Adhesive-backed electrical fish paper Listed pack Request a Quote
HT-074-002 Five-cell linked layout, three rows; 30 solid pads Adhesive-backed electrical fish paper Listed pack Request a Quote

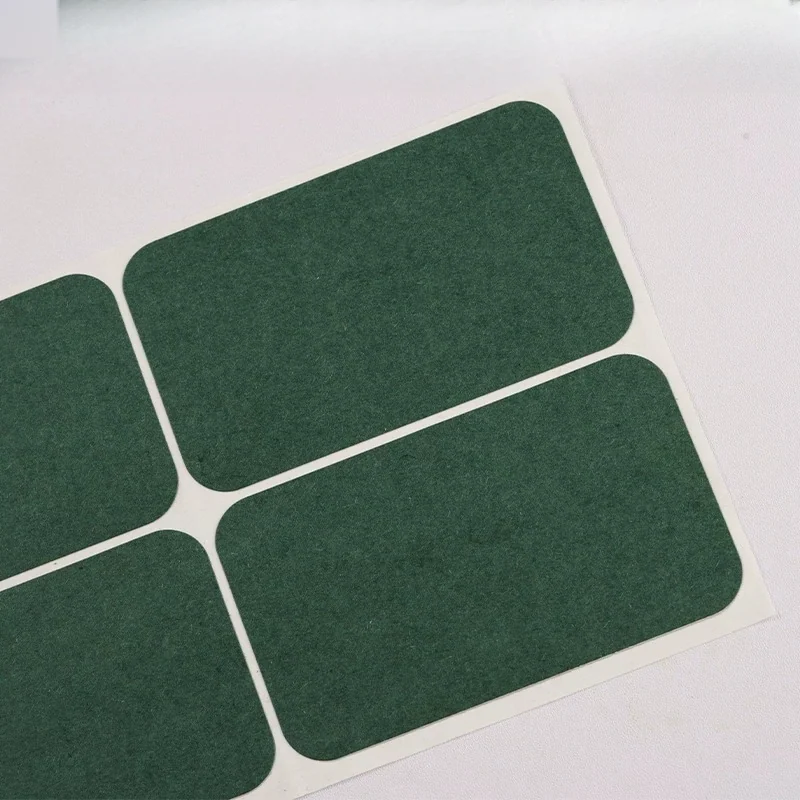

HT-074-003 Two-cell solid pads; 50 pads Adhesive-backed electrical fish paper Listed pack Request a Quote
HT-074-004 Six-cell ring layout; 30 pads Adhesive-backed electrical fish paper Listed pack Request a Quote
HT-074-005 Three-cell solid pads; 30 pads Adhesive-backed electrical fish paper Listed pack Request a Quote
HT-074-006 Three-cell ring layout; 50 pads Adhesive-backed electrical fish paper Listed pack Request a Quote
HT-074-007 Four-cell solid pads; 30 pads Adhesive-backed electrical fish paper Listed pack Request a Quote
HT-074-008 Five-cell solid pads; 30 pads Adhesive-backed electrical fish paper Listed pack Request a Quote
HT-074-009 Legacy 15-cell power-tool pack solid pad Adhesive-backed electrical fish paper Roll / cut length Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • 18650 battery pack assembly
  • Power tool pack repair
  • Cell-top electrical barriers
Customization Options

Adhesive Fish Paper Battery Insulation Pads Ordering Options

Send Requirement ->

For Adhesive Fish Paper Battery Insulation Pads, specify finished thickness, width, cut outline and the required quantity.

  • Dimensions and construction Specify finished thickness, width, cut outline and the required quantity.
  • Material Adhesive-backed electrical fish paper
  • Supply and packing Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
FAQ

Frequently Asked Questions

Which ring and solid-pad layouts are listed for battery insulation?

Entries include single-cell ring pads, multicell ring layouts and solid-pad layouts. Examples are 100 single-cell ring pads, 50 two-cell solid pads, 30 six-cell ring pads and a legacy 15-cell power-tool solid-pad entry. Select the exact layout and pack description.

Does the pad layout description give exact cell spacing and cut dimensions?

No. The table identifies cell grouping, pad type and some pack counts, but does not give exact cell pitch or outer dimensions. Provide the required outline and aperture drawing for the selected ring or solid-pad layout.

What material is used for Adhesive Fish Paper Battery Insulation Pads?

The specified material is adhesive-backed electrical fish paper.

What should I include in a quotation request?

For model HT-074, send the selected SKU and order quantity. Include ring or solid-pad layout, cell grouping, aperture and outer dimensions, and pack quantity. Pricing is by quotation for the selected specification and quantity.
