6520 Unlaminated Green Insulation Paper

6520-style unlaminated green insulating paper and dense sheet formats for electrical barriers and punched separators.

  • Non-adhesive unlaminated stock

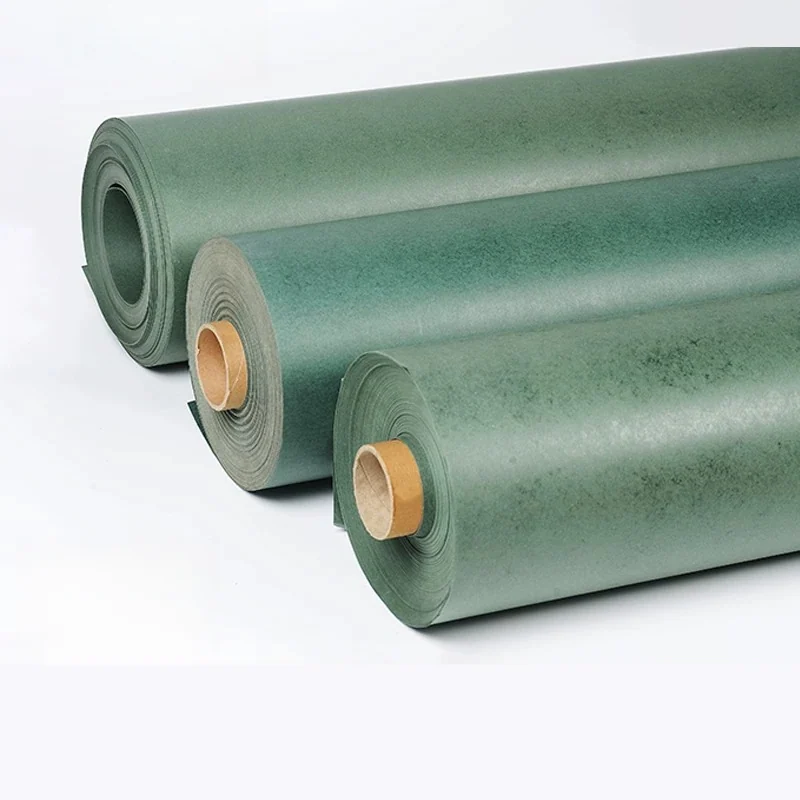

  • Roll and dense-sheet formats
  • Thin through heavier separators
Request a Quote -> Custom Size ->
Product Overview

6520 Unlaminated Green Insulation Paper Supplier

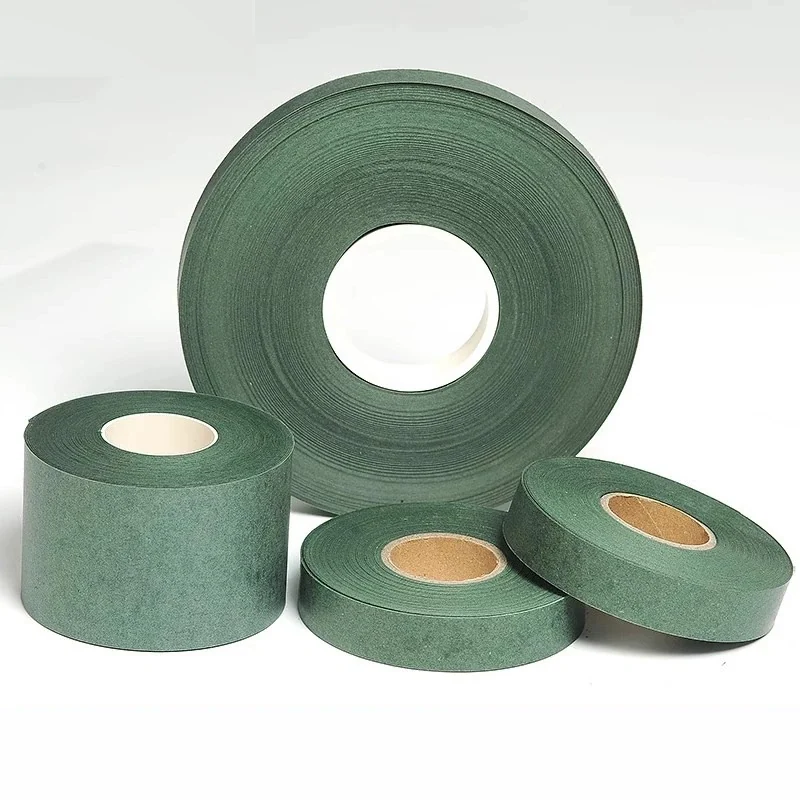

The non-adhesive paper is held by the assembly or converted into fitted parts. Roll widths suit repeated slitting while dense sheets serve thicker separators. Choose thickness with forming and edge coverage in mind, and keep the part supported where screws, clips or metal edges contact it.

Technical Specifications

Product Parameters

Material and construction Unlaminated cellulose electrical paper
Standard formats Unlaminated; 0.1 mm thickness × width 1 m × per meter × Non-adhesive; Unlaminated; 0.15 mm thickness × width 1 m × per meter × Non-adhesive; Unlaminated; 0.17 mm thickness × width 1 m × per meter × Non-adhesive; 38 listed formats
Ordering model HT-075
Price Request a Quote
Construction options Non-adhesive unlaminated stock; Roll and dense-sheet formats; Thin through heavier separators
MOQ Quoted by the selected supply unit and quantity
Packaging Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-075-001 Unlaminated; 0.1 mm thickness × width 1 m × per meter × Non-adhesive Unlaminated cellulose electrical paper Roll / cut length Request a Quote
HT-075-002 Unlaminated; 0.15 mm thickness × width 1 m × per meter × Non-adhesive Unlaminated cellulose electrical paper Roll / cut length Request a Quote
HT-075-003 Unlaminated; 0.17 mm thickness × width 1 m × per meter × Non-adhesive Unlaminated cellulose electrical paper Roll / cut length Request a Quote
HT-075-004 Unlaminated; 0.2 mm thickness × width 1 m × per meter × Non-adhesive Unlaminated cellulose electrical paper Roll / cut length Request a Quote
HT-075-005 Unlaminated; 0.25 mm thickness × width 1 m × per meter × Non-adhesive Unlaminated cellulose electrical paper Roll / cut length Request a Quote
HT-075-006 Unlaminated; 0.30 mm thickness × width 1 m × per meter × Non-adhesive Unlaminated cellulose electrical paper Roll / cut length Request a Quote
HT-075-007 Unlaminated; 0.4 mm thickness × width 1 m × per meter × Non-adhesive Unlaminated cellulose electrical paper Roll / cut length Request a Quote
HT-075-008 Unlaminated; 0.5 mm thickness × width 1 m × per meter × Non-adhesive Unlaminated cellulose electrical paper Roll / cut length Request a Quote
HT-075-009 Flame-retardant variant; Unlaminated; 0.2 mm thickness × 1 m width × 1 m length Unlaminated cellulose electrical paper Roll / cut length Request a Quote
HT-075-010 Flame-retardant variant; Unlaminated; 0.25 mm thickness × 1 m width × 1 m length Unlaminated cellulose electrical paper Roll / cut length Request a Quote
HT-075-011 Flame-retardant variant; Unlaminated; 0.35 mm thickness × 1 m width × 1 m length Unlaminated cellulose electrical paper Roll / cut length Request a Quote
HT-075-012 Film-laminated; 0.15 mm thickness × width 1 m × per meter × Non-adhesive Film-laminated cellulose fish paper Roll / cut length Request a Quote
HT-075-013 Film-laminated; 0.2 mm thickness × width 1 m × per meter × Non-adhesive Film-laminated cellulose fish paper Roll / cut length Request a Quote
HT-075-014 Film-laminated; 0.25 mm thickness × width 1 m × per meter × Non-adhesive Film-laminated cellulose fish paper Roll / cut length Request a Quote
HT-075-015 Film-laminated; 0.3 mm thickness × width 1 m × per meter × Non-adhesive Film-laminated cellulose fish paper Roll / cut length Request a Quote
HT-075-016 Film-laminated; 0.4 mm thickness × width 1 m × per meter × Non-adhesive Film-laminated cellulose fish paper Roll / cut length Request a Quote
HT-075-017 Film-laminated; 0.5 mm thickness × width 1 m × per meter × Non-adhesive Film-laminated cellulose fish paper Roll / cut length Request a Quote
HT-075-018 Unlaminated, adhesive-backed; 0.15 mm thickness width 1 m × per meter × Single adhesive backing Unlaminated cellulose fish paper with adhesive backing Roll / cut length Request a Quote
HT-075-019 Unlaminated, adhesive-backed; 0.2 mm thickness × width 1 m × per meter × Single adhesive backing Unlaminated cellulose fish paper with adhesive backing Roll / cut length Request a Quote
HT-075-020 Unlaminated, adhesive-backed; 0.25 mm thickness × width 1 m × per meter × Single adhesive backing Unlaminated cellulose fish paper with adhesive backing Roll / cut length Request a Quote
HT-075-021 Unlaminated, adhesive-backed; 0.3 mm thickness × width 1 m × per meter × Single adhesive backing Unlaminated cellulose fish paper with adhesive backing Roll / cut length Request a Quote
HT-075-022 Unlaminated, adhesive-backed; 0.4 mm thickness × width 1 m × per meter × Single adhesive backing Unlaminated cellulose fish paper with adhesive backing Roll / cut length Request a Quote
HT-075-023 Unlaminated, adhesive-backed; 0.5 mm thickness × width 1 m × per meter × Single adhesive backing Unlaminated cellulose fish paper with adhesive backing Roll / cut length Request a Quote
HT-075-024 Laminated, adhesive-backed; 0.15 mm thickness × width 1 m × per meter × Single adhesive backing Film-laminated cellulose fish paper with adhesive backing Roll / cut length Request a Quote
HT-075-025 Laminated, adhesive-backed; 0.2 mm thickness × width 1 m × per meter × Single adhesive backing Film-laminated cellulose fish paper with adhesive backing Roll / cut length Request a Quote
HT-075-026 Laminated, adhesive-backed; 0.32 mm thickness × width 1 m × per meter × Single adhesive backing Film-laminated cellulose fish paper with adhesive backing Roll / cut length Request a Quote
HT-075-027 Laminated, adhesive-backed; 0.42 mm thickness × width 1 m × per meter × Single adhesive backing Film-laminated cellulose fish paper with adhesive backing Roll / cut length Request a Quote
HT-075-028 Laminated, adhesive-backed; 0.52 mm thickness × width 1 m × per meter × Single adhesive backing Film-laminated cellulose fish paper with adhesive backing Roll / cut length Request a Quote
HT-075-030 Unlaminated; 0.8 mm thickness × width 1 m × per meter × Non-adhesive Unlaminated cellulose electrical paper Roll / cut length Request a Quote
HT-075-031 High density Unlaminated; 0.3 mm thickness × m width × 1 m length Unlaminated cellulose electrical paper Roll / cut length Request a Quote
HT-075-032 High density Unlaminated; 0.5 mm thickness × 1 m width × 1 m length Unlaminated cellulose electrical paper Roll / cut length Request a Quote
HT-075-033 High density Unlaminated; 0.8 mm thickness × 1 m width × 1 m length Unlaminated cellulose electrical paper Roll / cut length Request a Quote
HT-075-034 High density Thickness 1 mm × 1 m width × 1 m length Unlaminated cellulose electrical paper Roll / cut length Request a Quote
HT-075-035 High density Thickness 1 mm × width 0.79 × length 0.91 m 1 sheet Unlaminated cellulose electrical paper Roll / cut length Request a Quote
HT-075-036 High density Thickness 1.5 mm × width 0.79 m × length 0.91 m 1 sheet Unlaminated cellulose electrical paper Roll / cut length Request a Quote
HT-075-037 High density Thickness 2 mm × width 0.79 m × length 0.91 m 1 sheet Unlaminated cellulose electrical paper Roll / cut length Request a Quote
HT-075-038 High density Thickness 2.5 mm × width 0.79 m × length 0.91 m 1 sheet Unlaminated cellulose electrical paper Roll / cut length Request a Quote
HT-075-039 High density Thickness 0.8 mm × width 0.78 m × length 0.91 m 1 sheet Unlaminated cellulose electrical paper Roll / cut length Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Motor insulation barriers
  • Punched electrical pads
  • Equipment separation layers
Customization Options

6520 Unlaminated Green Insulation Paper Ordering Options

Send Requirement ->

For 6520 Unlaminated Green Insulation Paper, specify finished thickness, width, cut outline and the required quantity.

  • Dimensions and construction Specify finished thickness, width, cut outline and the required quantity.
  • Material Unlaminated cellulose electrical paper
  • Supply and packing Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
FAQ

Frequently Asked Questions

Are all entries in the 6520 paper table unlaminated and non-adhesive?

No. The table includes non-adhesive unlaminated entries as well as separately labelled film-laminated, adhesive-backed and laminated adhesive-backed variants. Select the exact construction stated on the SKU line.

Which roll and dense-sheet formats are listed for the green insulation paper?

Many roll entries use 1 m width with a per-meter basis. Separate high-density sheets include 0.79 × 0.91 m formats at selected gauges, and a 0.78 × 0.91 m entry at 0.8 mm thickness. Gauge, dimensions and construction depend on the selected entry.

What material is used for 6520 Unlaminated Green Insulation Paper?

The specified material is unlaminated cellulose electrical paper.

What should I include in a quotation request?

For model HT-075, send the selected SKU and order quantity. Include lamination and backing construction, thickness, roll width or dense-sheet dimensions. Pricing is by quotation for the selected specification and quantity.
