Stainless Steel Filter Mesh

Woven stainless steel filter mesh for laboratory filtration, industrial screening, chemical processing, and custom cut mesh parts.

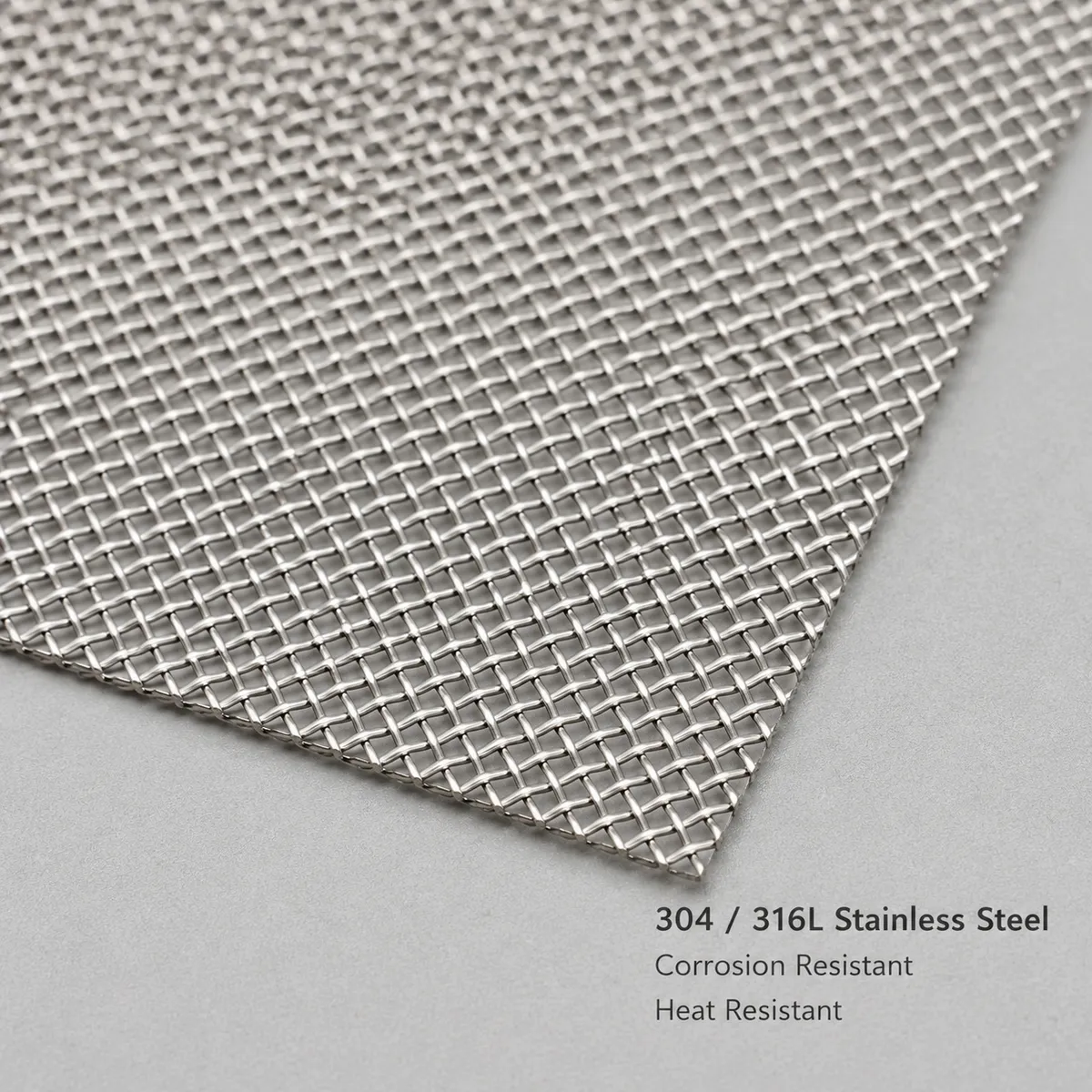

  • 304 / 316L stainless steel options

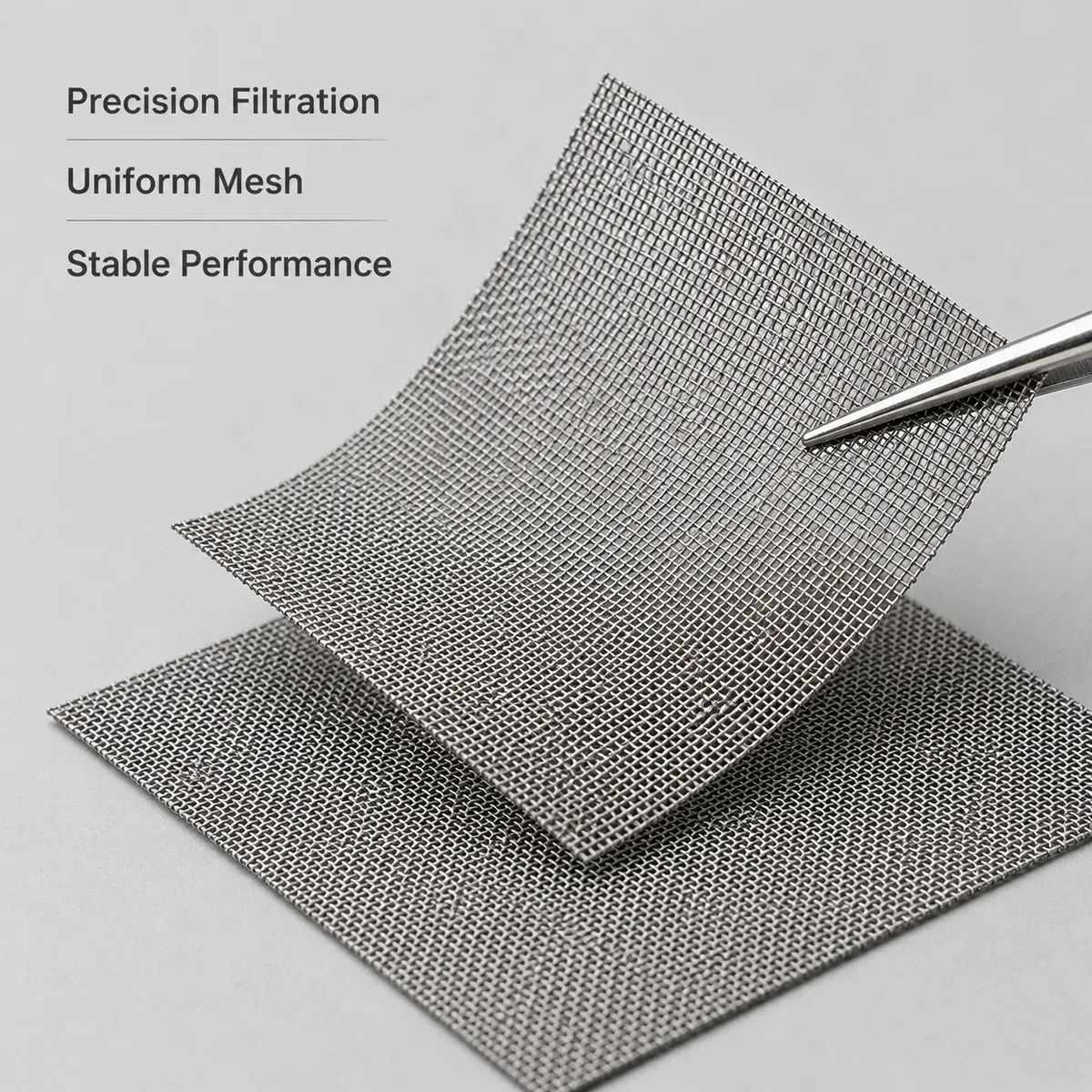

  • Uniform woven mesh openings
  • Corrosion and heat resistant
  • Available in sheets, rolls, and cut parts
  • Suitable for filtration, screening, and equipment protection
Request a Quote -> Custom Size ->
Product Overview

Stainless Steel Filter Mesh Supplier

Woven stainless steel filter mesh for laboratory filtration, industrial screening, chemical processing, and custom cut mesh parts. Typical use includes Laboratory filtration, Chemical processing, Water treatment. Woven, mesh or membrane filtration construction selected for the stated flow, screening or conveying use. Cut edges are heat-sealed, stitched or neatly trimmed according to the material and finished form. Recommended operating range: -200°C to 800°C depending on material grade, mesh structure, and working conditions

Technical Specifications

Product Parameters

Material 304 stainless steel, 316L stainless steel woven wire mesh
Temperature Range -200°C to 800°C depending on material grade, mesh structure, and working conditions
Size Options Sheets, rolls, discs, rings, strips, and custom cut shapes; common sheet size 300 x 300 mm; roll options available
Color Options Natural silver stainless steel finish
Lead Time Ready stock: 3–7 working days before shipment; custom cutting or roll orders: typically 7–15 working days.
Customization Custom mesh count, wire diameter, opening size, sheet size, roll length, cut shape, edge treatment, and packaging
MOQ Small MOQ available for standard mesh sheets; custom cutting and special mesh counts depend on size and material availability.
Packaging Carton packing, bulk packing or export packing can be discussed by order requirement.
Purchasing and Engineering Notes

Stainless Steel Filter Mesh Procurement Details

Applicable sizes and tolerance Sheets, rolls, discs, rings, strips, and custom cut shapes; common sheet size 300 x 300 mm; roll options available. Typical converting tolerance: +/-1 mm for cut parts or +/-2 mm per linear metre for roll and belt formats.
Structure, surface and edge Woven, mesh or membrane filtration construction selected for the stated flow, screening or conveying use. Cut edges are heat-sealed, stitched or neatly trimmed according to the material and finished form.
Reinforcement Reinforcement: mesh or woven structure provides airflow and shape stability for the listed application.
Material selection 304 stainless suits general industrial use; 316 is preferred when chloride exposure or stronger corrosion resistance is needed.
Recommended use temperature -200°C to 800°C depending on material grade, mesh structure, and working conditions
Packing and carton reference Rolled on core or flat-packed; 10-30 m per carton
Standard MOQ 1 m
Custom MOQ 100 m
Sample policy USD 15-30 plus freight for mesh swatches
Production cycle Stock: 3-7 days; cut panels: 7-12 days
Available test and inspection files Material declaration, mesh or pore-size reference, dimensional inspection record and packing list.
Typical purchasing teams Water-treatment integrators, filter-housing distributors, process plants, laboratories and conveyor OEMs.
Ready Stock & Standard Sizes

Available Stock Specifications

The following specifications are available for quotation. MOQ and lead time are listed by standard size and custom requirement.

Request Stock Quote
SKU / Model Size Available Specification Material MOQ Lead Time Quotation Note
SSFM-304-20M-300 300 x 300 mm 20 mesh woven wire sheet 304 stainless steel Small MOQ available for standard mesh sheets; custom cutting and special mesh counts depend on size and material availability. Ready stock: 3–7 working days before shipment; custom cutting or roll orders: typically 7–15 working days. Common stock size for filtration screens and sample cutting
SSFM-304-40M-300 300 x 300 mm 40 mesh woven wire sheet 304 stainless steel Small MOQ available for standard mesh sheets; custom cutting and special mesh counts depend on size and material availability. Ready stock: 3–7 working days before shipment; custom cutting or roll orders: typically 7–15 working days. Suitable for general particle screening and pre-filtration
SSFM-316L-60M-300 300 x 300 mm 60 mesh woven wire sheet 316L stainless steel Small MOQ available for standard mesh sheets; custom cutting and special mesh counts depend on size and material availability. Ready stock: 3–7 working days before shipment; custom cutting or roll orders: typically 7–15 working days. Better corrosion resistance for chemical and wet environments
SSFM-316L-100M-300 300 x 300 mm 100 mesh woven wire sheet 316L stainless steel Small MOQ available for standard mesh sheets; custom cutting and special mesh counts depend on size and material availability. Ready stock: 3–7 working days before shipment; custom cutting or roll orders: typically 7–15 working days. Fine mesh option for laboratory filtration and liquid screening
SSFM-ROLL-304-40M 1 m x 10 m roll 40 mesh woven wire roll 304 stainless steel Small MOQ available for standard mesh sheets; custom cutting and special mesh counts depend on size and material availability. Ready stock: 3–7 working days before shipment; custom cutting or roll orders: typically 7–15 working days. Roll format for bulk cutting, fabrication, and OEM use

Note: MOQ and lead time are based on the listed size, order quantity and packing requirement.

Send specification for quotation ->
Applications

Typical Applications

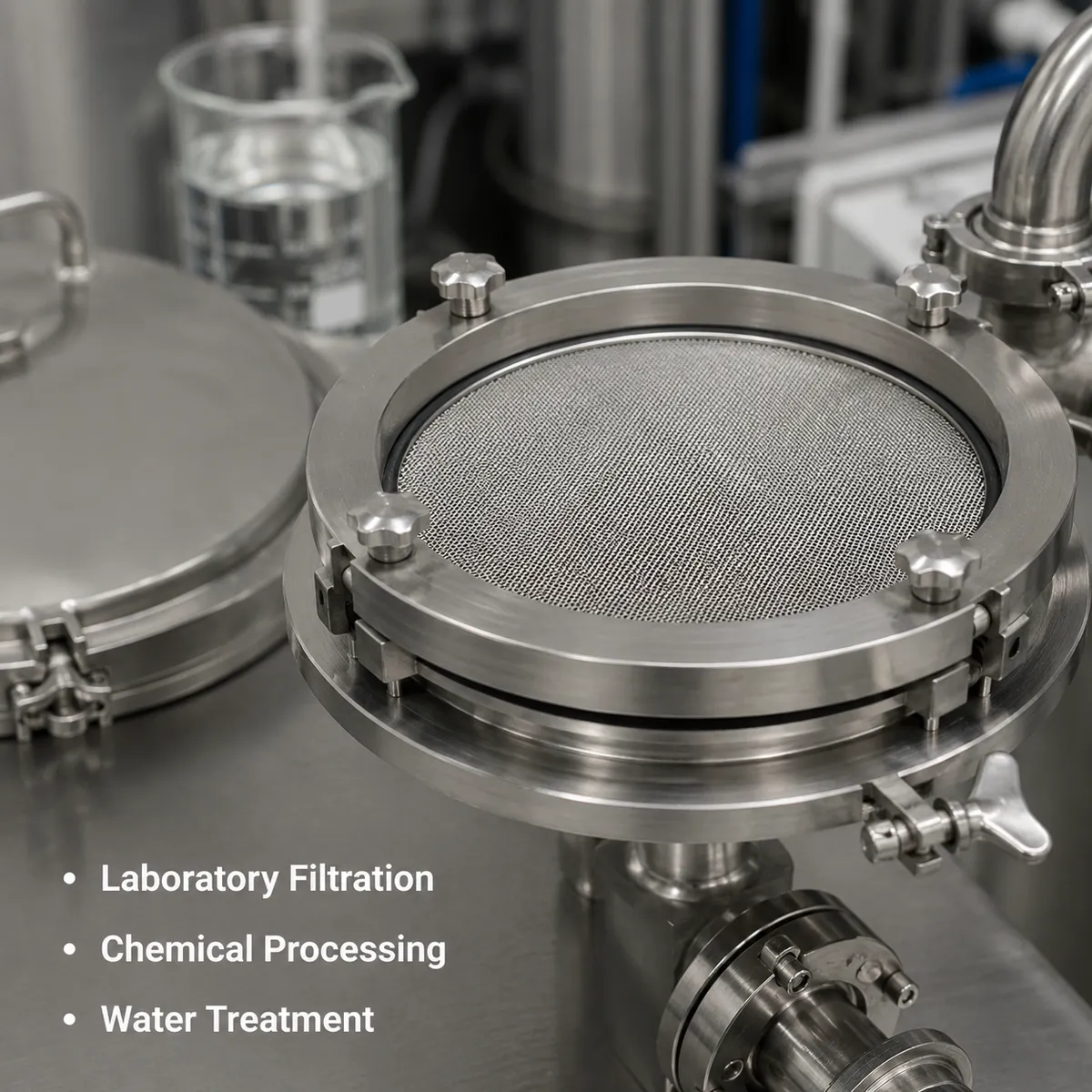

  • Laboratory filtration
  • Chemical processing
  • Water treatment
  • industrial liquid processing screening
  • Pharmaceutical equipment
  • Industrial sieving
  • Vent and guard mesh
  • OEM filter components
Customization Options

Size / Material / Color / Packaging / Logo

Send Requirement ->

Custom programme: Custom mesh count, wire diameter, opening size, sheet size, roll length, cut shape, edge treatment, and packaging. Size and tolerance reference: Sheets, rolls, discs, rings, strips, and custom cut shapes; common sheet size 300 x 300 mm; roll options available. Typical converting tolerance: +/-1 mm for cut parts or +/-2 mm per linear metre for roll and belt formats. Packing and production reference: Rolled on core or flat-packed; 10-30 m per carton Stock: 3-7 days; cut panels: 7-12 days

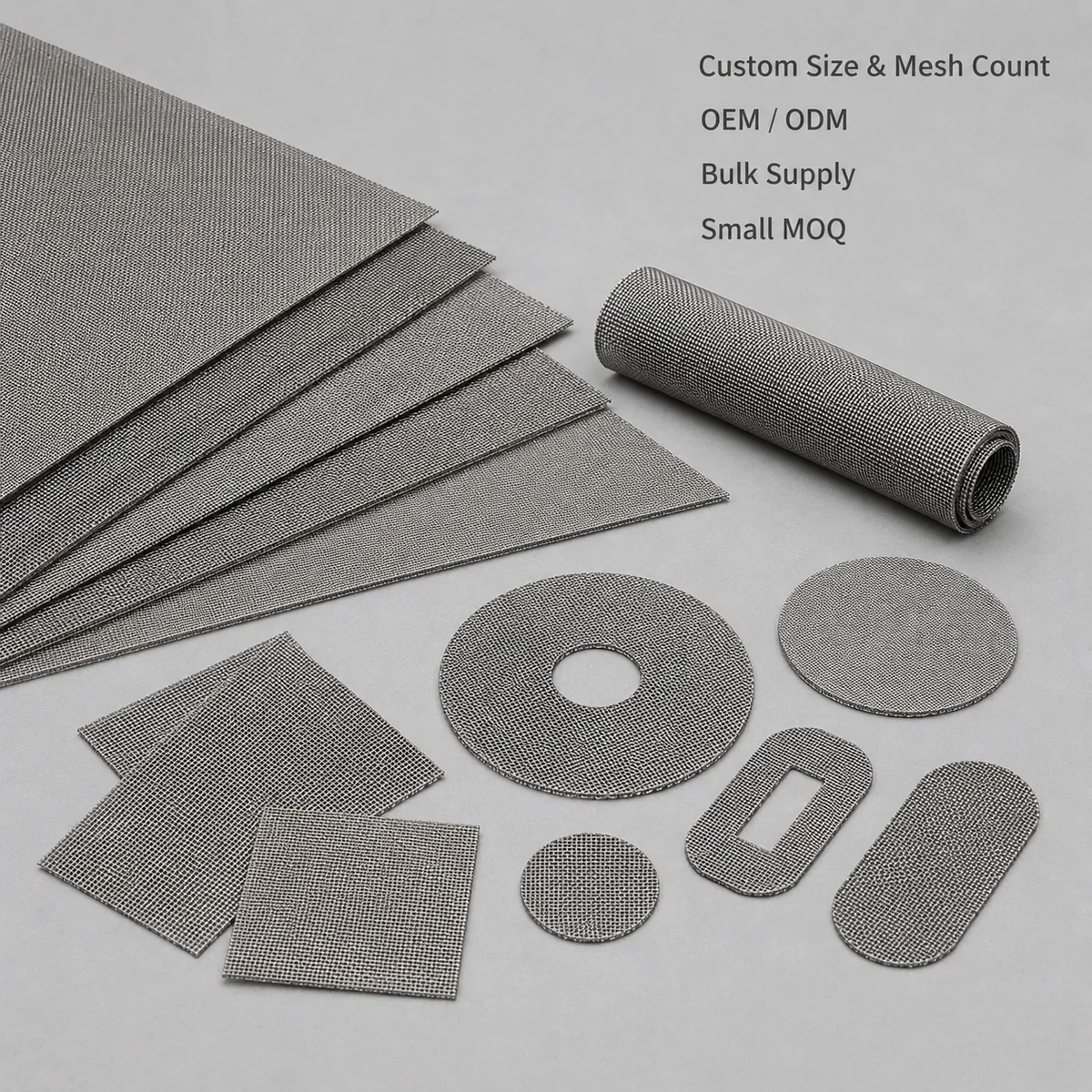

  • Size Sheets, rolls, discs, rings, strips, and custom cut shapes, common sheet size 300 x 300 mm, roll options available
  • Material 304 stainless steel, 316L stainless steel woven wire mesh
  • Color Natural silver stainless steel finish
  • Packaging Carton packing, bulk packing or export packing can be discussed by order requirement.
  • Logo Logo, label or buyer mark can be discussed by order requirement
FAQ

Frequently Asked Questions

Can the stainless steel filter mesh be cut to custom sizes?

Yes. Sheets, rolls, discs, rings, and special shapes can be supplied based on drawing, mesh count, wire diameter, and quantity.

Which material should I choose, 304 or 316L stainless steel?

304 is suitable for general filtration and screening. 316L is preferred for wet, chemical, or more corrosive working conditions.

Can you supply different mesh counts for sampling?

Yes. Common mesh counts can be supplied for sample evaluation before bulk orders. Availability depends on mesh size and material grade.

Is this product available for OEM or bulk supply?

Yes. Bulk sheets, rolls, and cut-to-size mesh parts can be supplied for distributors, equipment builders, and industrial buyers.

What details are needed for a quotation?

Please provide material grade, mesh count, wire diameter or opening size, sheet or roll size, quantity, and any cutting or edge treatment requirement.

What are the standard and custom order quantities for Stainless Steel Filter Mesh?

Standard MOQ: 1 m. Custom MOQ: 100 m. Stock: 3-7 days; cut panels: 7-12 days.

What packing and technical files can be supplied with Stainless Steel Filter Mesh?

Rolled on core or flat-packed; 10-30 m per carton Available files include: Material declaration, mesh or pore-size reference, dimensional inspection record and packing list.
