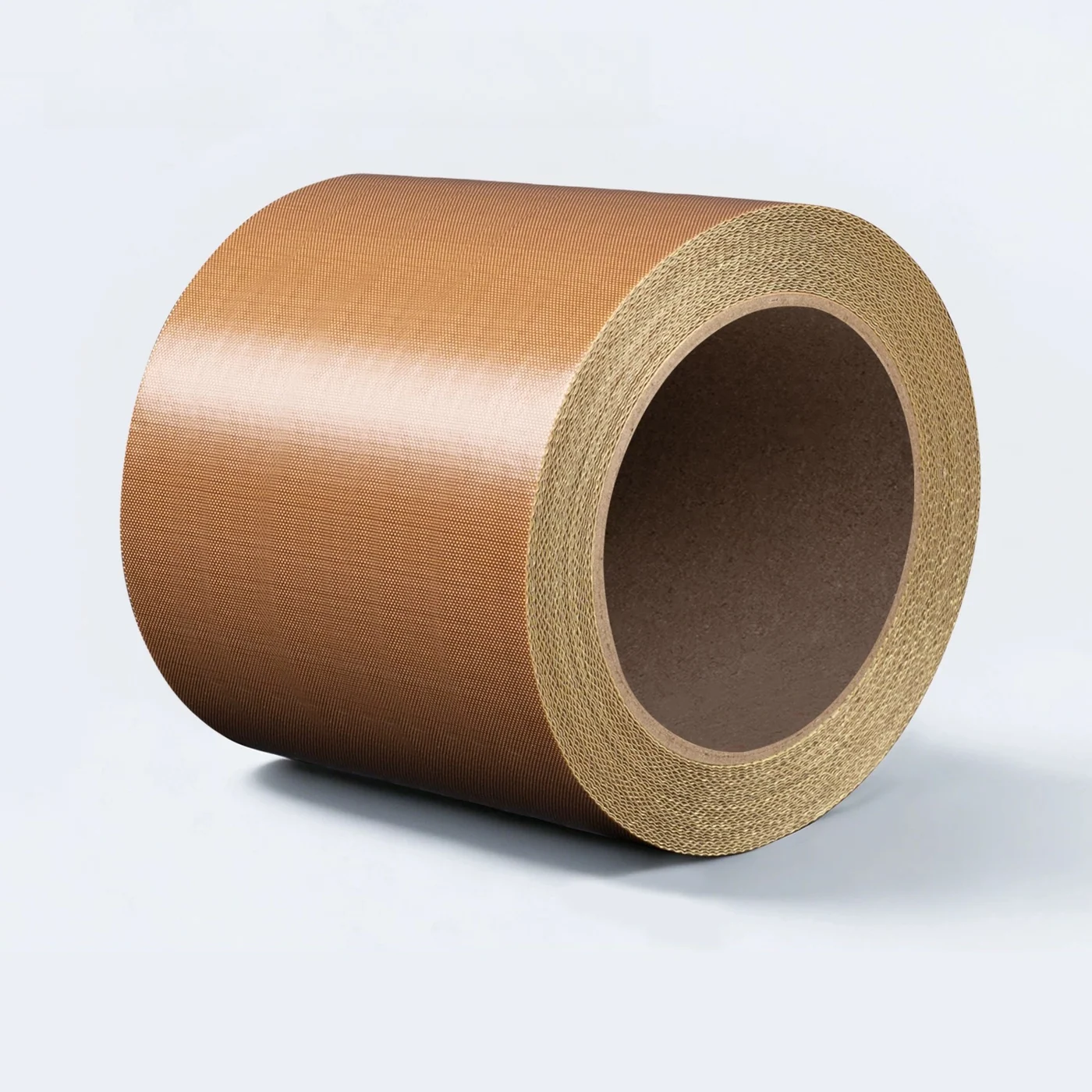

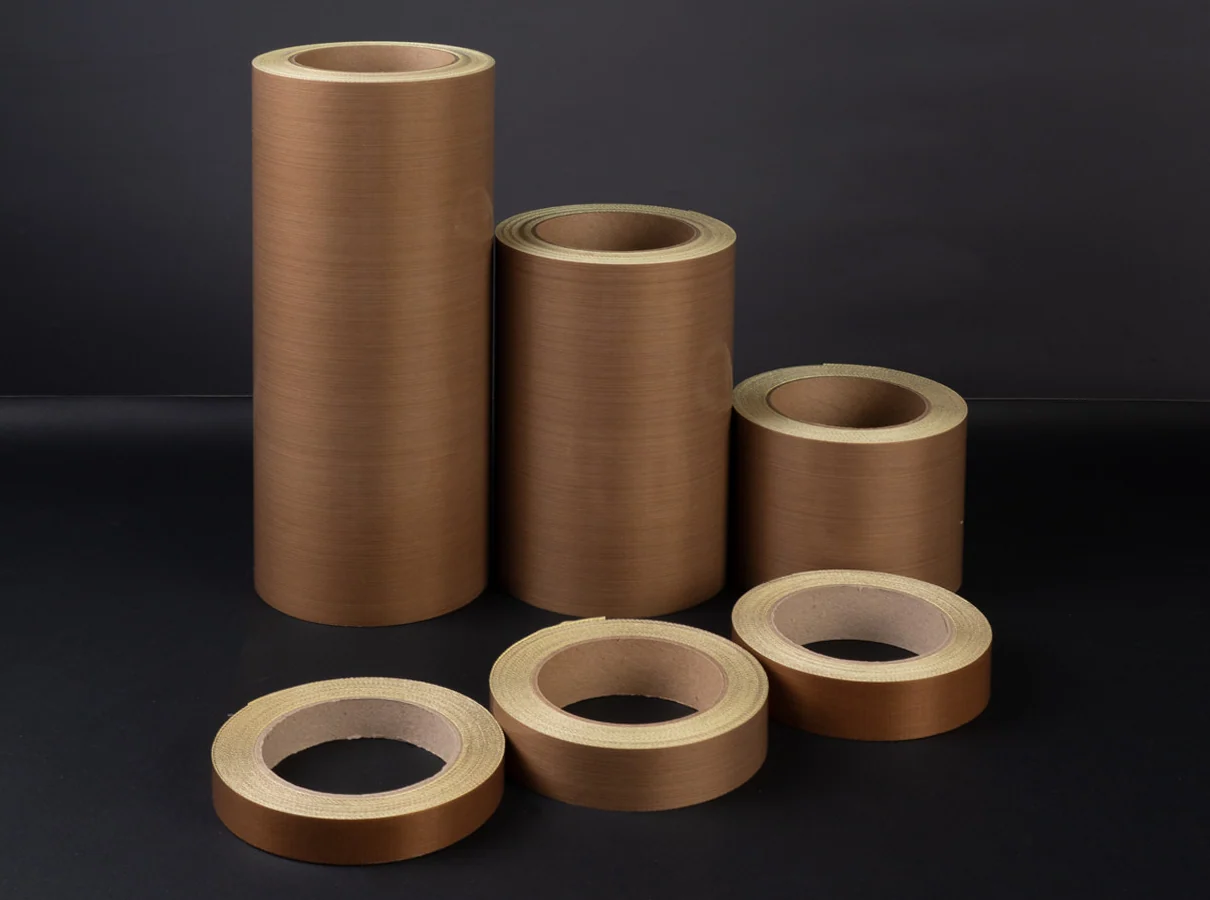

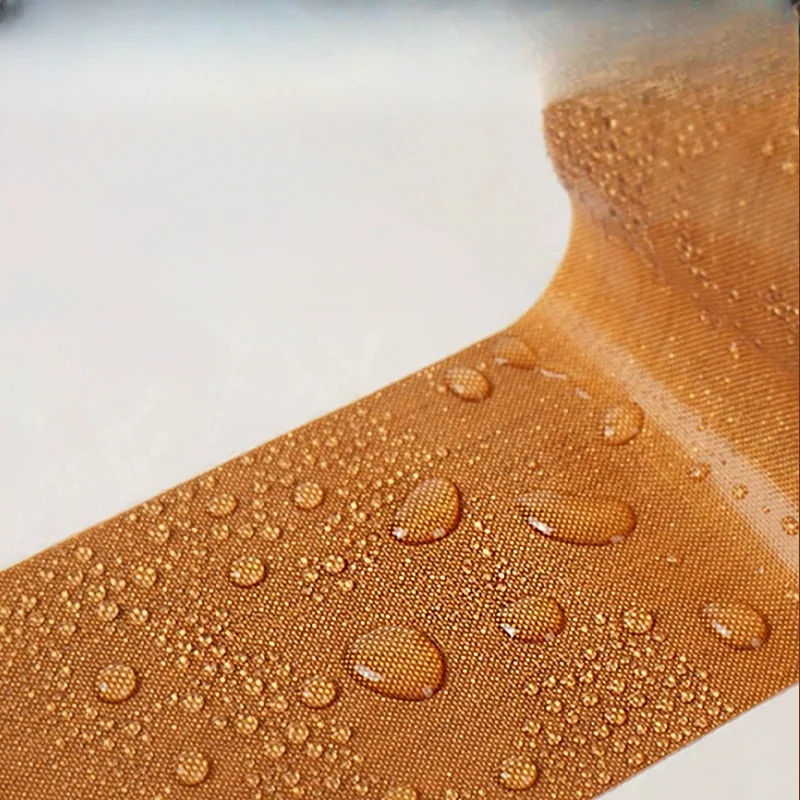

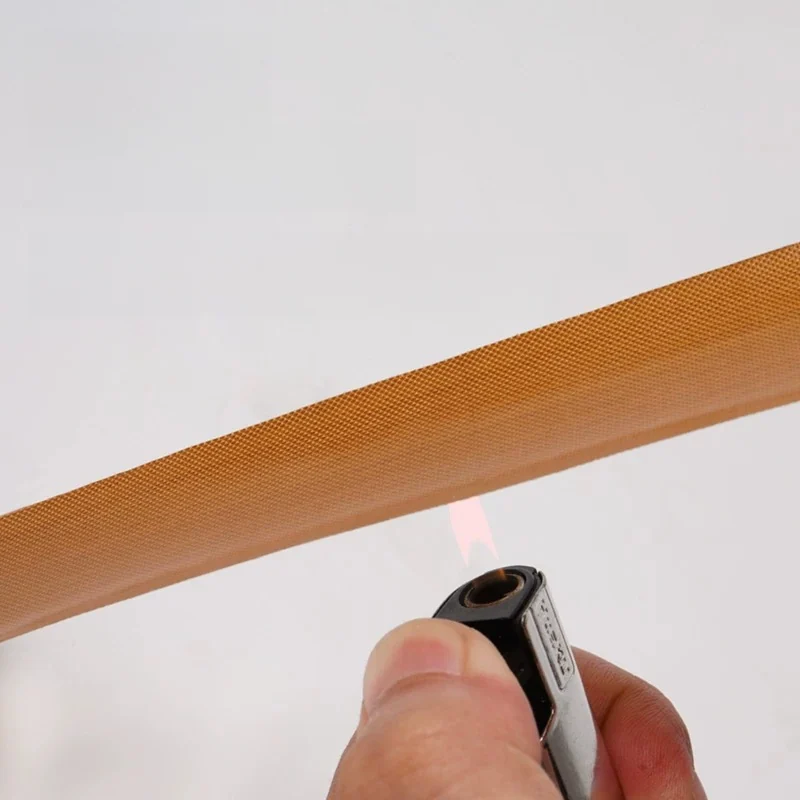

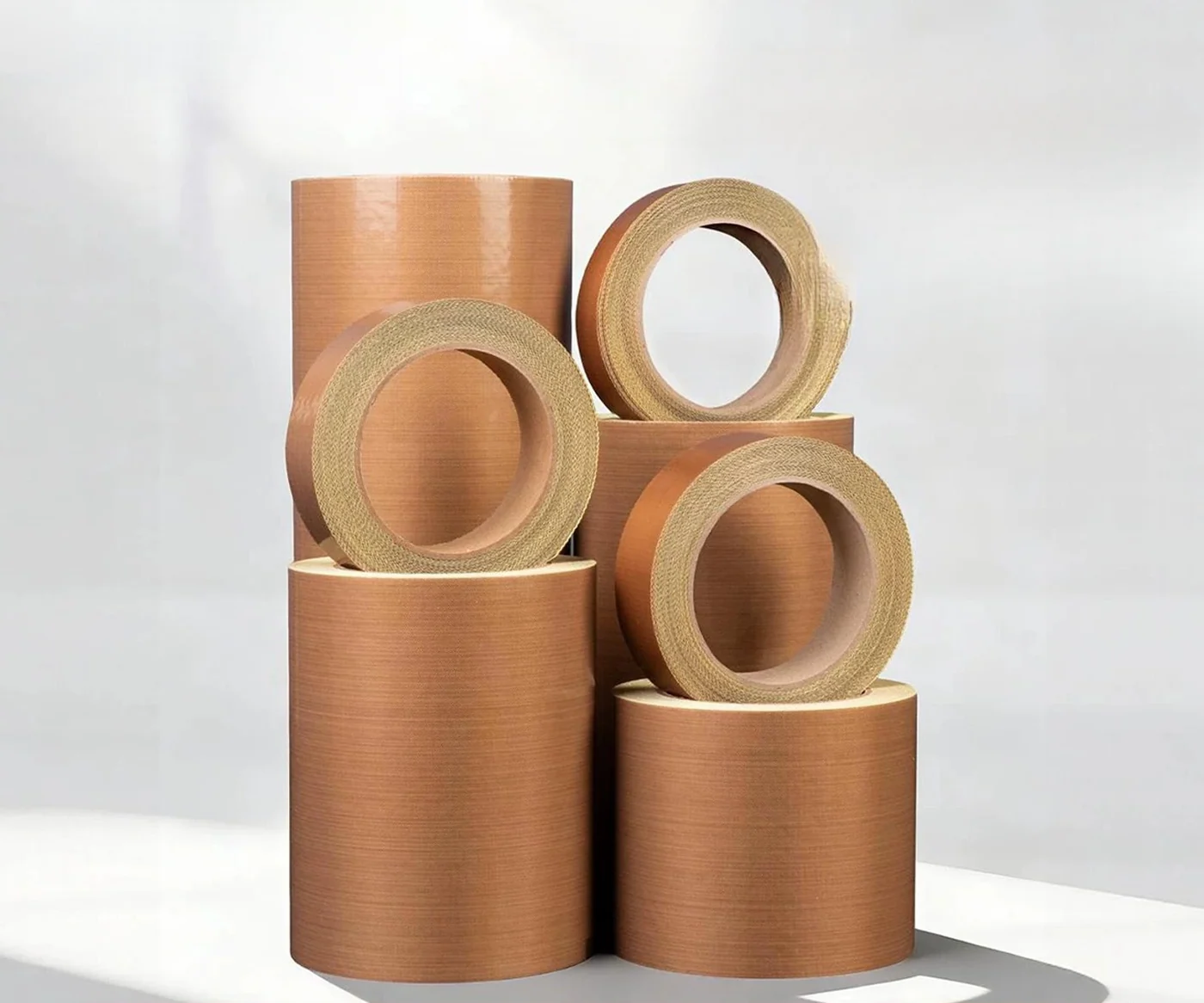

Release Paper Backed PTFE Sealing Tape

PTFE sealing tape with release paper in 0.13 and 0.18 mm formats for accurately positioned jaw and guide covers.

  • Release paper protects the backing
  • 20–300 mm listed widths
  • 10 m roll lengths
Request a Quote -> Custom Size ->
Product Overview

Release Paper Backed PTFE Sealing Tape Supplier

The paper-backed format simplifies precutting strips and handling the adhesive before fitting. It suits maintenance work where the cover needs to be aligned along a jaw or guide. Retain the backing until the strip is sized, then peel it gradually so the working surface remains free from creases.

Technical Specifications

Product Parameters

Material and construction Adhesive-backed PTFE fiberglass with release paper
Standard formats 0.13 mm thickness × 2 CM width × 10 m length 1 roll with release paper; 0.13 mm thickness × 3 CM width × 10 m length 1 roll with release paper; 0.13 mm thickness × 4 CM width × 10 m length 1 roll with release paper; 17 listed formats
Ordering model HT-068
Price Request a Quote
Construction options Release paper protects the backing; 20–300 mm listed widths; 10 m roll lengths
MOQ Quoted by the selected supply unit and quantity
Packaging Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-068-001 0.13 mm thickness × 2 CM width × 10 m length 1 roll with release paper Adhesive-backed PTFE fiberglass with release paper Roll / cut length Request a Quote
HT-068-002 0.13 mm thickness × 3 CM width × 10 m length 1 roll with release paper Adhesive-backed PTFE fiberglass with release paper Roll / cut length Request a Quote
HT-068-003 0.13 mm thickness × 4 CM width × 10 m length 1 roll with release paper Adhesive-backed PTFE fiberglass with release paper Roll / cut length Request a Quote
HT-068-004 0.13 mm thickness × 5 CM width × 10 m length 1 roll with release paper Adhesive-backed PTFE fiberglass with release paper Roll / cut length Request a Quote
HT-068-005 0.13 mm thickness × 8 CM width × 10 m length 1 roll with release paper Adhesive-backed PTFE fiberglass with release paper Roll / cut length Request a Quote
HT-068-006 0.13 mm thickness × 10 cm width × 10 m length 1 roll with release paper Adhesive-backed PTFE fiberglass with release paper Roll / cut length Request a Quote
HT-068-007 0.13 mm thickness × 20 cm width × 10 m length 1 roll with release paper Adhesive-backed PTFE fiberglass with release paper Roll / cut length Request a Quote
HT-068-008 0.13 mm thickness × 30 cm width × 10 m length 1 roll with release paper Adhesive-backed PTFE fiberglass with release paper Roll / cut length Request a Quote
HT-068-009 0.13 mm thickness × 50 cm width × 10 m length 1 roll with release paper Adhesive-backed PTFE fiberglass with release paper Roll / cut length Request a Quote
HT-068-010 0.18 mm thickness × 2 cm width × 10 m length 1 roll with release paper Adhesive-backed PTFE fiberglass with release paper Roll / cut length Request a Quote
HT-068-011 0.18 mm thickness × 3 cm width × 10 m length 1 roll with release paper Adhesive-backed PTFE fiberglass with release paper Roll / cut length Request a Quote
HT-068-012 0.18 mm thickness × 4 cm width × 10 m length 1 roll with release paper Adhesive-backed PTFE fiberglass with release paper Roll / cut length Request a Quote
HT-068-013 0.18 mm thickness × 5 cm width × 10 m length 1 roll with release paper Adhesive-backed PTFE fiberglass with release paper Roll / cut length Request a Quote
HT-068-014 0.18 mm thickness × 8 cm width × 10 m length 1 roll with release paper Adhesive-backed PTFE fiberglass with release paper Roll / cut length Request a Quote
HT-068-015 0.18 mm thickness × 10 cm width × 10 m length 1 roll with release paper Adhesive-backed PTFE fiberglass with release paper Roll / cut length Request a Quote
HT-068-016 0.18 mm thickness × 20 cm width × 10 m length 1 roll with release paper Adhesive-backed PTFE fiberglass with release paper Roll / cut length Request a Quote
HT-068-017 0.18 mm thickness × 30 cm width × 10 m length 1 roll with release paper Adhesive-backed PTFE fiberglass with release paper Roll / cut length Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Jaw cover maintenance
  • Precut release strips
  • Packaging equipment guides
Customization Options

Release Paper Backed PTFE Sealing Tape Ordering Options

Send Requirement ->

For Release Paper Backed PTFE Sealing Tape, specify finished thickness, width, cut outline and the required quantity.

  • Dimensions and construction Specify finished thickness, width, cut outline and the required quantity.
  • Material Adhesive-backed PTFE fiberglass with release paper
  • Supply and packing Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
FAQ

Frequently Asked Questions

Which widths and lengths are listed for release-paper PTFE sealing tape?

The table lists 10 m rolls in selected widths from 2 to 30 cm, with 0.13 and 0.18 mm thickness entries. The available widths differ by thickness; use the complete SKU description.

Does this sealing tape include release paper?

Yes. The material is adhesive-backed PTFE fiberglass with release paper, and the entry descriptions specify a roll with release paper. The backing protection is part of the listed construction.

What material is used for Release Paper Backed PTFE Sealing Tape?

The specified material is adhesive-backed PTFE fiberglass with release paper.

What should I include in a quotation request?

For model HT-068, send the selected SKU and order quantity. Include 0.13 or 0.18 mm thickness, width, 10 m roll length and release-paper construction. Pricing is by quotation for the selected specification and quantity.
