PTFE Open Mesh Release Panels

Unbound 1 m-square PTFE mesh panels with 0.5–10 mm openings for ventilated release surfaces and process supports.

  • Five defined mesh openings
  • 1 m × 1 m panels
  • Unbound cut edges
Request a Quote -> Custom Size ->
Product Overview

PTFE Open Mesh Release Panels Supplier

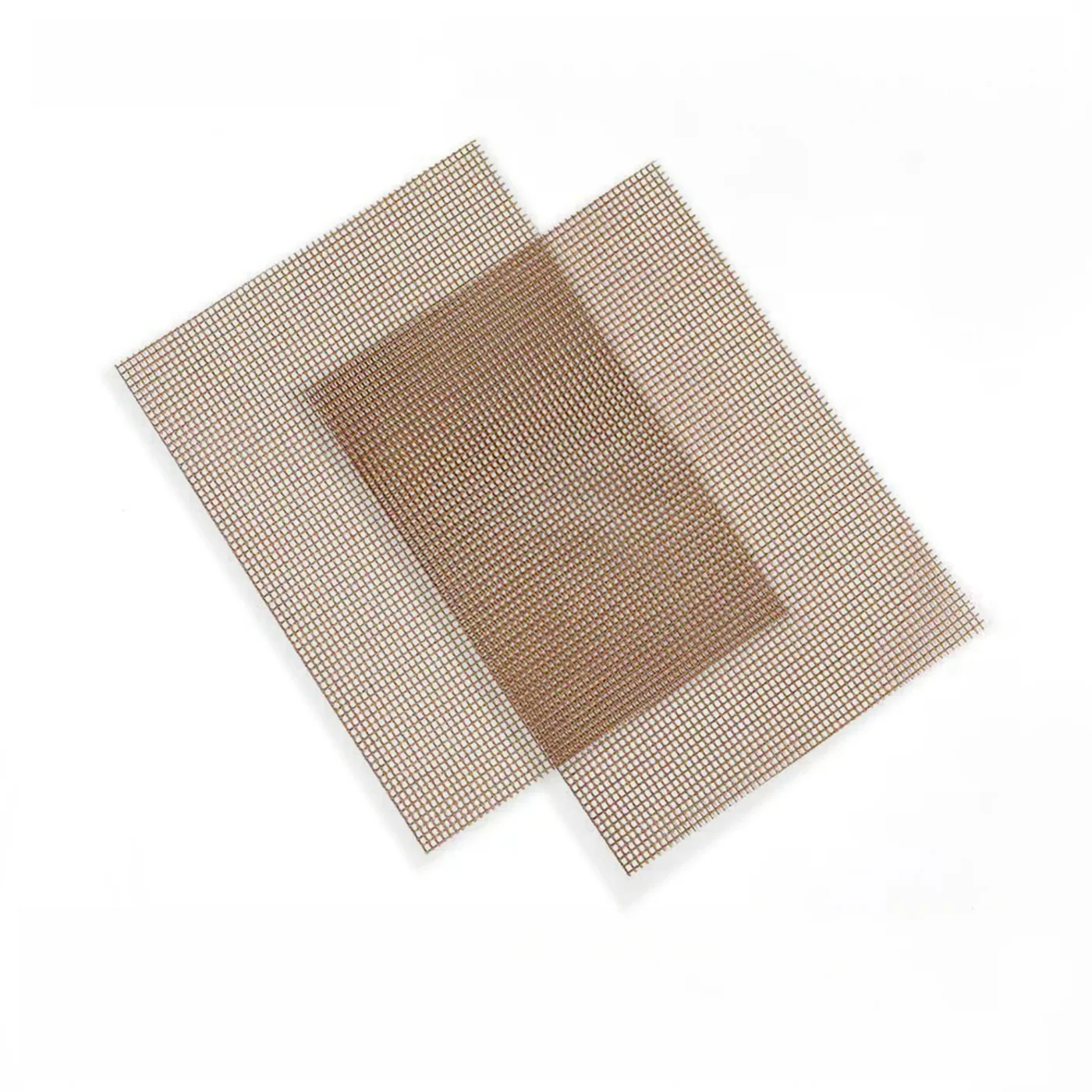

These cut panels provide a release face while allowing air through the open weave. They are distinct from finished conveyor belts: the listed panels have no edge binding or machine joint. Select an opening that supports the part or carrier and provide a frame where the panel needs tension.

Technical Specifications

Product Parameters

Material and construction PTFE-coated fiberglass mesh
Standard formats Opening 0.5 × 0.5 mm 1 m × 1 m Unbound edges; Opening 1 × 1 mm 1 m × 1 m Unbound edges; Opening 2 × 2.5 mm 1 m × 1 m Unbound edges; 5 listed formats
Ordering model HT-066
Price Request a Quote
Construction options Five defined mesh openings; 1 m × 1 m panels; Unbound cut edges
MOQ Quoted by the selected supply unit and quantity

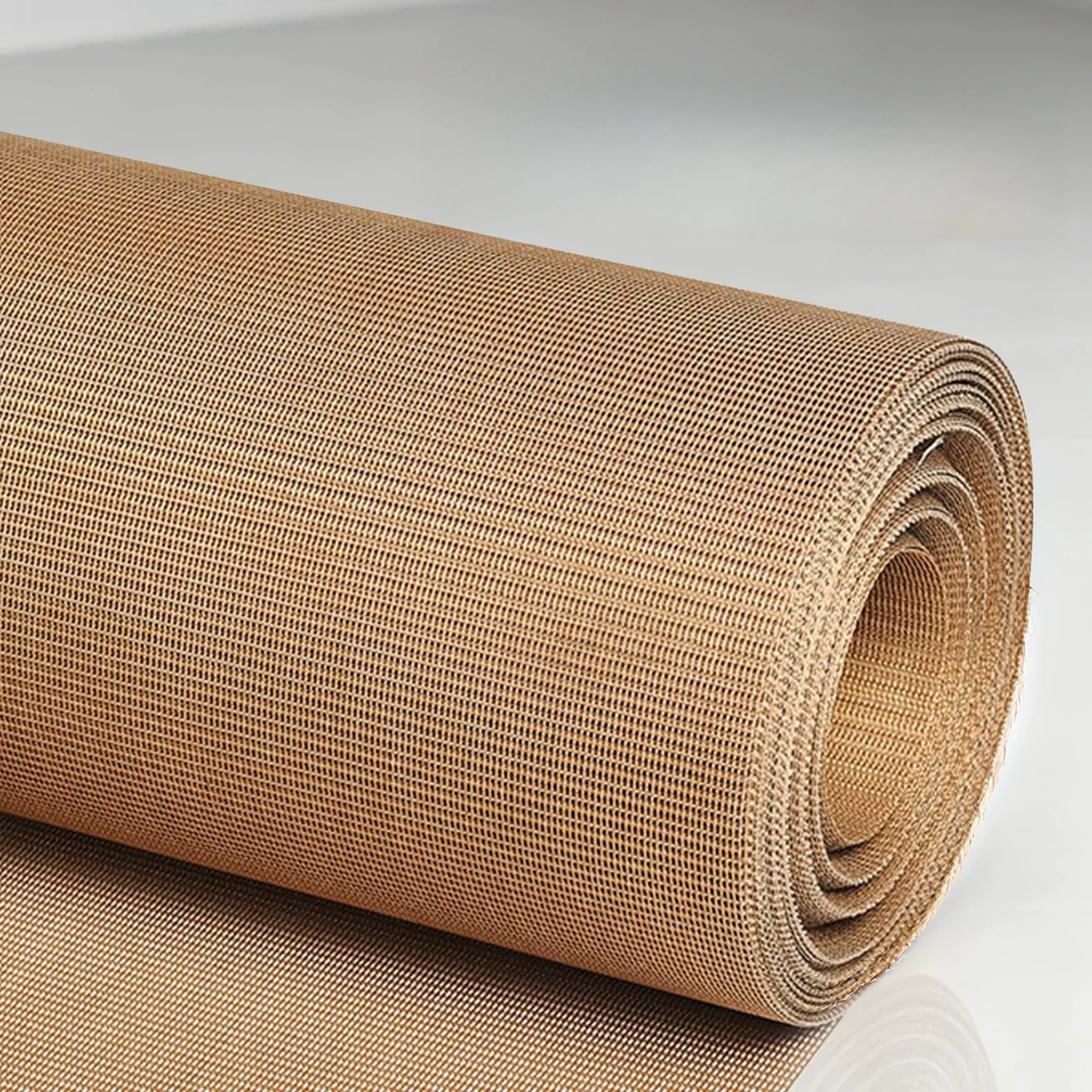

Packaging Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-066-P001 Opening 0.5 × 0.5 mm 1 m × 1 m Unbound edges PTFE-coated fiberglass mesh Roll / cut length Request a Quote
HT-066-P002 Opening 1 × 1 mm 1 m × 1 m Unbound edges PTFE-coated fiberglass mesh Roll / cut length Request a Quote
HT-066-P003 Opening 2 × 2.5 mm 1 m × 1 m Unbound edges PTFE-coated fiberglass mesh Roll / cut length Request a Quote
HT-066-P004 Opening 4 × 4 mm 1 m × 1 m Unbound edges PTFE-coated fiberglass mesh Roll / cut length Request a Quote
HT-066-P005 Opening 10 × 10 mm 1 m × 1 m Unbound edges PTFE-coated fiberglass mesh Roll / cut length Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Ventilated process supports
  • Drying release panels
  • Framed equipment inserts
Customization Options

PTFE Open Mesh Release Panels Ordering Options

Send Requirement ->

For PTFE Open Mesh Release Panels, specify mesh count or opening, wire or yarn diameter, panel dimensions and edge finish.

  • Dimensions and construction Specify mesh count or opening, wire or yarn diameter, panel dimensions and edge finish.
  • Material PTFE-coated fiberglass mesh
  • Supply and packing Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
FAQ

Frequently Asked Questions

Which openings and panel sizes are listed for PTFE mesh release panels?

The five listed openings are 0.5 × 0.5, 1 × 1, 2 × 2.5, 4 × 4 and 10 × 10 mm. All entries specify a 1 m × 1 m panel.

Are these mesh panels supplied with bound edges or belt joints?

The table explicitly describes unbound edges. A finished belt joint or bound-edge construction is not listed for these panels; include any different edge or joining requirement for review.

What material is used for PTFE Open Mesh Release Panels?

The specified material is PTFE-coated fiberglass mesh.

What should I include in a quotation request?

For model HT-066, send the selected SKU and order quantity. Include mesh opening, 1 m × 1 m panel reference size and required edge treatment. Pricing is by quotation for the selected specification and quantity.
