PTFE Adhesive Tape

PTFE coated fiberglass adhesive tape with silicone backing for heat sealing, low-friction protection and industrial equipment maintenance.

  • Non-stick PTFE surface
  • heat resistant
  • low friction
  • wear resistant
  • silicone adhesive backing
Request a Quote -> Custom Size ->
Product Overview

PTFE Adhesive Tape Supplier

PTFE coated fiberglass adhesive tape with silicone backing for heat sealing, low-friction protection and industrial equipment maintenance. Typical use includes Heat sealing machines, packaging equipment, thermal processing lines, conveyor guides, low-friction sliding surfaces, release lining, insulation and industrial maintenance. Pressure-sensitive or woven tape construction selected for masking, sealing, insulation or surface protection. Clean slit edges with controlled roll winding; die-cut formats use a trimmed release-liner edge. Recommended operating range: Typically -70°C to 260°C depending on application and adhesive condition

Technical Specifications

Product Parameters

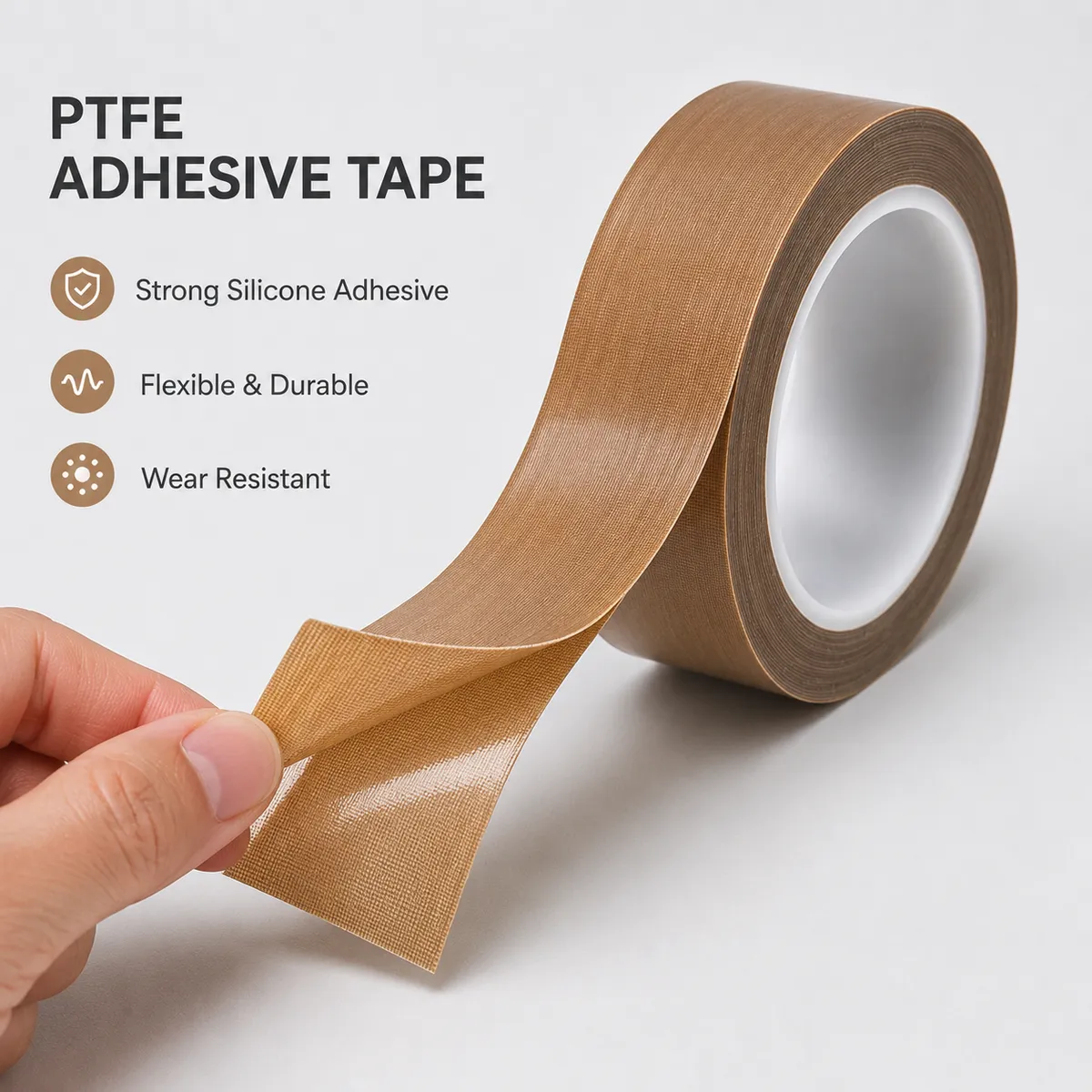

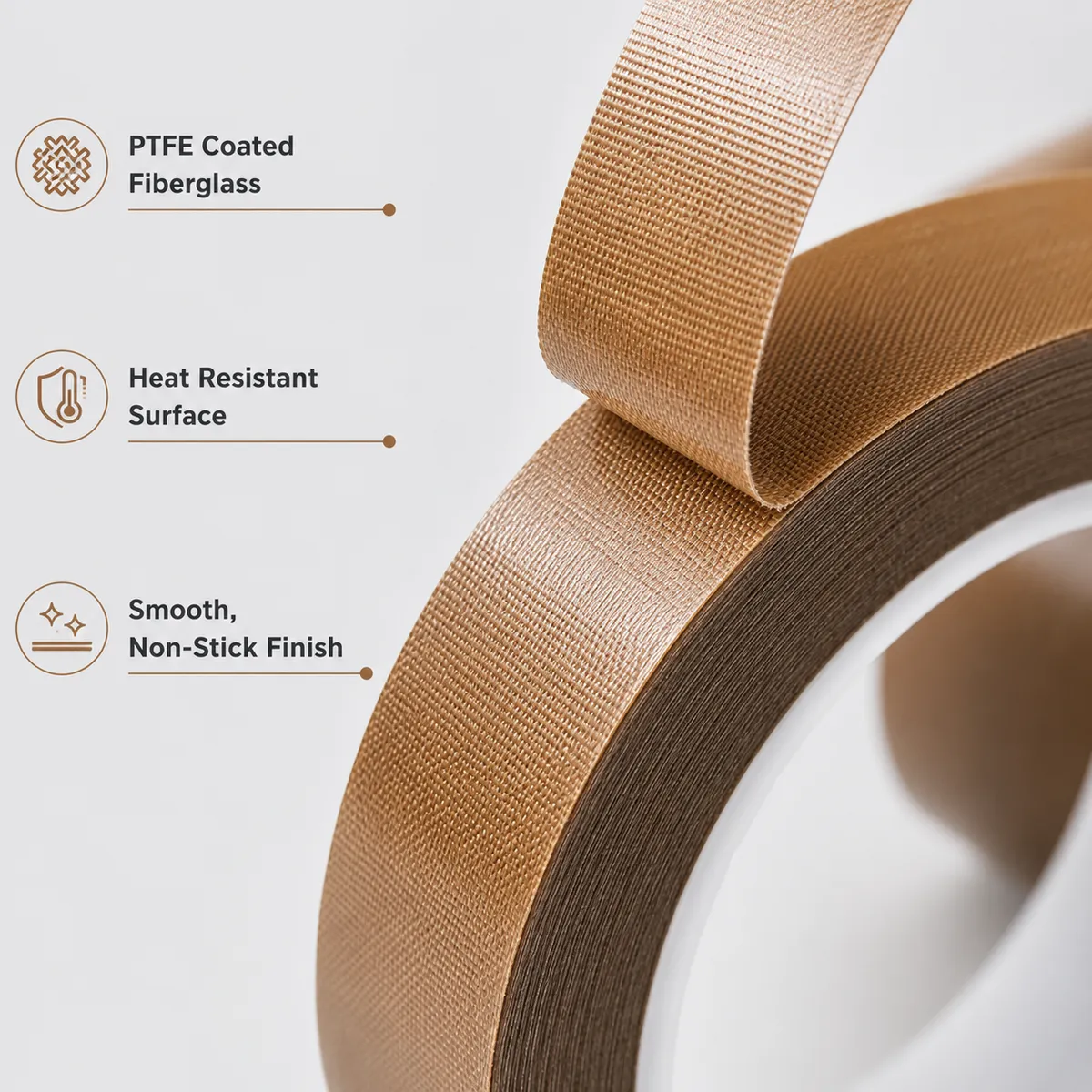

Material PTFE coated fiberglass fabric with silicone adhesive backing
Temperature Range Typically -70°C to 260°C depending on application and adhesive condition

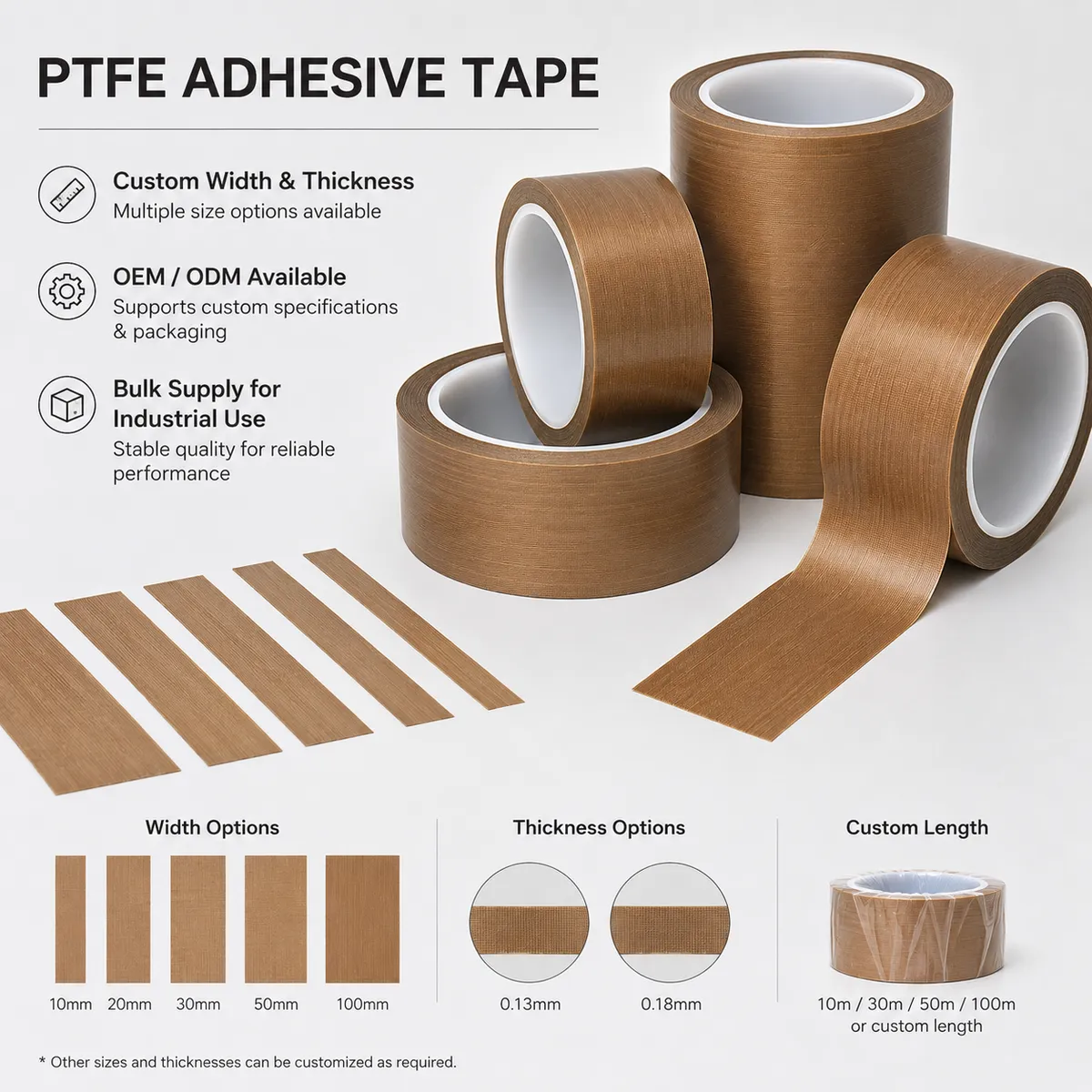

Size Options Common widths: 10 mm, 20 mm, 30 mm, 50 mm, 100 mm; common thickness: 0.13 mm, 0.18 mm; roll length: 10 m, 30 m, 50 m, 100 m or custom
Color Options Brown; black or other colors may be available for custom orders
Lead Time Ready stock: 3-7 working days; custom orders: usually 10-20 working days depending on size and quantity
Customization Custom width, thickness, roll length, die-cut pieces, private label packaging and OEM supply available by request
MOQ Standard stock rolls support small trial orders; custom sizes and packaging usually require MOQ confirmation
Packaging Carton packing, bulk packing or export packing can be discussed by order requirement.
Purchasing and Engineering Notes

PTFE Adhesive Tape Procurement Details

Applicable sizes and tolerance Common widths: 10 mm, 20 mm, 30 mm, 50 mm, 100 mm; common thickness: 0.13 mm, 0.18 mm; roll length: 10 m, 30 m, 50 m, 100 m or custom. Typical slitting tolerance: +/-0.5 mm in width; roll length follows normal production tolerance.
Structure, surface and edge Pressure-sensitive or woven tape construction selected for masking, sealing, insulation or surface protection. Clean slit edges with controlled roll winding; die-cut formats use a trimmed release-liner edge.
Reinforcement Fiberglass reinforcement: yes; the woven glass substrate provides dimensional stability under heat and repeated handling.
Material selection PTFE offers lower friction and broader chemical resistance than rubber; choose filled PTFE only when higher wear resistance is needed.
Recommended use temperature Typically -70°C to 260°C depending on application and adhesive condition
Packing and carton reference Individual shrink wrap; 36-72 rolls per export carton
Standard MOQ 36 rolls
Custom MOQ 500 rolls
Sample policy USD 15-25 plus freight for a sample roll pack
Production cycle Stock: 3-7 days; custom slit or label: 10-15 days
Available test and inspection files Material declaration, width and roll-length inspection record, visual inspection photos and packing list.
Typical purchasing teams Electronics assemblers, HVAC distributors, coating shops, packaging-machine service teams and industrial traders.
Ready Stock & Standard Sizes

Available Stock Specifications

The following specifications are available for quotation. MOQ and lead time are listed by standard size and custom requirement.

Request Stock Quote
SKU / Model Size Available Specification Material MOQ Lead Time Quotation Note
PTFE-TAPE-10-013-BR 10 mm width x 0.13 mm thickness x 10 m length Standard adhesive tape roll PTFE coated fiberglass with silicone adhesive Standard stock rolls support small trial orders; custom sizes and packaging usually require MOQ confirmation Ready stock: 3-7 working days; custom orders: usually 10-20 working days depending on size and quantity Common width for small sealing bars, guides and narrow contact surfaces
PTFE-TAPE-20-013-BR 20 mm width x 0.13 mm thickness x 10 m length Standard adhesive tape roll PTFE coated fiberglass with silicone adhesive Standard stock rolls support small trial orders; custom sizes and packaging usually require MOQ confirmation Ready stock: 3-7 working days; custom orders: usually 10-20 working days depending on size and quantity General purpose size for heat sealing machines and packaging equipment
PTFE-TAPE-30-013-BR 30 mm width x 0.13 mm thickness x 10 m length Standard adhesive tape roll PTFE coated fiberglass with silicone adhesive Standard stock rolls support small trial orders; custom sizes and packaging usually require MOQ confirmation Ready stock: 3-7 working days; custom orders: usually 10-20 working days depending on size and quantity Suitable for wider sealing bars and low-friction surface protection
PTFE-TAPE-50-013-BR 50 mm width x 0.13 mm thickness x 10 m length Wide adhesive tape roll PTFE coated fiberglass with silicone adhesive Standard stock rolls support small trial orders; custom sizes and packaging usually require MOQ confirmation Ready stock: 3-7 working days; custom orders: usually 10-20 working days depending on size and quantity Used for larger contact surfaces, machine rails and protective lining
PTFE-TAPE-100-018-BR 100 mm width x 0.18 mm thickness x 10 m length Wide adhesive tape roll PTFE coated fiberglass with silicone adhesive Standard stock rolls support small trial orders; custom sizes and packaging usually require MOQ confirmation Ready stock: 3-7 working days; custom orders: usually 10-20 working days depending on size and quantity Thicker option for higher wear areas; size can be customized

Note: MOQ and lead time are based on the listed size, order quantity and packing requirement.

Send specification for quotation ->
Applications

Typical Applications

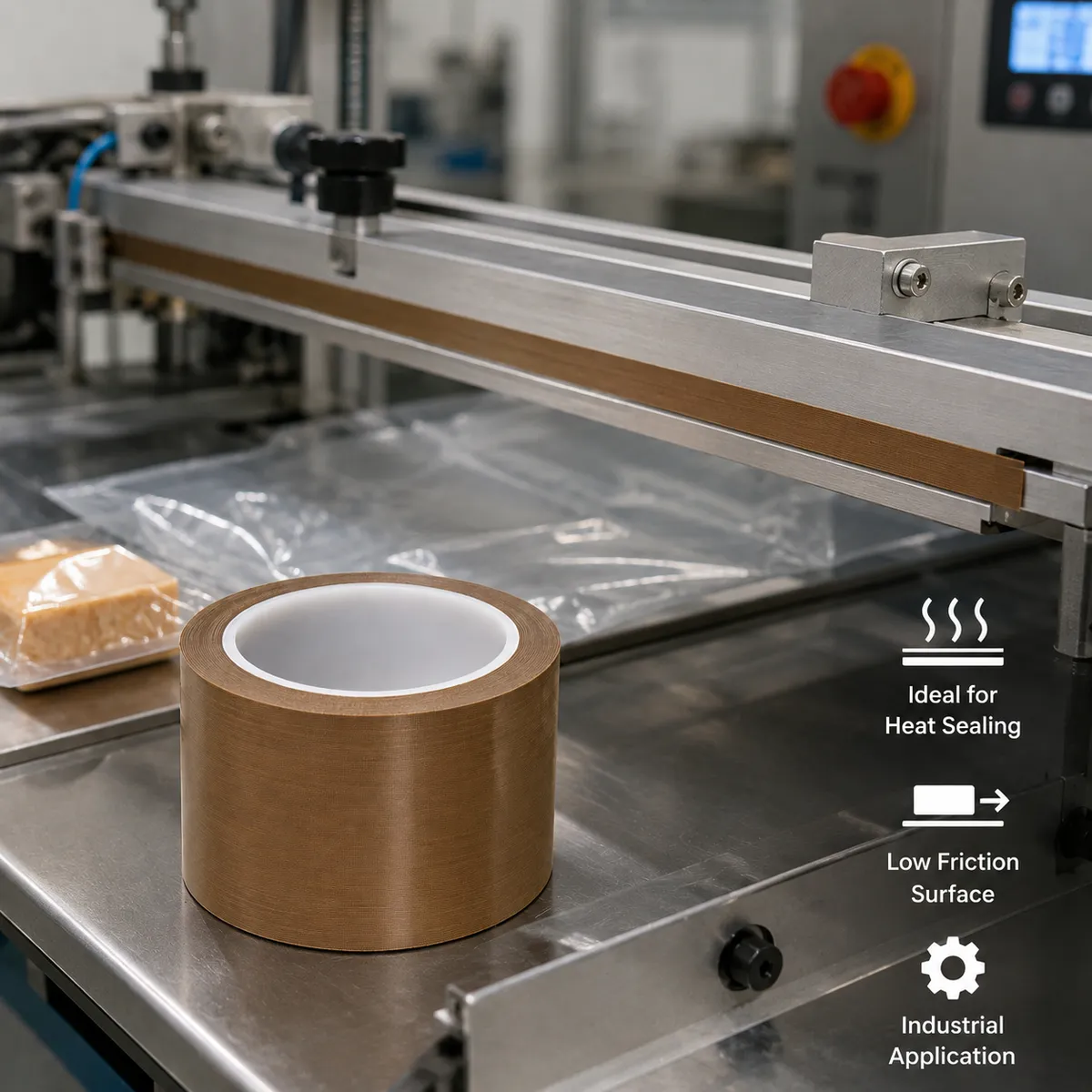

  • Heat sealing machines, packaging equipment, thermal processing lines, conveyor guides, low-friction sliding surfaces, release lining, insulation and industrial maintenance
Customization Options

Size / Material / Color / Packaging / Logo

Send Requirement ->

Custom programme: Custom width, thickness, roll length, die-cut pieces, private label packaging and OEM supply available by request. Size and tolerance reference: Common widths: 10 mm, 20 mm, 30 mm, 50 mm, 100 mm; common thickness: 0.13 mm, 0.18 mm; roll length: 10 m, 30 m, 50 m, 100 m or custom. Typical slitting tolerance: +/-0.5 mm in width; roll length follows normal production tolerance. Packing and production reference: Individual shrink wrap; 36-72 rolls per export carton Stock: 3-7 days; custom slit or label: 10-15 days

  • Size Common widths: 10 mm, 20 mm, 30 mm, 50 mm, 100 mm, common thickness: 0.13 mm, 0.18 mm, roll length: 10 m, 30 m, 50 m, 100 m or custom
  • Material PTFE coated fiberglass fabric with silicone adhesive backing
  • Color Brown; black or other colors may be available for custom orders
  • Packaging Carton packing, bulk packing or export packing can be discussed by order requirement.
  • Logo Logo, label or buyer mark can be discussed by order requirement
FAQ

Frequently Asked Questions

Can the tape width and thickness be customized?

Yes. Width, thickness and roll length can be supplied according to equipment requirements, subject to MOQ and material availability.

What adhesive is used on the backing?

This tape uses silicone adhesive backing, suitable for many high-temperature and low-friction surface applications.

Is this tape suitable for heat sealing machines?

Yes. It is commonly used on heat sealing bars, packaging machines and related contact surfaces to reduce sticking and friction.

Can you supply bulk rolls for industrial buyers?

Yes. Standard rolls and bulk supply can be arranged for distributors, equipment maintenance teams and OEM users.

What information is needed for a quotation?

Please provide width, thickness, roll length, quantity, target application and any packaging requirements.

What are the standard and custom order quantities for PTFE Adhesive Tape?

Standard MOQ: 36 rolls. Custom MOQ: 500 rolls. Stock: 3-7 days; custom slit or label: 10-15 days.

What packing and technical files can be supplied with PTFE Adhesive Tape?

Individual shrink wrap; 36-72 rolls per export carton Available files include: Material declaration, width and roll-length inspection record, visual inspection photos and packing list.
