Custom Galvanized Metal Bracket

Custom galvanized metal bracket for equipment mounting, panel support, and industrial fabrication applications.

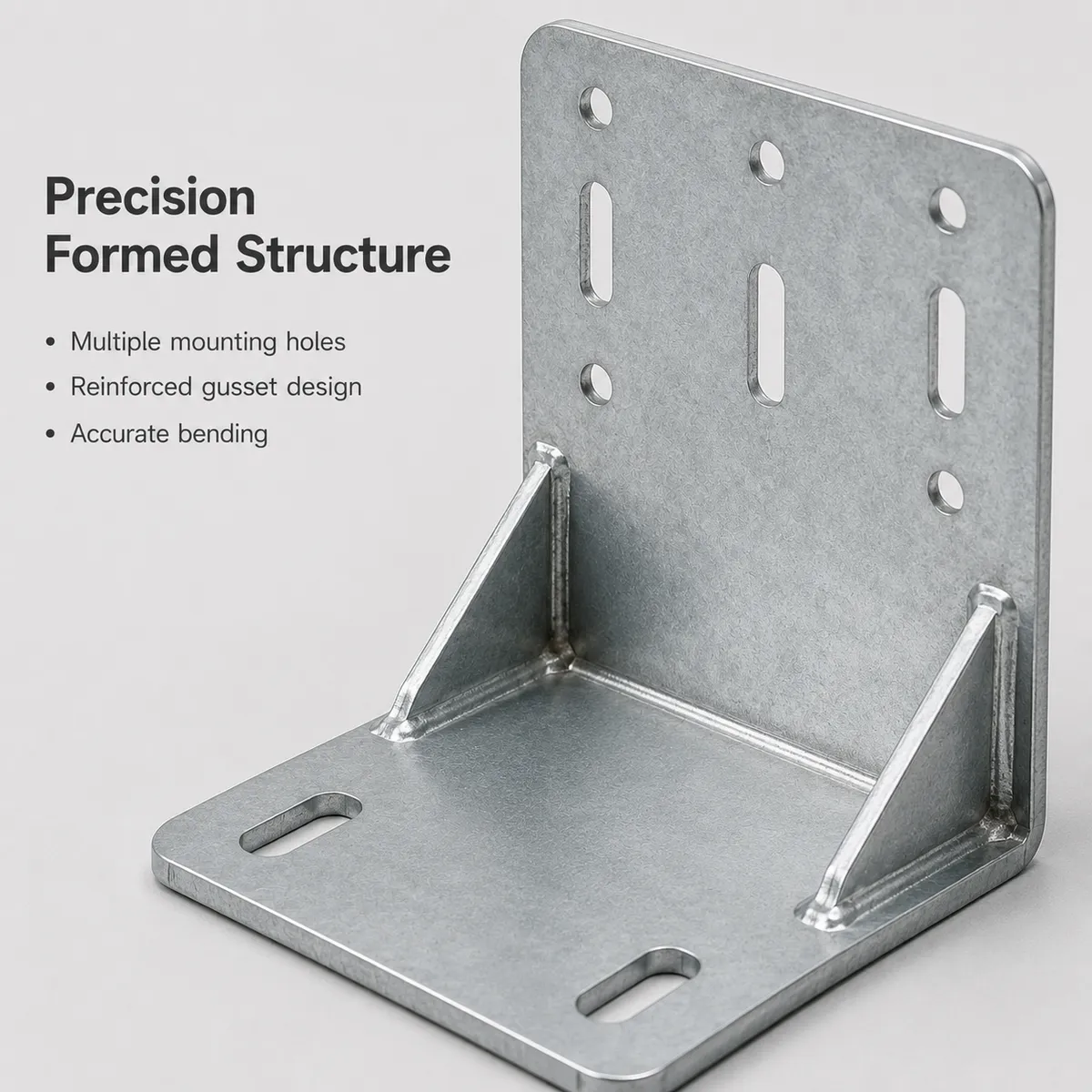

L-shaped formed structure
reinforced gusset design
multiple mounting holes
galvanized surface
suitable for custom fabrication

Product Overview

Custom Galvanized Metal Bracket Supplier

Custom galvanized metal bracket for equipment mounting, panel support, and industrial fabrication applications. Typical use includes Equipment mounting, panel support, aluminum profile frames. Formed or precision-cut industrial metal construction with the stated finish. Deburred cut edges; formed corners are checked for burrs before packing. Recommended operating range: Recommended for -20 C to +80 C mounting environments; select stainless steel or a specialized coating for sustained higher temperatures or corrosive exposure.

Technical Specifications

Product Parameters

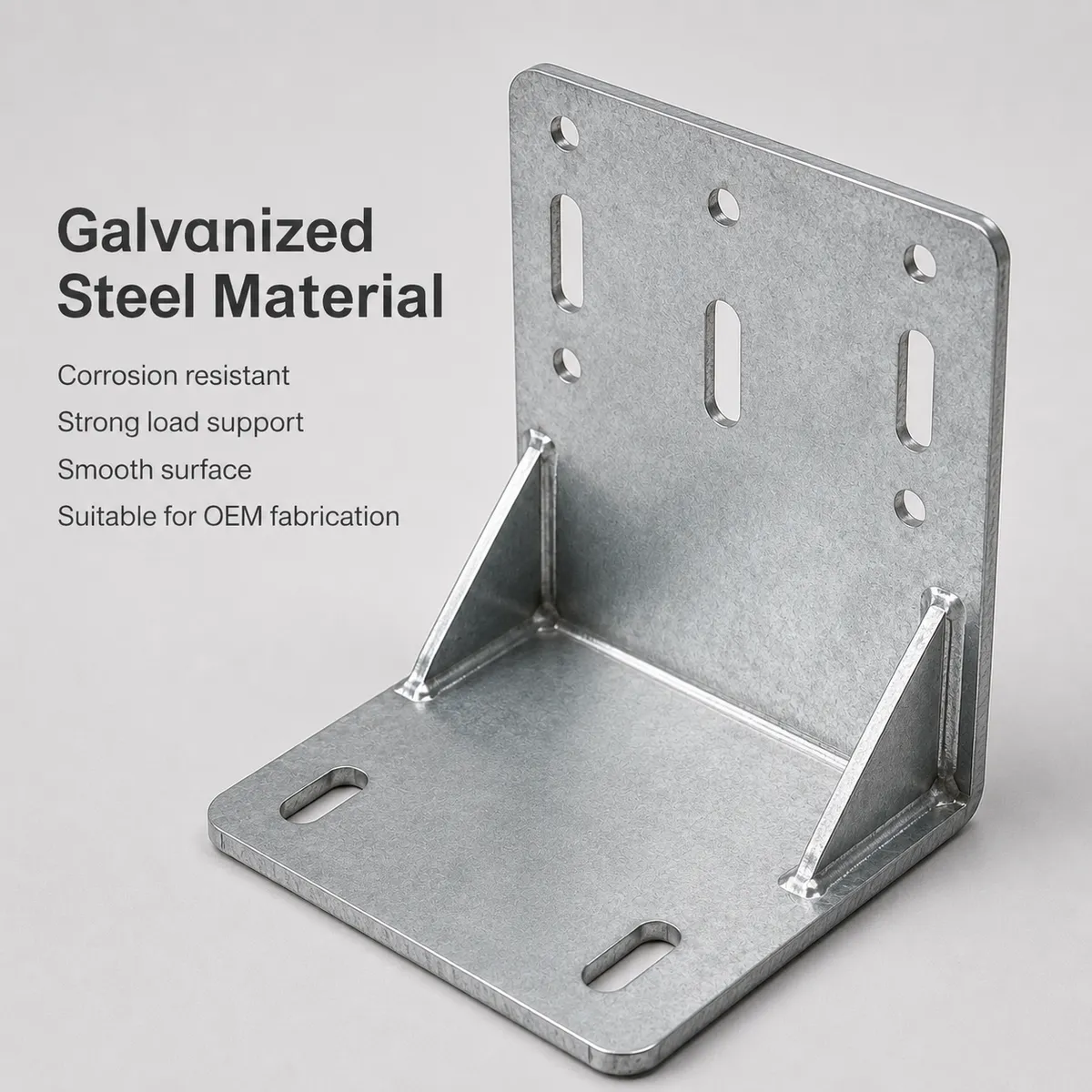

Material	Galvanized steel
Temperature Range	Recommended for -20 C to +80 C mounting environments; select stainless steel or a specialized coating for sustained higher temperatures or corrosive exposure.

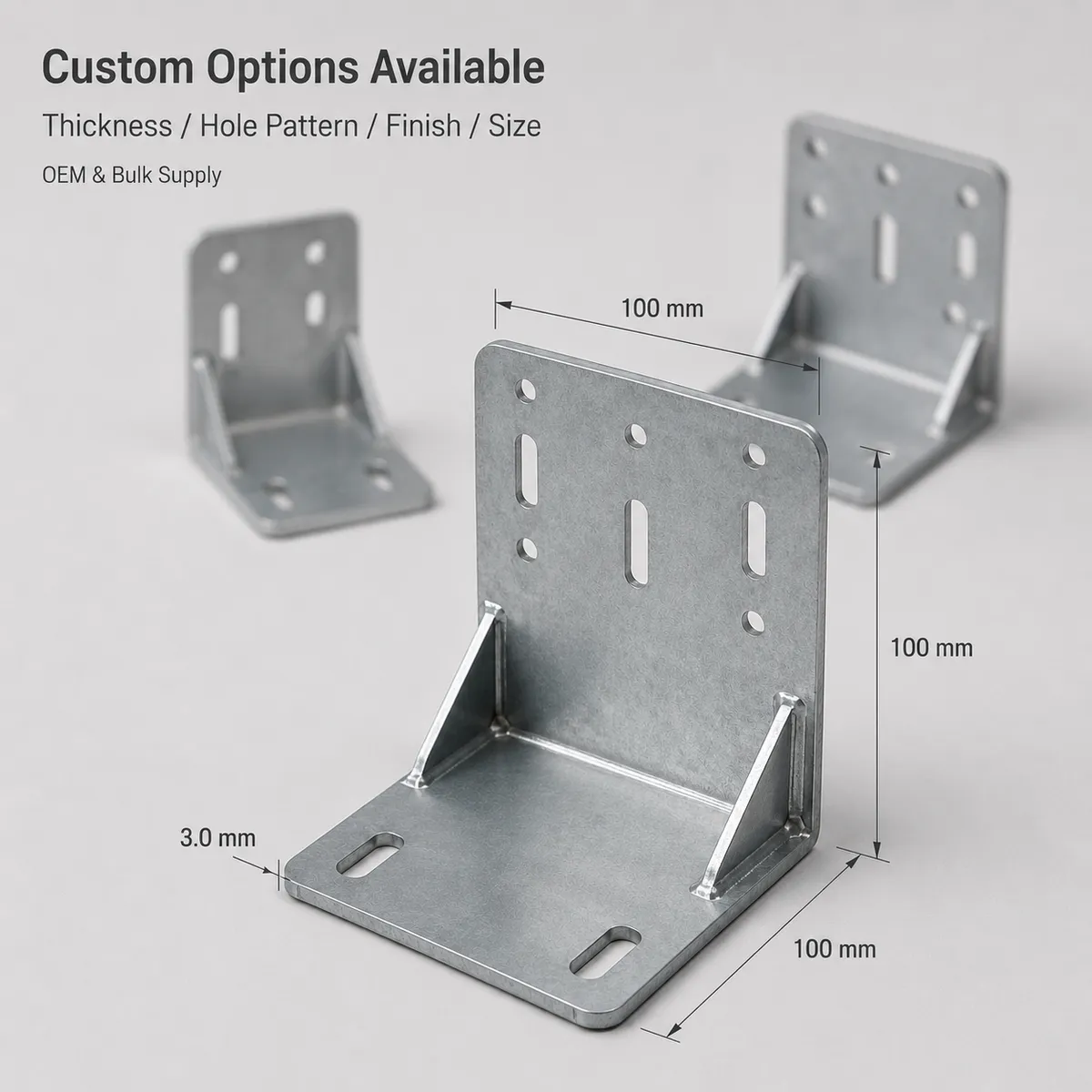

Size Options	Standard reference: 100 x 100 x 100 mm, 3.0 mm thickness; custom sizes available
Color Options	Silver gray; custom finish colors available with coating
Lead Time	Standard items: confirm before order; custom production lead time depends on drawing, material, and quantity
Customization	Thickness, hole pattern, slot shape, bend angle, surface finish, size, packaging
MOQ	Based on size, material, finish, and order quantity
Packaging	Carton packing, bulk packing or export packing can be discussed by order requirement.

Purchasing and Engineering Notes

Custom Galvanized Metal Bracket Procurement Details

Applicable sizes and tolerance	Standard reference: 100 x 100 x 100 mm, 3.0 mm thickness; custom sizes available. Typical formed-part tolerance: +/-0.3 mm; hole position tolerance: +/-0.2 mm.
Structure, surface and edge	Formed or precision-cut industrial metal construction with the stated finish. Deburred cut edges; formed corners are checked for burrs before packing.
Reinforcement	Fiberglass reinforcement: not used unless stated in the selected material construction.
Material selection	Material selection is matched to the required temperature, chemical exposure, mechanical load and installation method.
Recommended use temperature	Recommended for -20 C to +80 C mounting environments; select stainless steel or a specialized coating for sustained higher temperatures or corrosive exposure.
Packing and carton reference	20 pcs per bundle; 200 pcs per double-wall export carton
Standard MOQ	100 pcs
Custom MOQ	500 pcs
Sample policy	USD 20-40 plus freight for a drawing-based sample
Production cycle	Stock: 7 days; drawing-based production: 15-20 days
Available test and inspection files	Dimensional inspection record, material declaration, finish reference photo and packing list.
Typical purchasing teams	Equipment fabricators, maintenance contractors, industrial distributors and OEM assemblers.

Ready Stock & Standard Sizes

Available Stock Specifications

The following specifications are available for quotation. MOQ and lead time are listed by standard size and custom requirement.

Request Stock Quote

SKU / Model	Size	Available Specification	Material	MOQ	Lead Time	Quotation Note
CMB-GS-100-3MM	100 x 100 x 100 mm, 3.0 mm thickness	L-shaped galvanized metal bracket with reinforced gussets and multiple mounting holes	Galvanized steel	Based on size, material, finish, and order quantity	Standard items: confirm before order; custom production lead time depends on drawing, material, and quantity	Standard reference size based on product image; hole pattern and finish can be customized

Note: MOQ and lead time are based on the listed size, order quantity and packing requirement.

Send specification for quotation ->

Applications

Typical Applications

Equipment mounting
panel support
aluminum profile frames
machine guards
industrial fabrication
structural fixing

Customization Options

Size / Material / Color / Packaging / Logo

Send Requirement ->

Custom programme: Thickness, hole pattern, slot shape, bend angle, surface finish, size, packaging. Size and tolerance reference: Standard reference: 100 x 100 x 100 mm, 3.0 mm thickness; custom sizes available. Typical formed-part tolerance: +/-0.3 mm; hole position tolerance: +/-0.2 mm. Packing and production reference: 20 pcs per bundle; 200 pcs per double-wall export carton Stock: 7 days; drawing-based production: 15-20 days

Size Standard reference: 100 x 100 x 100 mm, 3.0 mm thickness, custom sizes available
Material Galvanized steel
Color Silver gray; custom finish colors available with coating
Packaging Carton packing, bulk packing or export packing can be discussed by order requirement.
Logo Logo, label or buyer mark can be discussed by order requirement

FAQ

Frequently Asked Questions

Can the bracket size and hole pattern be customized?

Yes. Size, thickness, bend angle, hole diameter, slot shape, and hole position can be adjusted according to drawings or samples.

What files are needed for a custom quotation?

A 2D drawing, 3D file, sample photo, or detailed dimensions are helpful. Please include material, thickness, finish, and quantity requirements.

Is there a standard stock option available?

Yes. A common 100 x 100 x 100 mm galvanized steel bracket with 3.0 mm thickness can be used as a reference stock option.

Can you support bulk orders and custom packaging?

Bulk supply and custom packaging can be discussed based on order quantity, bracket size, and export packing requirements.

What surface finishes are available?

Common finish options include galvanized, zinc plated, powder coated, polished, or plain steel finish, depending on the application.

What are the standard and custom order quantities for Custom Galvanized Metal Bracket?

Standard MOQ: 100 pcs. Custom MOQ: 500 pcs. Stock: 7 days; drawing-based production: 15-20 days.

What packing and technical files can be supplied with Custom Galvanized Metal Bracket?

20 pcs per bundle; 200 pcs per double-wall export carton Available files include: Dimensional inspection record, material declaration, finish reference photo and packing list.
