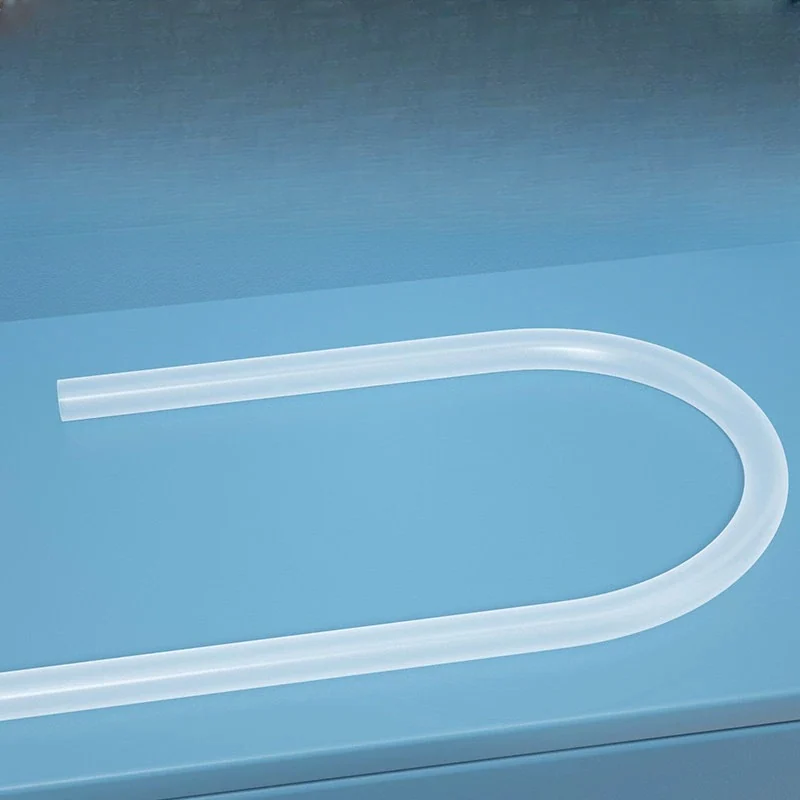

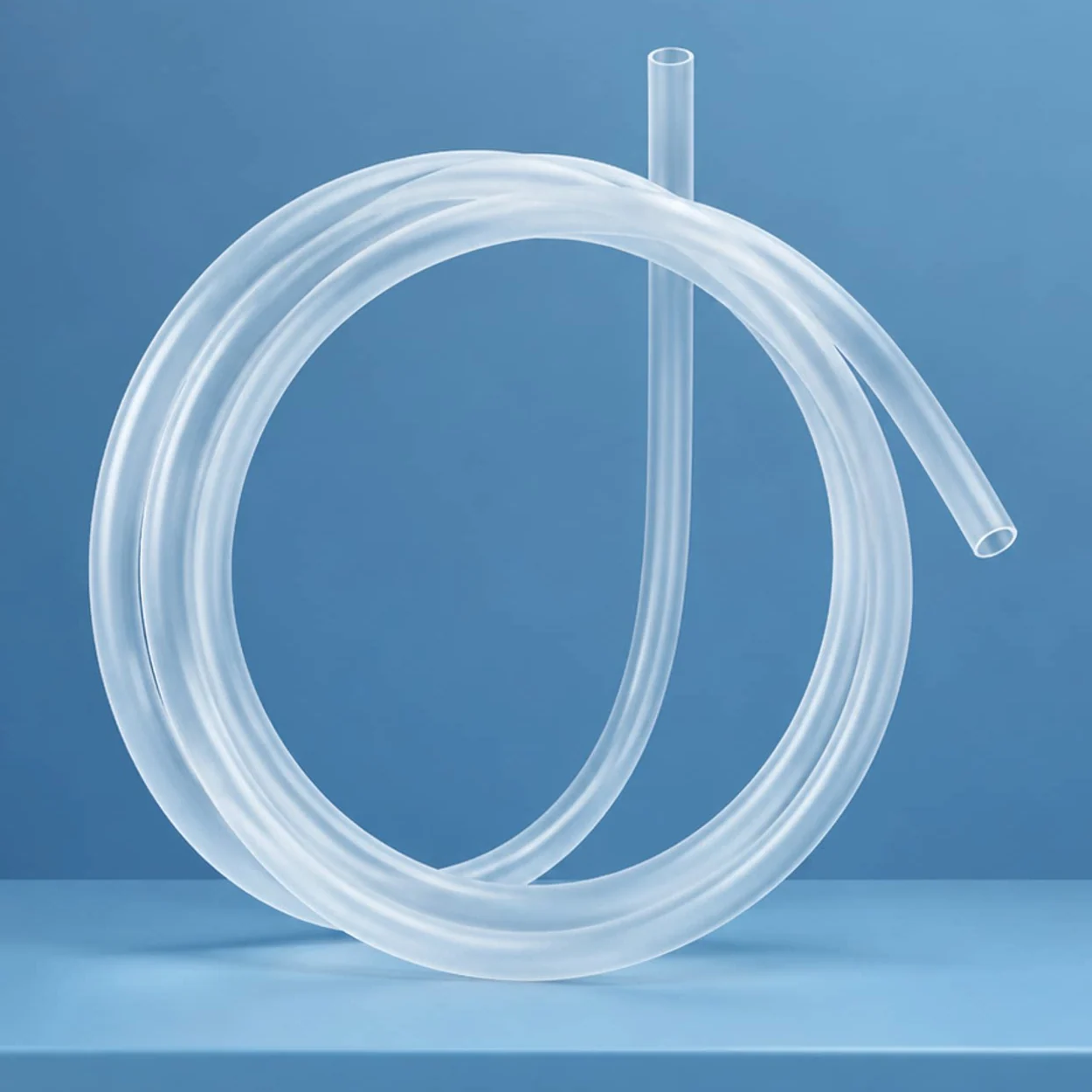

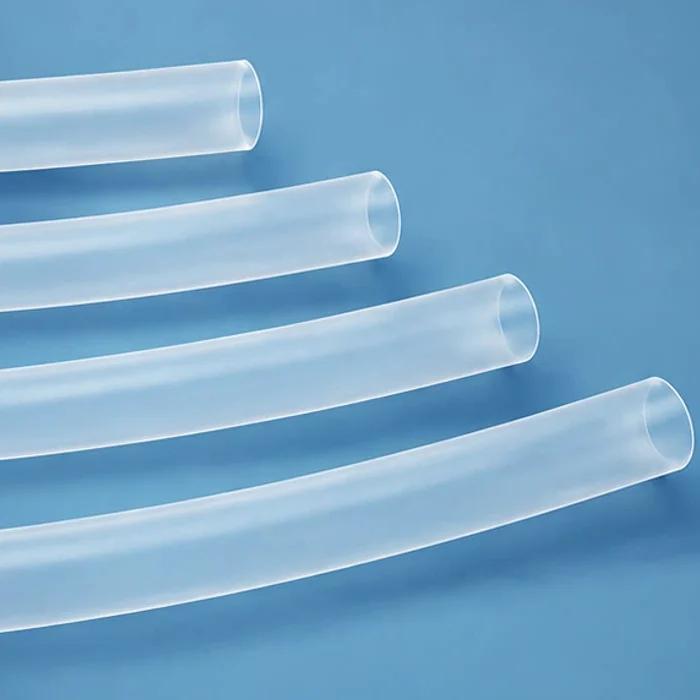

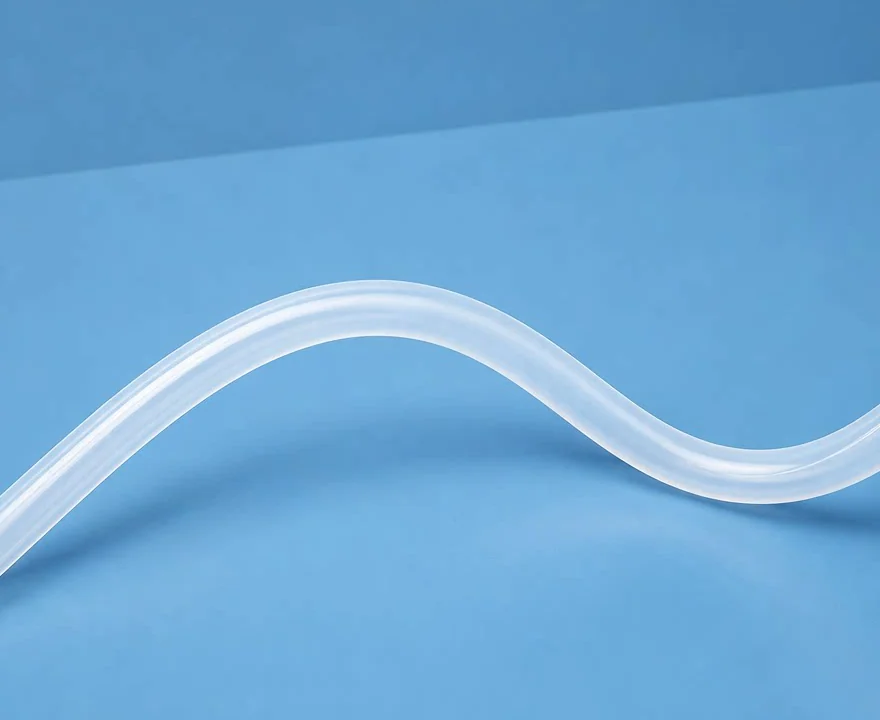

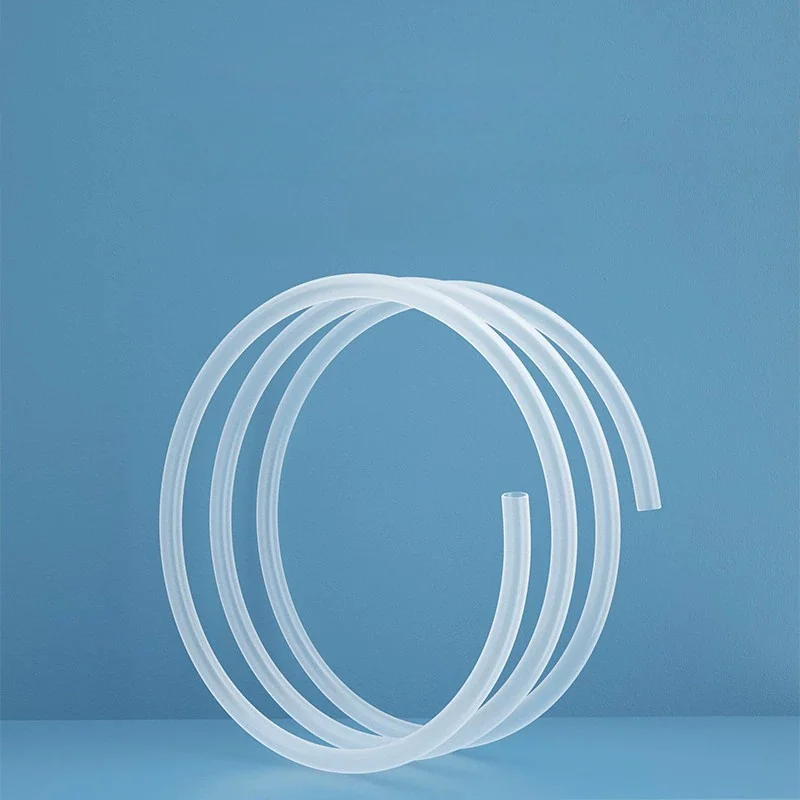

Clear PFA Process Tubing

Clear PFA tubing in small-bore and larger metric sizes for chemical-facing process lines and laboratory connections.

  • Transparent PFA construction
  • Paired ID and OD sizes
  • Small-bore through larger process formats
Request a Quote -> Custom Size ->
Product Overview

Clear PFA Process Tubing Supplier

PFA combines a visible flow path with fluoropolymer chemical resistance. Line design still depends on wall thickness, fitting type, temperature and pressure. Select the ID and OD together, keep bends within the line's routing needs and support long runs to reduce load at connection points.

Technical Specifications

Product Parameters

Material and construction PFA fluoropolymer
Standard formats ID 0.8 mm OD 1.6 mm × 5 m; ID 1.6 mm OD 3.2 mm × 5 m; ID 2.5 mm OD 4 mm × 5 m; 63 listed formats
Ordering model HT-039
Price Request a Quote
Construction options Transparent PFA construction; Paired ID and OD sizes; Small-bore through larger process formats
MOQ Quoted by the selected supply unit and quantity
Packaging Coils or matched sets protected against sharp bends and packed in cartons.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-039-P001 ID 0.8 mm OD 1.6 mm × 5 m PFA fluoropolymer Roll / cut length Request a Quote
HT-039-P002 ID 1.6 mm OD 3.2 mm × 5 m PFA fluoropolymer Roll / cut length Request a Quote
HT-039-P003 ID 2.5 mm OD 4 mm × 5 m PFA fluoropolymer Roll / cut length Request a Quote
HT-039-P004 ID 3 mm OD 4 mm × 5 m PFA fluoropolymer Roll / cut length Request a Quote
HT-039-P005 ID 3.96 mm × OD 6.35 mm × 5 m PFA fluoropolymer Roll / cut length Request a Quote
HT-039-P006 ID 4 mm OD 5 mm × 5 m PFA fluoropolymer Roll / cut length Request a Quote
HT-039-P007 ID 4.35 mm OD 6.35 mm × 5 m PFA fluoropolymer Roll / cut length Request a Quote
HT-039-P008 ID 5 mm OD 6 mm × 5 m PFA fluoropolymer Roll / cut length Request a Quote
HT-039-P009 ID 6 mm OD 7 mm × 5 m PFA fluoropolymer Roll / cut length Request a Quote
HT-039-P010 ID 7 mm OD 8 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P011 ID 8 mm OD 9 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P012 ID 9 mm OD 10 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P013 ID 10 mm OD 11 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P014 ID 11 mm OD 12 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P015 ID 12 mm OD 13 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P016 ID 13 mm OD 14 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P017 ID 14 mm OD 15 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P018 ID 15 mm OD 16 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P019 ID 16 mm OD 17 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P020 ID 2 mm OD 4 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P021 ID 3 mm OD 5 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P022 ID 3 mm OD 6 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P023 ID 4 mm OD 6 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P024 ID 5 mm OD 7 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P025 ID 5 mm OD 8 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P026 ID 6 mm OD 8 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P027 ID 6 mm OD 9 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P028 ID 7 mm OD 9 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P029 ID 7 mm OD 10 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P030 ID 7 mm OD 11 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P031 ID 8 mm OD 10 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P032 ID 8 mm OD 11 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P033 ID 8 mm OD 12 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P034 ID 9 mm OD 11 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P035 ID 9 mm OD 12 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P036 ID 10 mm OD 12 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P037 ID 10 mm OD 13 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P038 ID 11 mm OD 13 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P039 ID 12 mm OD 14 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P040 ID 12 mm OD 15 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P041 ID 13 mm OD 16 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P042 ID 14 mm OD 16 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P043 ID 15 mm OD 18 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P044 ID 25 mm OD 28 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P045 ID 25 mm OD 29 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P046 ID 6 mm OD 10 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P047 ID 10 mm OD 14 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P048 ID 12 mm OD 16 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P049 ID 16 mm OD 18 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P050 ID 16 mm OD 19 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P051 ID 17 mm OD 19 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P052 ID 16 mm OD 20 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P053 ID 18 mm OD 20 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P054 ID 19 mm OD 21 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P055 ID 19 mm OD 22 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P056 ID 20 mm OD 22 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P057 ID 20 mm OD 23 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P058 ID 22 mm OD 24 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P059 ID 22 mm OD 25 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P060 ID 24 mm OD 26 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P061 ID 25 mm OD 27 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P062 ID 26 mm OD 28 mm PFA fluoropolymer Coil / cut length Request a Quote
HT-039-P063 ID 28 mm × OD 30 mm PFA fluoropolymer Coil / cut length Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Chemical process connections
  • Laboratory flow lines
  • Visible sampling circuits
Customization Options

Clear PFA Process Tubing Ordering Options

Send Requirement ->

For Clear PFA Process Tubing, specify inside diameter, outside diameter where applicable, cut length and connection layout.

  • Dimensions and construction Specify inside diameter, outside diameter where applicable, cut length and connection layout.
  • Material PFA fluoropolymer
  • Supply and packing Coils or matched sets protected against sharp bends and packed in cartons.
FAQ

Frequently Asked Questions

Which diameter pairs are listed for clear PFA tubing?

The table spans small pairs such as ID 0.8 × OD 1.6 mm and larger pairs such as ID 28 × OD 30 mm. Multiple outside diameters are listed for some inside diameters; for example, ID 6 mm has several distinct OD entries.

Is a 5 m length specified for every PFA tube size?

No. Some small-bore entries explicitly state 5 m, while many other entries state only ID and OD. Include the required supply length when choosing an entry that does not specify it.

What material is used for Clear PFA Process Tubing?

The specified material is PFA fluoropolymer.

What should I include in a quotation request?

For model HT-039, send the selected SKU and order quantity. Include paired inside and outside diameters and required supply length. Pricing is by quotation for the selected specification and quantity.
