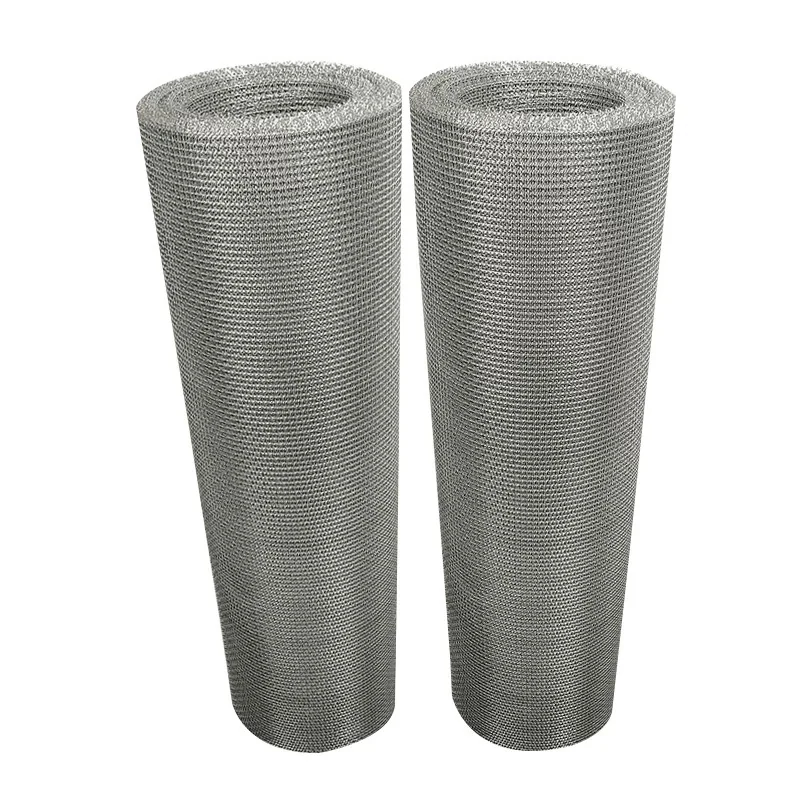

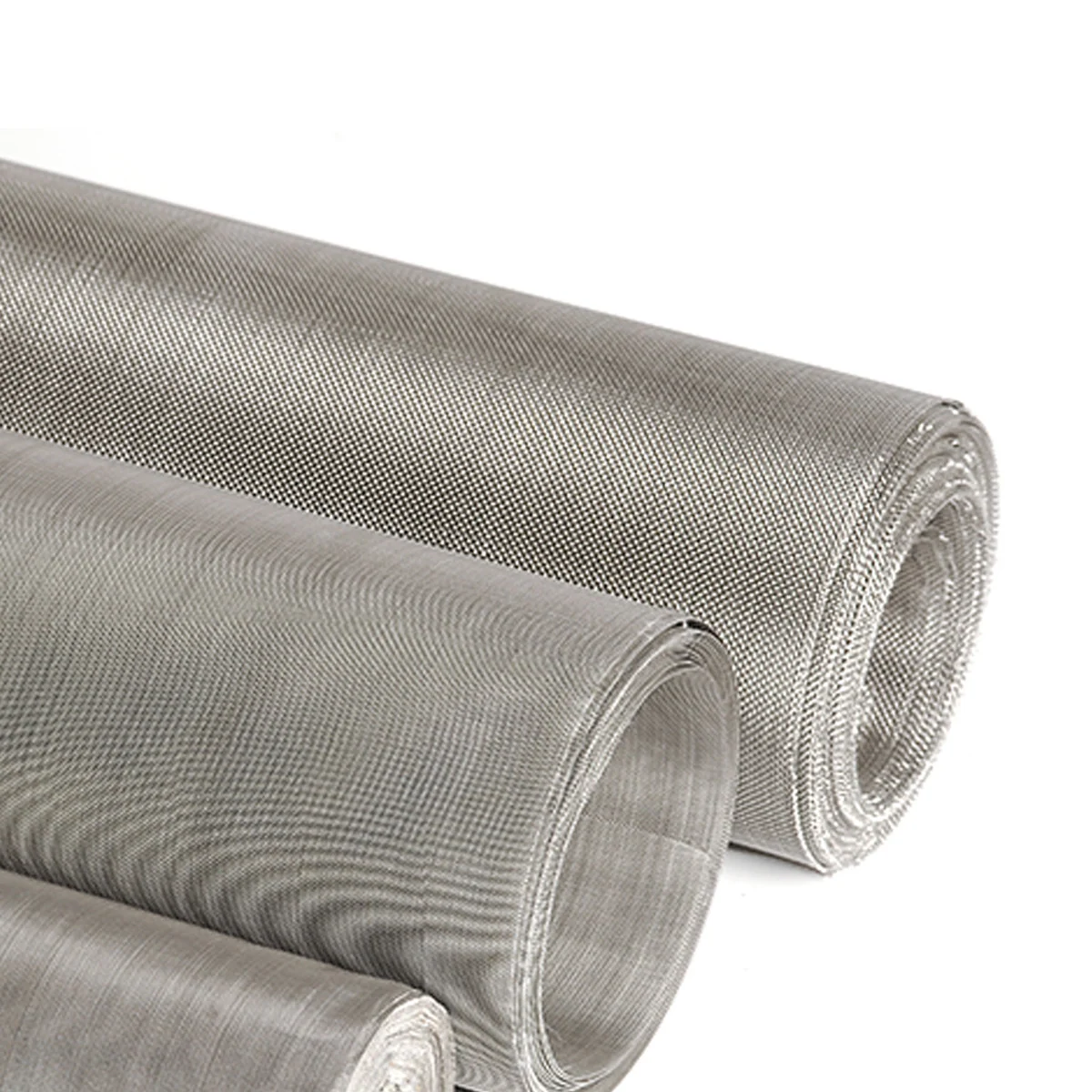

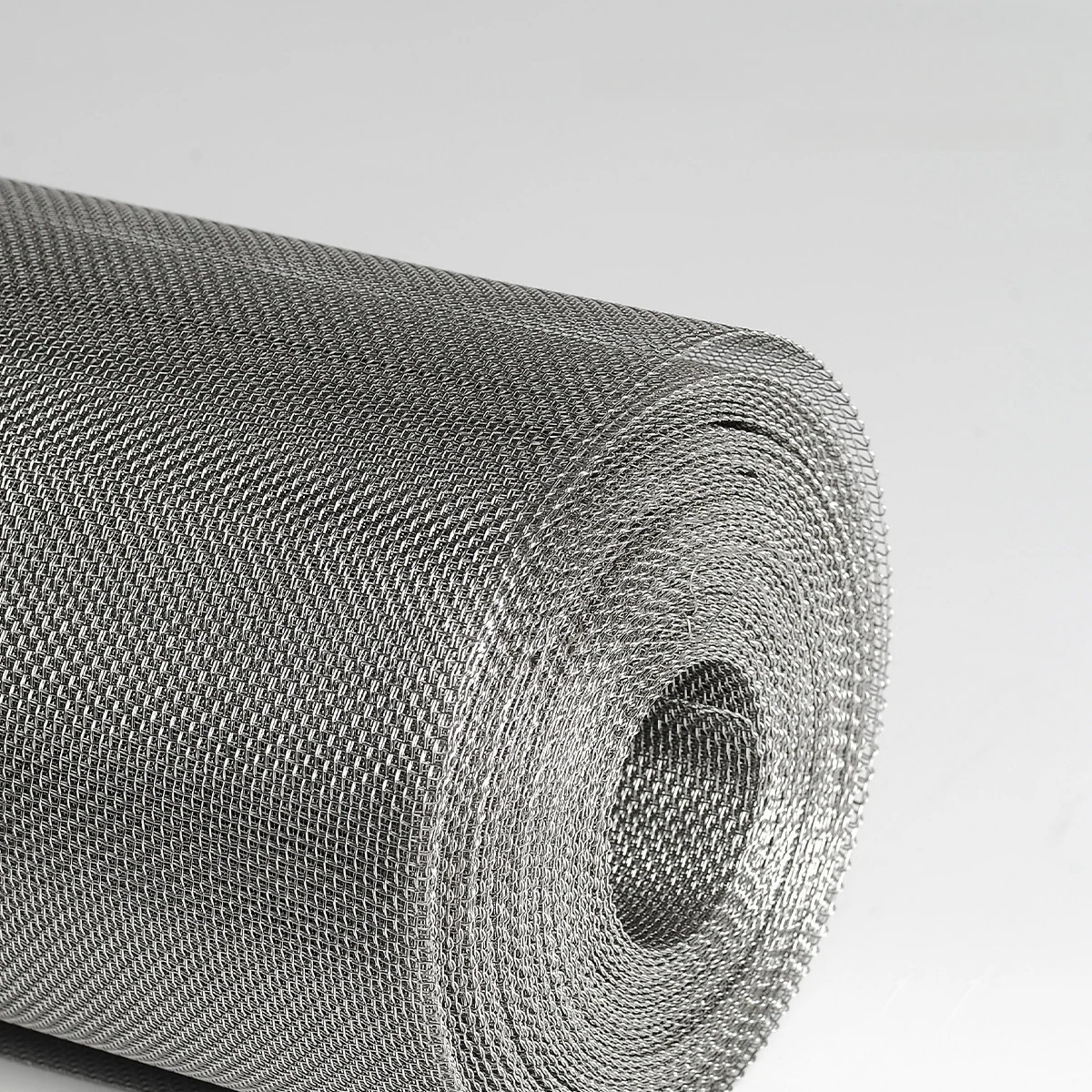

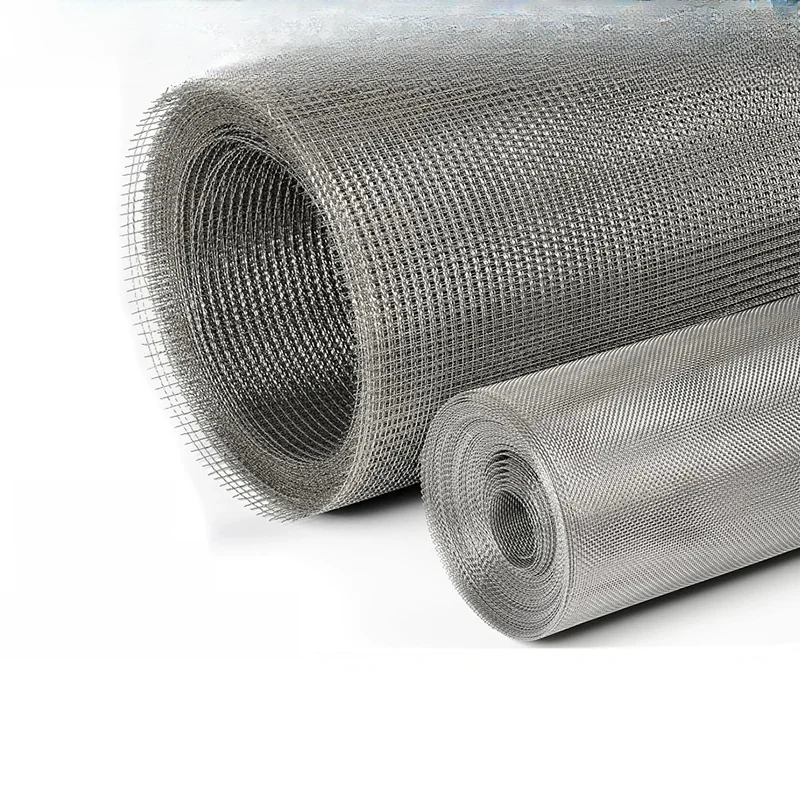

304 Stainless Steel Coarse Screening Mesh

Coarse 304 stainless screening mesh with defined mesh counts and wire diameters for guards, support grids and robust strainers.

  • 1–18 mesh listed options
  • Wire diameters stated by SKU
  • 1 m × 1 m screening panels
Request a Quote -> Custom Size ->
Product Overview

304 Stainless Steel Coarse Screening Mesh Supplier

Unlike a fine filtration cloth, this coarse weave is selected for larger openings and mechanical support. Each listed count has a wire diameter and 1 m-square supply format. A heavier wire reduces open area at the same count, so check both dimensions when replacing a screen.

Technical Specifications

Product Parameters

Material and construction 304 stainless steel wire
Standard formats 304 1 mesh, heavy wire Wire diameter 2 mm × 1 m width × 1 m length; 304 1 mesh Wire diameter 1.5 mm × 1 m width × 1 m length; 304 2 mesh, heavy wire Wire diameter 1.5 mm × 1 m width × 1 m length; 23 listed formats
Ordering model HT-013
Price Request a Quote
Construction options 1–18 mesh listed options; Wire diameters stated by SKU; 1 m × 1 m screening panels
MOQ Quoted by the selected supply unit and quantity

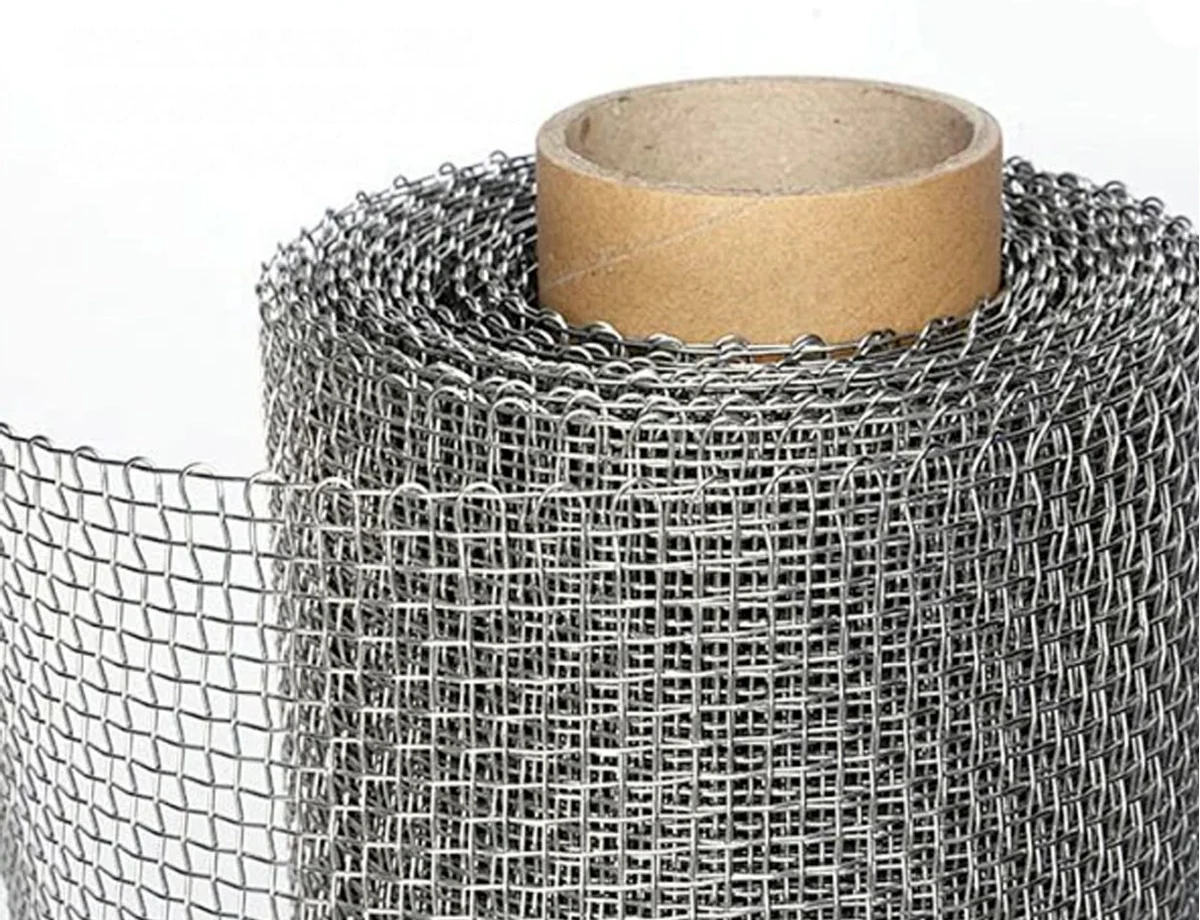

Packaging Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-013-P001 304 1 mesh, heavy wire Wire diameter 2 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote
HT-013-P002 304 1 mesh Wire diameter 1.5 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote
HT-013-P003 304 2 mesh, heavy wire Wire diameter 1.5 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote
HT-013-P004 304 2 mesh Wire diameter 1 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote
HT-013-P005 304 3 mesh, heavy wire Wire diameter 1 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote
HT-013-P006 304 3 mesh Wire diameter 0.8 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote
HT-013-P007 304 4 mesh, heavy wire Wire diameter 1 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote
HT-013-P008 304 4 mesh Wire diameter 0.7 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote
HT-013-P009 304 5 mesh, heavy wire Wire diameter 0.7 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote
HT-013-P010 304 5 mesh Wire diameter 0.7 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote
HT-013-P011 304 6 mesh, heavy wire Wire diameter 1 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote
HT-013-P012 304 6 mesh Wire diameter 0.7 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote
HT-013-P013 304 8 mesh, heavy wire Wire diameter 0.9 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote
HT-013-P014 304 8 mesh Wire diameter 0.6 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote
HT-013-P015 304 10 mesh, heavy wire Wire diameter 0.7 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote
HT-013-P016 304 10 mesh Wire diameter 0.5 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote
HT-013-P017 304 12 mesh, heavy wire Wire diameter 0.6 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote
HT-013-P018 304 12 mesh Wire diameter 0.4 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote
HT-013-P019 304 14 mesh, heavy wire Wire diameter 0.55 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote
HT-013-P020 304 14 mesh Wire diameter 0.4 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote
HT-013-P021 304 16 mesh, heavy wire Wire diameter 0.5 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote
HT-013-P022 304 16 mesh Wire diameter 0.3 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote
HT-013-P023 304 18 mesh, heavy wire Wire diameter 0.4 mm × 1 m width × 1 m length 304 stainless steel wire Roll / cut length Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Machine protection screens
  • Coarse liquid strainers
  • Filter support grids
Customization Options

304 Stainless Steel Coarse Screening Mesh Ordering Options

Send Requirement ->

For 304 Stainless Steel Coarse Screening Mesh, specify mesh count or opening, wire or yarn diameter, panel dimensions and edge finish.

  • Dimensions and construction Specify mesh count or opening, wire or yarn diameter, panel dimensions and edge finish.
  • Material 304 stainless steel wire
  • Supply and packing Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
FAQ

Frequently Asked Questions

What panel size and mesh-count range are listed for 304 screening mesh?

The listed screening panels are 1 m wide × 1 m long, with discrete counts from 1 to 18 mesh. Each entry also states a wire diameter; use both the mesh count and wire diameter when selecting a panel.

Can two listed panels have the same mesh count but different wire diameters?

Yes. For example, the 4-mesh entries list 1 mm wire and 0.7 mm wire. The 1-mesh entries list 2 mm and 1.5 mm wire. Mesh count alone does not identify the exact SKU.

What material is used for 304 Stainless Steel Coarse Screening Mesh?

The specified material is 304 stainless steel wire.

What should I include in a quotation request?

For model HT-013, send the selected SKU and order quantity. Include mesh count, wire diameter and panel dimensions. Pricing is by quotation for the selected specification and quantity.
